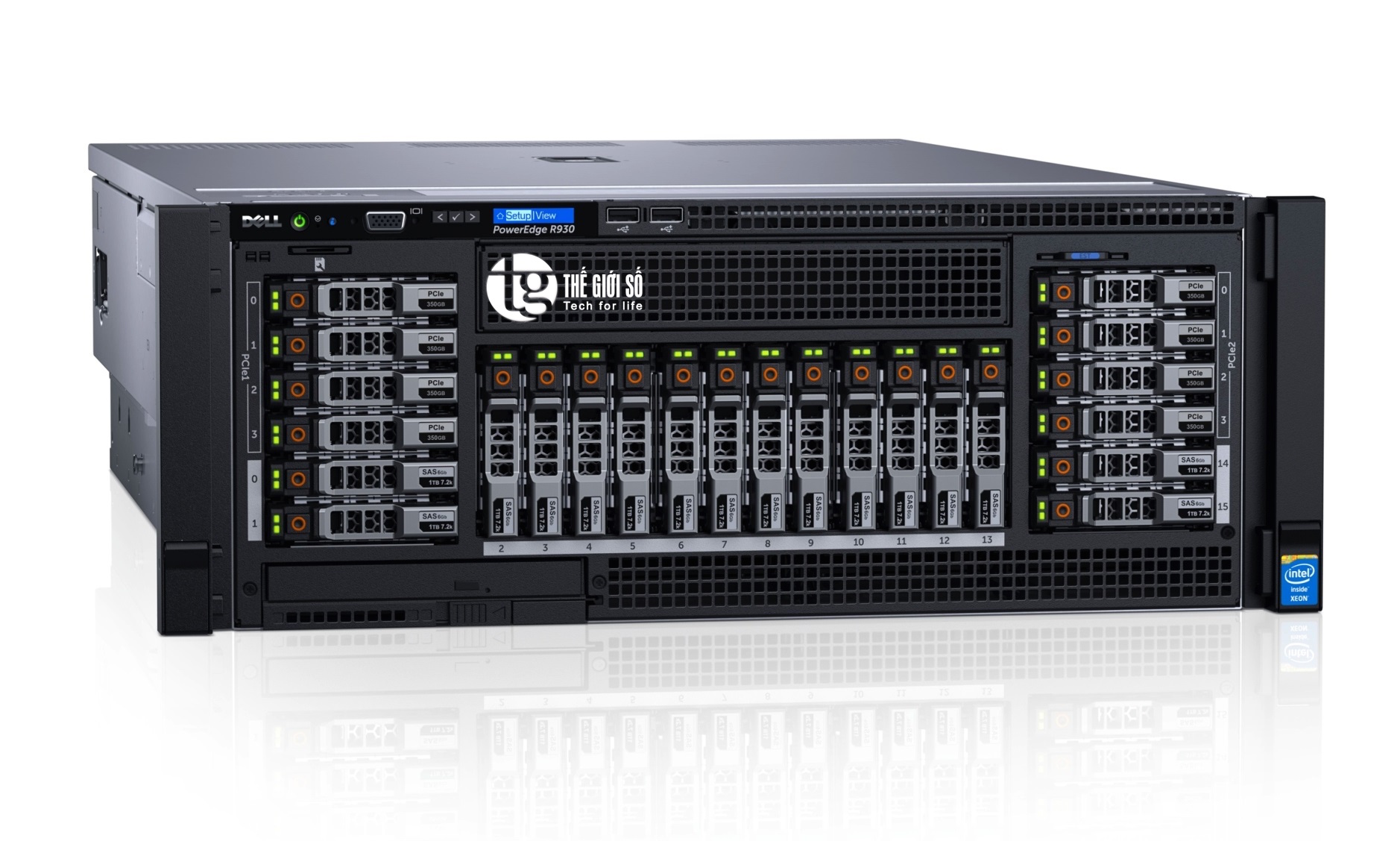

SERVER DELL POWEREDGE R930 E7-4809 V3 (2.0GHz,20M Cache)


Số lượng:
Giá bán: 0 VND

SERVER DELL POWEREDGE R930 E7-4809 v3 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE R930 E7-4809 v3

MÁY CHỦ SERVER DELL POWEREDGE R930 E7-4809 v3

  • 2x Intel® Xeon® E7-4809 v3 2.0GHz,20M Cache,6.4GT/s QPI,No Turbo,HT,8C/16T (115W) Max Mem 1867 MHz
  • 16GB ( 2 x 8GB ) RDIMM, 2133MT/s, Dual Rank, x8 Data Width
  • Hard Drive : None 2.5-inch
  • RAID PERC H730 Adapter RAID Controller, 1Gb NV Cache  ( RAID 0,1,5,6,10,50,60 )
  • Broadcom 5720 Quad Port 1Gb Network Daughter Card
  • iDRAC8 Express, integrated Dell Remote Access Controller, Express
  • 24 x 2.5” hot-plug 12Gb/6Gb SAS HDD or SAS/SATA SSD
  • 1+1 Power Supply Hot-plug redundant 750W
  • Rack 4U, Dell Friction Rail Kit
  • Warranty : 3 Year ProSupport and NBD On-site Service

Processor

  • Intel® Xeon® Processor E7-8800 Product Family
    Intel® Xeon® Processor E7-4800 Product Family

Operating System

  • Microsoft® Windows Server® 2008 R2
    Microsoft Windows Server 2012
    Microsoft Windows Server 2012 R2
    Novell® SUSE® Linux Enterprise Server
    Red Hat® Enterprise Linux
    VMware® ESX®

Chipset

  • Intel® C602J

Memory1

  • (96 DIMMs): 8GB/16GB/32GB DDR4 RDIMM, LRDIMM up to 1866MT/s

Storage

  • 2.5” SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)
    2.5” Dell PowerEdge NVMe Express Flash PCIe SSD

Drive Bays

  • Up to 24 x 2.5” hot-plug 12Gb/6Gb SAS HDD or SAS/SATA SSD
    Up to 8 front-accessible Express Flash NVMe PCIe SSD (PCIe 3.0)

Slots

  • Up to 10 PCIe 3.0 slots
    1 RAID slot
    1 NDC slot

RAID Controllers

  • Internal controllers: PERC H330, PERC H730P
    External HBAs (RAID): PERC H830
    External HBAs (non-RAID): 12Gbps SAS HBA

Communications

  • Embedded NICs:
    Broadcom® 5720 quad-port 1Gb NDC
    Broadcom® 57800 2x10Gb DA/SFP+ + 2x1Gb BT NDC
    Broadcom® 57800 2x10Gb BT + 2x1Gb BT NDC
    Broadcom® 57840S quad-port 10Gb SFP+ Direct Attach Rack NDC
    Intel® I350 quad-port 1GbE NDC
    Intel® X520 dual-port 10Gb DA/SFP+, + I350 DP 1GbE, NDC
    Intel® X540 10GbE BT dual-port + I350 1Gb BT DP NDC

Power

  • Hot-plug redundant PSUs: 750W AC, 1100W AC

Availability

  • Hot-plug hard drives, hot-plug redundant power, hot-plug redundant fans, ECC memory, internal dual SD module

Graphics Card

  • Matrox® G200 with 8MB memory

Chassis

  • Rack 4U

Management

  • iDRAC8 with Lifecycle Controller
    iDRAC8 Express (default)
    iDRAC8 Enterprise (upgrade option)
    8GB or 16GB vFlash media (upgrade options)
    IPMI 2.0 compliant
    Dell OpenManage Essentials
    Dell OpenManage Mobile
    Dell OpenManage Power Center

    Dell OpenManage Integrations:
    Dell OpenManage Integration Suite for Microsoft System Center
    Dell OpenManage Integration for VMware® vCenter

    Dell OpenManage Connections:
    HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
    Dell OpenManage Plug-in for Oracle Database Manager

Rack Support

  • ReadyRails® II, the sliding rail system for the R930, provides tool-less support for 4-post racks with square or unthreaded round mounting holes, including all generations of Dell racks. The sliding rail system also supports tooled mounting in 4-post threaded racks

Dimensions

  • H: 6.8” (172.6mm)
    W: 18.99” (482.4mm)
    D: 31.59” (802.3mm) with PSU and bezel
    D: 31.01” (787.7mm) with PSU and without bezel
