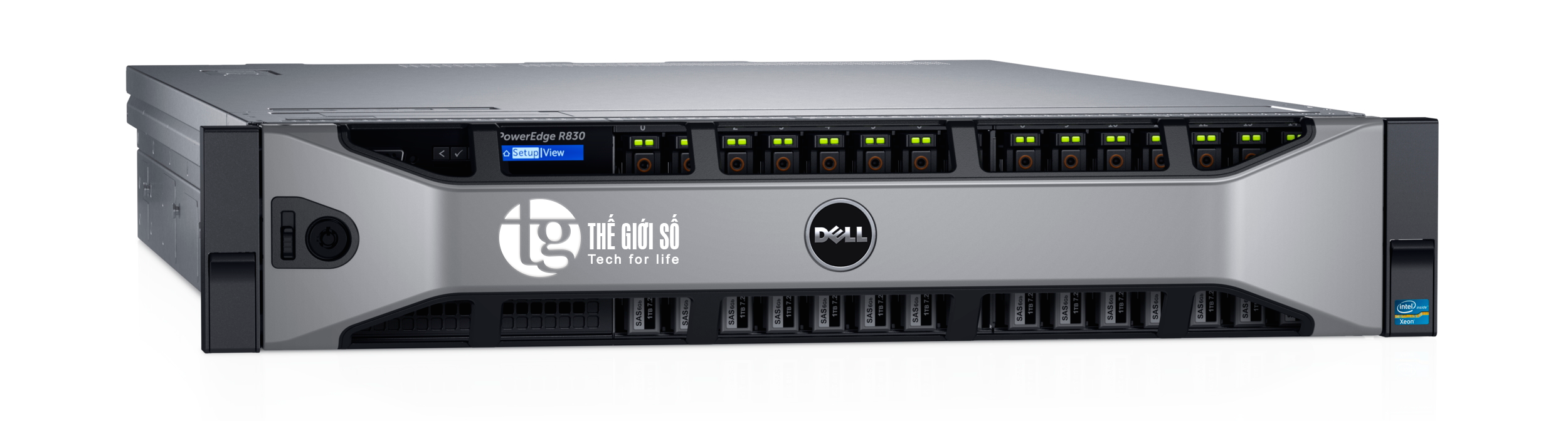

SERVER DELL POWEREDGE R830 E5-4610v4 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ
KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE R830 E5-4610v4 1.8GHz, 25MB Cache
Processor : 2x Intel® Xeon® Broadwell E5-4610 v4 1.8GHz, 25MB Cache,6.4 GT/s QPI,
No Turbo,HT,10C/20T (105W) Max Mem 1866 MHz
Memory : 16 GB (2x 8GB DDR4-2400 PC4 1Rx8 19200 ECC RDIMMs)
Network Controller: Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Raid: Dell™ PERC H330 Integrated RAID Controller 1GB Cache Hardware RAID 0,1,5,6,10,50,60
Storages: 1x 120GB Solid State Drive SATA Boot MLC 6Gbps 2.5in Hot-plug Drive
Non HDD, Up to 16 tradition HDD 2.5" or SSD/SATA/SAS Enterprise
Power : Single, Hot-plug, Redundant Power Supply (1+0), 750W
Form Factor: Rack 2U
Optical: option
Generation 13th Server Dell PowerEdge R830 HDD 2.5"
Processor |
Intel® Xeon® processor E5-4600 v4 product family |
Form Factor |
Rack 2U, chassis 2.5" |
Operating System |
Microsoft Windows Server® 2012 R2 |
Chipset |
Intel® C612 |
Memory |
(48 DIMM slots): 8GB/16GB/32GB/64GB DDR4, RDIMM, LRDIMM up 2400MT/s |
Drive Bays |
Up to 16 x 2.5”: SAS, SATA, Near-line SAS SSD |
Storage |
16 x 2.5” SATA/SAS SSD |
Slots |
7 PCIe slots: 2 x16 half-length, full-height 1 x8 half-length, full-height 3 x8 half-length, half-height 1 x8 half-length, full-height for the RAID controller |
Communications |
Supported Select Network Adapters (NDC): |
RAID Controllers |
Internal controllers: PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA |
Embedded NIC |
4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb |
Power |
1600W AC, 86 mm (Platinum) |
Management |
Systems management: IPMI 2.0 compliant Dell OpenManage Essentials Dell OpenManage Mobile Dell OpenManage Power Center Remote management: iDRAC8 with Lifecycle Controller iDRAC8 Express (default) iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade) 16GB vFlash media (upgrade) iDRAC Quick Sync Dell OpenManage Integrations: Dell OpenManage Integration Suite for Microsoft® System Center Dell OpenManage Integration for VMware® vCenter™ Dell OpenManage Connections: HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management Dell OpenManage Plug-in for Oracle® Database Manager |
Dimension |
H: 14.17 in (36.0 cm) W: 6.89 in (17.5 cm) D: 17.12 in (43.5 cm |
