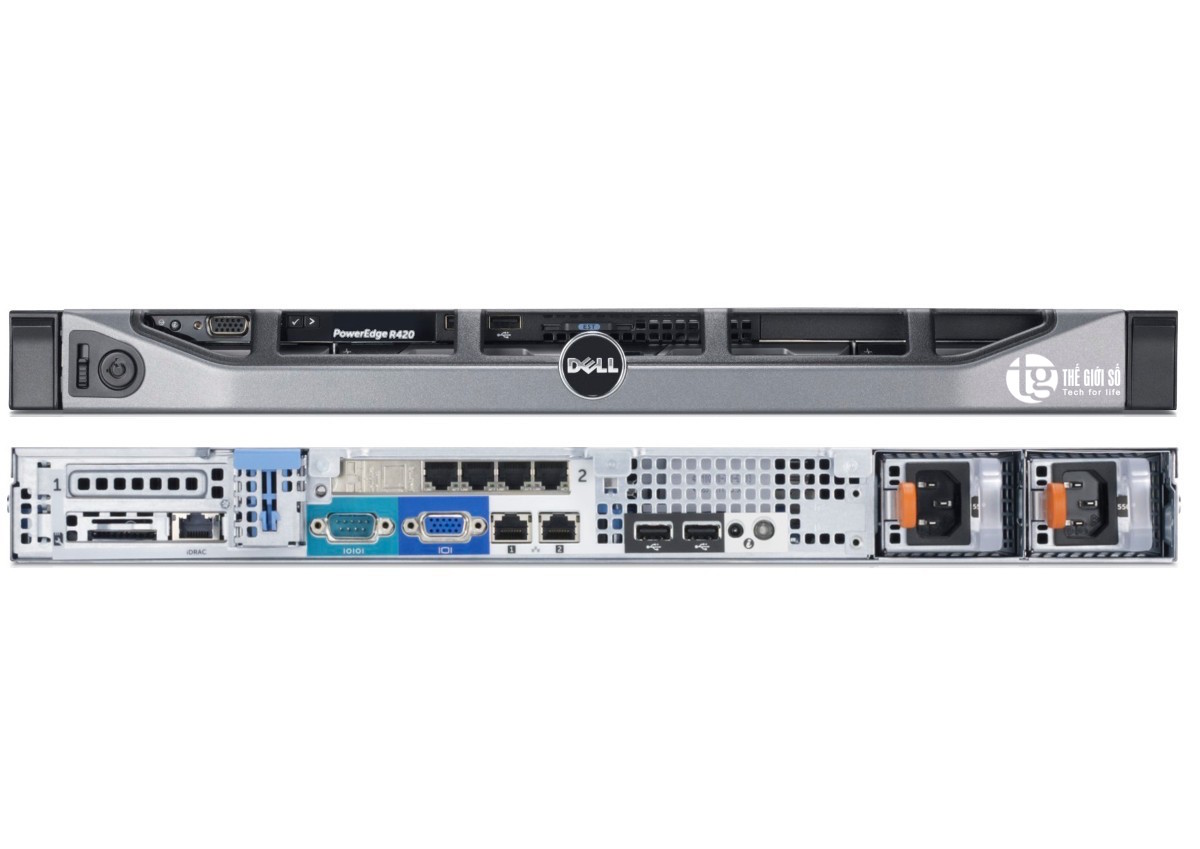

SERVER DELL POWEREDGE R420 - E5-2407V2 2.4GHz, 10M Cache, 6.4GT/s QPI
SERVER DELL POWEREDGE R420 - E5-2407v2 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ tại Việt Máy Chủ
KEY FEATURES MÁY CHỦ DELL POWEREDGE R420 - E5-2407v2
* 1 x 8GB DDR3 1333 240-Pin DDR3 ECC RDIMMs (PC3 10600)
* Non x 8 HDD SSD/SATA/SAS Enterprise 2.5"
* Dell™ PERC H310 RAID Controller SATA/SAS (Hardware RAID 0, 1, 5, 10, 50)
* Broadcom® 5720 Dual Port 1Gb Gigabit Ethernet
* 1 x Power Supply 550W
MÁY CHỦ DELL POWEREDGE R420 - E5-2407V2
Processor
- Intel® Xeon® processor E5-2400 and E5-2400 v2 product families
Processor sockets:
2
Internal interconnect:
Intel QuickPath Interconnect (QPI) link: 6.4GT/s; 7.2GT/s; 8.0 GT/s
Cache:
2.5MB per core; core options: 4, 6, 8, 10
Operating System
- Microsoft® Windows Server® 2012
Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
Virtualization options:
Citrix® XenServer®
VMware® vSphere® ESXi ™
Red Hat Enterprise Virtualization®
Chipset
- Intel C602
Memory1
- Up to 384GB (12 DIMM slots) 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s
Storage
- Maximum internal storage:
Up to 16TB
Hot-plug hard drive options:
2.5” SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD, SAS 512n (15K)
3.5” SATA, nearline SAS, SAS (15K)
Self-encrypting drives available
Cabled hard drive options:
3.5” SATA, nearline SAS, SAS (15K)
Drive Bays
- Up to eight 2.5” hot-plug SSD, SAS, or SATA or up to four 3.5” hot-plug SAS, SATA, or SSD
Slots
-
2 PCIe slots:
With two processors:
One x16 PCIe slot with x16 bandwidth, half-length, half-height
One x16 PCIe slot with x16 bandwidth, half-length, full-heightWith one processor:
One x8 PCIe slot with x4 bandwidth, half-length, half-height
One x16 PCIe slot with x16 bandwidth, half-length, full-height
Network Controller
-
Embedded NIC:
Broadcom® 5720 Dual Port 1Gb LOMI/O adapter options:
1Gb Ethernet:
Broadcom 5720 Dual Port 1Gb NIC
Broadcom 5719 Quad Port 1Gb NIC
Intel I350 Dual Port 1Gb stand-up adapter
Intel I350 Quad Port 1Gb stand-up adapter10Gb Converged Ethernet:
Brocade® BR1020 Dual Port 10Gb CNA
QLogic® QLE8262 Dual Port 10Gb DA/SFP+
Broadcom 57810S Dual Port 10Gb Base-T CNA
Broadcom 57810S Dual Port 10Gb DA/SFP+ CNA10Gb Ethernet:
Intel X520 Dual Port 10Gb DA/SFP+ server adapter
Intel X540 Dual Port 10Gb Base-T adapterFC8/FC4 HBA:
QLogic QLE2460 4Gb Single Port FC HBA
QLogic QLE2462 4Gb Dual Port FC HBA
QLogic QLE2560 8Gb Single Port FC HBA
QLogic QLE2562 8Gb Dual Port FC HBA
Emulex® LPe-12000-E 8Gb Single Port FC HBA
Emulex LPe-12002-E 8Gb Dual Port FC HBA
Brocade 815 8Gb Single Port FC HBA
Brocade 825 8Gb Dual Port FC HBA
Power
- Platinum efficiency 550W and 350W power supplies
Silver efficiency cabled 550W power supply
Auto-ranging power supplies
Availability
- High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support; fan fault tolerance; optional bezel; luggage tag; ECC memory, interactive LCD screen; ENERGY STAR® compliant
Chassis
- Form factor:
1U rack
Management
- Remote management:
Basic management (default)
iDRAC7 with Lifecycle Controller
iDRAC7 Express (upgrade), iDRAC7 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
Systems management:
IPMI 2.0 compliant
Dell OpenManage™ Essentials and Dell Management Console
Dell OpenManage Power Center
Dell OpenManage Connections:
OpenManage Integration Suite for Microsoft® System Center
Dell plug-in for VMware® vCenter™
HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
Rack Support
- ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm
ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks
RAID
- Internal controllers:
PERC S110 (SW RAID)
PERC H310
PERC H710
PERC H710P
External HBAs (RAID):
PERC H810
External HBAs (non RAID):
6Gbps SAS HBA
