Máy chủ Dell PowerEdge R740 Silver 4112 HDD 3.5


Số lượng:
Giá bán: 0 VND

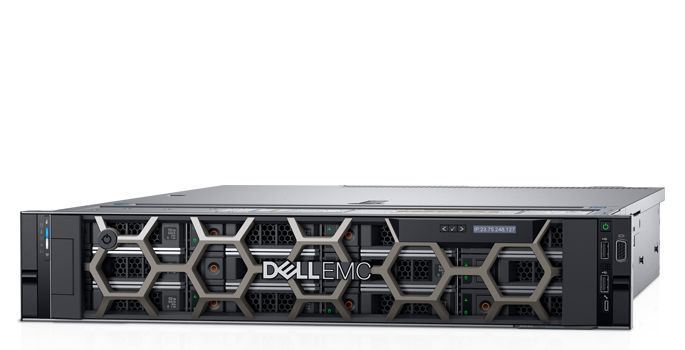

Máy chủ Dell PowerEdge R740 3.5" Silver 4112

  • (1) Intel® Xeon® Silver 4112 2.6G, 4C/8T, 9.6GT/s 2UPI, 8.25M Cache, Turbo, HT (85W) DDR4-2400
  • 16GB RDIMM, 2666MT/s, Dual Rank
  • Hard Drive : None 3.5”
  • PERC H730P RAID Controller, 12Gb/s SAS, 2Gb NV Cache, Minicard (RAID 0,1,5,6,10,50,60)
  • Broadcom 5720 QP 1Gb Network Daughter Card
  • iDRAC9 Enterprise with OpenManage Essentials, Server Configuration Management
  • 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD Hot-plug
  • Slim 8X DVD+/-RW Internal Drive
  • Dual, Hot-plug, Redundant Power Supply (1+1), 750W
  • NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord
  • Rack: Server 2U, ReadyRails™ Sliding Rails With Cable Management Arm
  • Warranty : 3 Year ProSupport and NBD On-site Service

Processor

  • Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor

Operating System

  • Canonical® Ubuntu® LTS Citrix® XenServer®
    Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux
    SUSE® Linux Enterprise Server VMware® ESXi

Memory1

  • 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max
    Up to 12 NVDIMM, 192 GB Max
    Supports registered ECC DDR4 DIMMs only

Drive Bays

  • Front drive bays:
    Up to 16 x 2.5” SAS/SATA/SSD, max 60TB
    Up to 8 x 3.5” SAS/SATA, max 80TB

Dimensions

  • Form factor:
    Rack (2U)

    Chassis depth:
    715.5 mm

Data Protection

  • TPM 1.2/2.0 optional Cryptographically signed firmware
    Secure Boot
    System Lockdown
    Secure erase

Ports

  • Network daughter card options:
    4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE

    Front ports:
    Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC

    Direct Micro-USB Rear ports:
    Video, serial, 2 x USB 3.0, dedicated iDRAC network port

    Video card:
    VGA

    PCIe:
    Up to 8 x Gen3 slots, Up to 4 x16

Chassis

  • Optional LCD or Security bezel

Power

  • Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W
    48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan)
    Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy High performance fans available

RAID Controllers

  • Internal controllers:
    PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140

    Boot Optimized Storage Subsystem:
    HWRAID 2 x M.2 SSDs 120GB, 240 GB

    External PERC (RAID):
    H840

    External HBAs (non-RAID):
    12 Gbps SAS HBA

Management

  • Embedded / At-the-Server
    iDRAC9 with Lifecycle Controller (Express, Enterprise)
    iDRAC Direct
    iDRAC REST API with Redfish
    Quick Sync 2 BLE/wireless module

    Consoles
    OpenManage Enterprise (coming soon)
    OpenManage Essentials
    OpenManage Power Center

    Mobility
    OpenManage Mobile

    Tools
    iDRAC Service Module
    OpenManage Server Administrator
    OpenManage Storage Services
    Dell EMC Repository Manager
    Dell EMC System Update
    Dell EMC Server Update Utility
    Dell EMC Update Catalogs

    OpenManage Integrations
    Microsoft® System Center
    VMware® vCenter™
    BMC software (available from BMC)

    OpenManage Connections
    Nagios Core and Nagios XI
    HPE Operations Manager i (OMi)
    IBM Tivoli® Netcool/OMNIbus (coming soon)
    IBM Tivoli® Network Manager IP Edition (coming soon)
