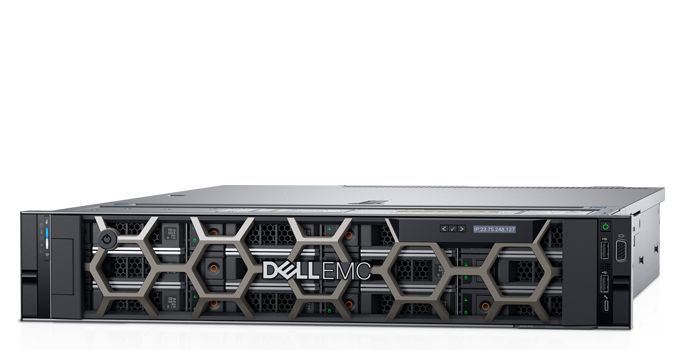

Máy chủ Dell PowerEdge R740 3.5" Gold 6146
- (1) Intel® Xeon® Gold 6146 3.2G,12C/24T,10.4GT/s 2UPI,24M Cache,Turbo,HT (165W) DDR4-2666
- 16GB RDIMM, 2666MT/s, Dual Rank
- Hard Drive : None 3.5”
- PERC H730P RAID Controller, 12Gb/s SAS, 2Gb NV Cache, Minicard (RAID 0,1,5,6,10,50,60)
- Broadcom 5720 QP 1Gb Network Daughter Card
- iDRAC9 Enterprise with OpenManage Essentials, Server Configuration Management
- 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD Hot-plug
- Slim 8X DVD+/-RW Internal Drive
- Dual, Hot-plug, Redundant Power Supply (1+1), 750W
- NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord
- Rack (2U), ReadyRails™ Sliding Rails With Cable Management Arm
- Warranty : 3 Year ProSupport and NBD On-site Service
Processor
- Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor
Operating System
- Canonical® Ubuntu® LTS Citrix® XenServer®
Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server VMware® ESXi
Memory1
- 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max
Up to 12 NVDIMM, 192 GB Max
Supports registered ECC DDR4 DIMMs only
Drive Bays
- Front drive bays:
Up to 16 x 2.5” SAS/SATA/SSD, max 60TB
Up to 8 x 3.5” SAS/SATA, max 80TB
Dimensions
- Form factor:
Rack (2U)
Chassis depth:
715.5 mm
Data Protection
- TPM 1.2/2.0 optional Cryptographically signed firmware
Secure Boot
System Lockdown
Secure erase
Ports
- Network daughter card options:
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
Front ports:
Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC
Direct Micro-USB Rear ports:
Video, serial, 2 x USB 3.0, dedicated iDRAC network port
Video card:
VGA
PCIe:
Up to 8 x Gen3 slots, Up to 4 x16
Chassis
- Optional LCD or Security bezel
Power
- Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W
48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan)
Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy High performance fans available
RAID Controllers
- Internal controllers:
PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem:
HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID):
H840
External HBAs (non-RAID):
12 Gbps SAS HBA
Management
- Embedded / At-the-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise (coming soon)
OpenManage Essentials
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
OpenManage Integrations
Microsoft® System Center
VMware® vCenter™
BMC software (available from BMC)
OpenManage Connections
Nagios Core and Nagios XI
HPE Operations Manager i (OMi)
IBM Tivoli® Netcool/OMNIbus (coming soon)
IBM Tivoli® Network Manager IP Edition (coming soon)
