MÁY CHỦ DELL POWEREDGE R730XD E5-2650 V3 CHÍNH HÃNG, GIÁ RẺ tại Việt Máy Chủ

KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE R730XD 3.5" E5-2650 V3

  • (1) Intel® Xeon® E5-2650 v3 2.3GHz,25M Cache,9.60GT/s QPI,Turbo,HT,10C/20T (105W) Max Mem 2133MHz
  • 8GB RDIMM, 2133MT/s, Single Rank, x8 Data Width
  • Hard Drive : None 3.5-inch
  • RAID PERC H730 Adapter RAID Controller, 1Gb NV Cache  ( RAID 0,1,5,6,10,50,60 )
  • Broadcom 5720 QP 1Gb Network Daughter Card
  • 12 x 3.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
  • Platinum efficiency 1100W AC Hot-plug power supply (1/2)
  • Rack 2U, Dell Friction Rail Kit
  • Warranty : 3 Year ProSupport and NBD On-site Service

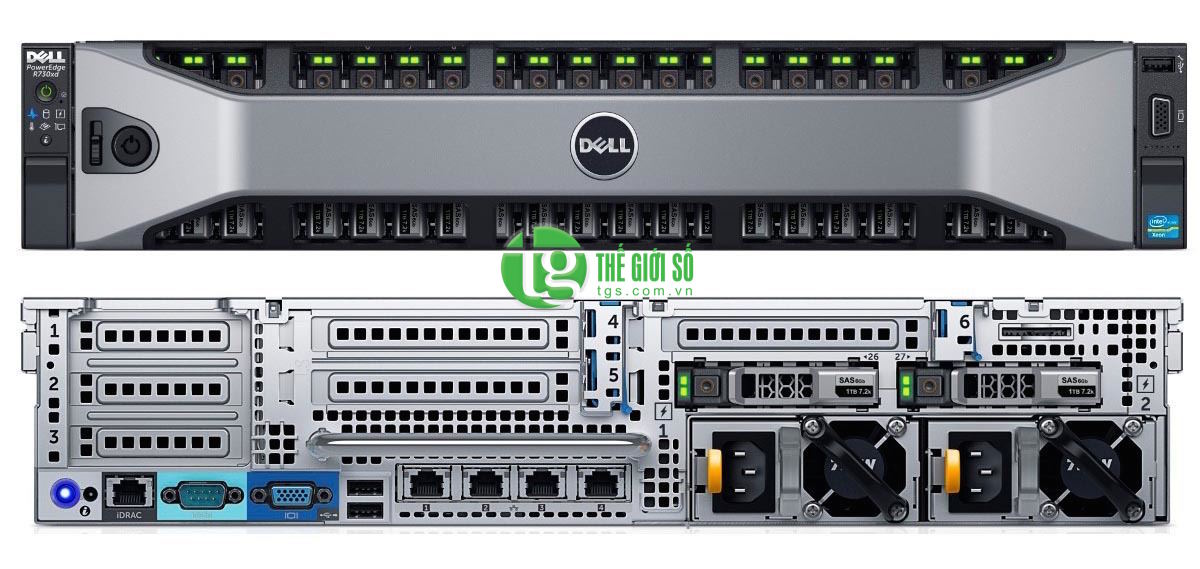

SERVER DELL POWEREDGE R730xd 3.5" E5-2650 v3

Processor

  • Intel® Xeon® E5 2600 v3 processors

Operating System

  • Microsoft® Windows Server® 2008 R2
    Microsoft Windows Server 2012
    Microsoft Windows Server 2012 R2
    Novell® SUSE® Linux Enterprise Server
    Red Hat® Enterprise Linux
    VMware® ESX®

Chipset

  • Intel C610 series chipset

Memory1

  • 24 DIMM slots, DDR4 memory
    Architecture: Up to 2133MHz MHz DDR4 DIMMs
    Memory Type: RDIMM&LRDIMM
    Memory Module Sockets: Twenty Four
    Minimum RAM: 2 GB (one module)
    Maximum RAM: Up to 768GB (24 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2133MT/s

Embedded Hypervisor (Optional)

  • Supported optional hypervisors:
    Microsoft® Windows Server® 2008, with Hyper-V®
    VMware® vSphere® ESXiTM
    Citrix® XenServer®

Storage

  • SAS, SATA, nearline SAS, SSD, PCIe SSD:
    Up to 68.5TB with 18 x 1.8” 960GB SATA SSD + 8 x 3.5” 1.8TB SAS HDD
    Up to 47.5TB with 24 x 2.5” 1.8TB hot-plug SAS HDD + 2 x 2.5” 1.8TB hot-plug SAS HDD
    Up to 99.6TB with 12 x 3.5 6TB NL SAS HDD or SSD +4 x 3.5 6TB SAS + 2 x 2.5 1.8TB SAS HDD or SSD

Drive Bays

  • Internal hard drive bay and hot-plug backplane:
    Up to 18 x 1.8” SSD: SATA
    Up to 24 x 2.5” + 2 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA, up to 4 NVMe Express Flash PCIe
    Up to 16 x 3.5” + 2 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA

Slots

  • Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
    Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
    Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
    Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
    Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
    Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
    Dedicated RAID card

RAID Controllers

  • Internal:
    PERC H330
    PERC H730
    PERC H730P
    External:
    PERC H830

Network Controller

  • 4 x 1Gb, 2 x 10Gb

Communications

  • Broadcom® 5719 quad-port 1Gb NIC
    Broadcom 5720 dual-port 1Gb NIC
    Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
    Broadcom 57810 dual-port 10Gb Base-T network adapter
    Intel® Ethernet I350 dual-port 1Gb Server adapter
    Intel Ethernet I350 quad-port 1Gb Server adapter
    Intel Ethernet X540 dual-port 10GBASE-T Server adapter
    Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ Server network adapter
    Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP Server network adapter
    Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
    Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
    Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
    Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
    Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
    QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
    QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
    Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
    Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Power

  • 1100W AC, 86 mm 13G (Platinum+)
    1100W DC, 86 mm 12G (Gold)
    750W AC, 86 mm 12G (Platinum)
    750W AC, 86 mm 12G (Diamond)
    495W AC, 86 mm 12G (Platinum)

Availability

  • ECC memory
    Hot-plug hard drives
    Hot-plug redundant cooling
    Hot-plug redundant power
    iDRAC8
    Internal Dual SD Module
    Single Device Data Correction (SDDC)
    Spare Rank
    Support for high availability clustering and virtualization
    Proactive systems management alerts
    iDRAC8 with Lifecycle Controller

Chassis

  • H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)

Management

  • Dell OpenManage portfolio of systems management solutions, including:
    OpenManage Essentials console
    iDRAC8 with Lifecycle Controller
