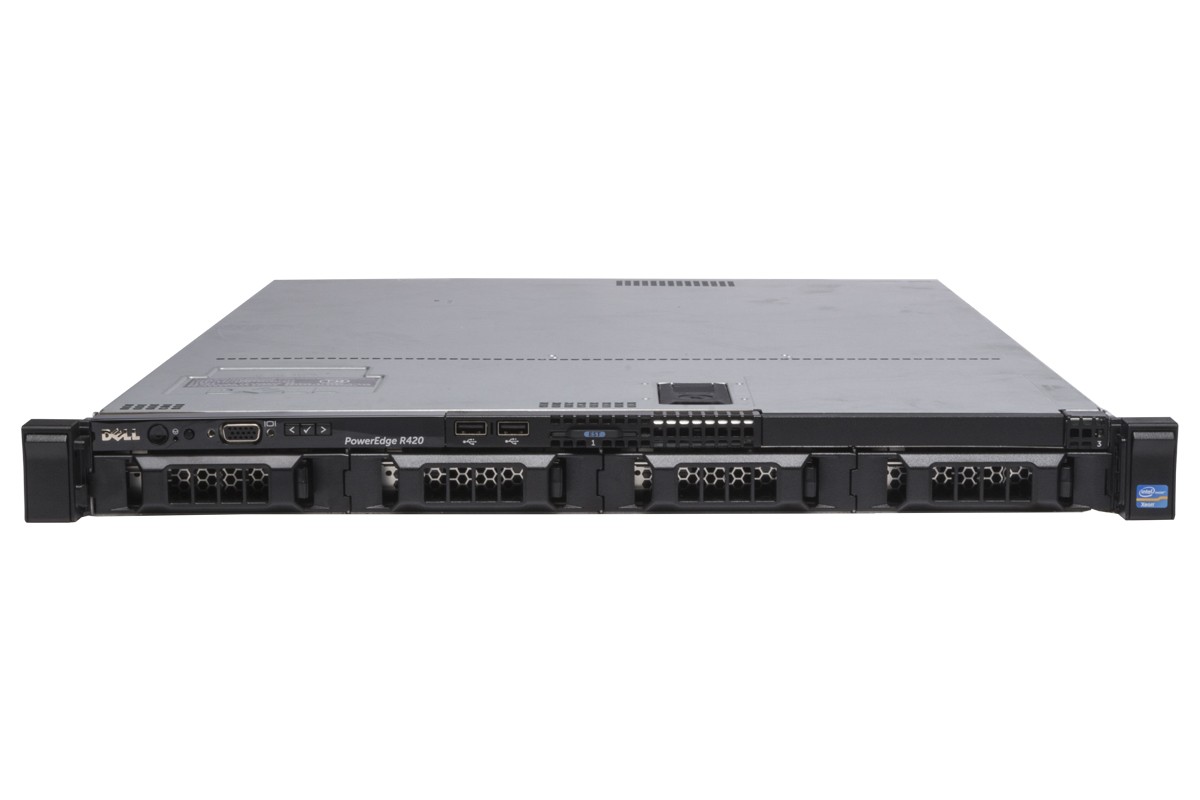

MÁY CHỦ DELL POWEREDGE R420 E5 2407v2


Số lượng:
Giá bán: 0 VND

MÁY CHỦ DELL POWEREDGE R420 - E5-2407v2 CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES MÁY CHỦ DELL POWEREDGE R420 - E5-2407v2

Dell PowerEdge R420 Server

    * 1 x Intel Xeon 4-Core E5-2407v2 2.4GHz, 10M Cache, 6.4GT/s QPI
    * 1 x 8GB DDR3 1333 240-Pin DDR3 ECC RDIMMs (PC3 10600)
    * Non x 8 HDD SSD/SATA/SAS Enterprise 2.5"
    * Dell™ PERC H310 RAID Controller SATA/SAS (Hardware RAID 0, 1, 5, 10, 50)
    *
Broadcom® 5720 Dual Port 1Gb Gigabit Ethernet

    * 1 x Power Supply 550W

MÁY CHỦ SERVER DELL POWEREDGE R420 - E5-2407v2

Processor

  • Intel® Xeon® processor E5-2400 and E5-2400 v2 product families

    Processor sockets:
    2


    Internal interconnect:
    Intel QuickPath Interconnect (QPI) link: 6.4GT/s; 7.2GT/s; 8.0 GT/s


    Cache:
    2.5MB per core; core options: 4, 6, 8, 10

Operating System

  • Microsoft® Windows Server® 2012
    Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
    Novell® SUSE® Linux Enterprise Server
    Red Hat® Enterprise Linux®
    Virtualization options:
    Citrix® XenServer®
    VMware® vSphere® ESXi ™
    Red Hat Enterprise Virtualization®

Chipset

  • Intel C602

Memory1

  • Up to 384GB (12 DIMM slots) 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s

Storage

  • Maximum internal storage:
    Up to 16TB


    Hot-plug hard drive options:
    2.5” SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD, SAS 512n (15K)
    3.5” SATA, nearline SAS, SAS (15K)
    Self-encrypting drives available

    Cabled hard drive options:
    3.5” SATA, nearline SAS, SAS (15K)

Drive Bays

  • Up to eight 2.5” hot-plug SSD, SAS, or SATA or up to four 3.5” hot-plug SAS, SATA, or SSD

Slots

  • 2 PCIe slots:

    With two processors:
    One x16 PCIe slot with x16 bandwidth, half-length, half-height
    One x16 PCIe slot with x16 bandwidth, half-length, full-height

    With one processor:
    One x8 PCIe slot with x4 bandwidth, half-length, half-height
    One x16 PCIe slot with x16 bandwidth, half-length, full-height

Network Controller

  • Embedded NIC:
    Broadcom® 5720 Dual Port 1Gb LOM



    I/O adapter options:

    1Gb Ethernet:

    Broadcom 5720 Dual Port 1Gb NIC

    Broadcom 5719 Quad Port 1Gb NIC
    Intel I350 Dual Port 1Gb stand-up adapter
    Intel I350 Quad Port 1Gb stand-up adapter



    10Gb Converged Ethernet:
    Brocade® BR1020 Dual Port 10Gb CNA

    QLogic® QLE8262 Dual Port 10Gb DA/SFP+
    Broadcom 57810S Dual Port 10Gb Base-T CNA
    Broadcom 57810S Dual Port 10Gb DA/SFP+ CNA



    10Gb Ethernet:
    Intel X520 Dual Port 10Gb DA/SFP+ server adapter

    Intel X540 Dual Port 10Gb Base-T adapter



    FC8/FC4 HBA:
    QLogic QLE2460 4Gb Single Port FC HBA

    QLogic QLE2462 4Gb Dual Port FC HBA
    QLogic QLE2560 8Gb Single Port FC HBA
    QLogic QLE2562 8Gb Dual Port FC HBA
    Emulex® LPe-12000-E 8Gb Single Port FC HBA
    Emulex LPe-12002-E 8Gb Dual Port FC HBA
    Brocade 815 8Gb Single Port FC HBA
    Brocade 825 8Gb Dual Port FC HBA

Power

  • Platinum efficiency 550W and 350W power supplies
    Silver efficiency cabled 550W power supply
    Auto-ranging power supplies

Availability

  • High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support; fan fault tolerance; optional bezel; luggage tag; ECC memory, interactive LCD screen; ENERGY STAR® compliant

Chassis

  • Form factor:
    1U rack

Management

  • Remote management:
    Basic management (default)
    iDRAC7 with Lifecycle Controller
    iDRAC7 Express (upgrade), iDRAC7 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)

    Systems management:
    IPMI 2.0 compliant
    Dell OpenManage™ Essentials and Dell Management Console
    Dell OpenManage Power Center
    Dell OpenManage Connections:
    OpenManage Integration Suite for Microsoft® System Center
    Dell plug-in for VMware® vCenter™
    HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management

Rack Support

  • ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm

    ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks

RAID

  • Internal controllers:
    PERC S110 (SW RAID)

    PERC H310
    PERC H710
    PERC H710P

    External HBAs (RAID):
    PERC H810


    External HBAs (non RAID):
    6Gbps SAS HBA
