MÁY CHỦ DELL POWEREDGE R420 - E5-2407v2 CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES MÁY CHỦ DELL POWEREDGE R420 - E5-2407v2

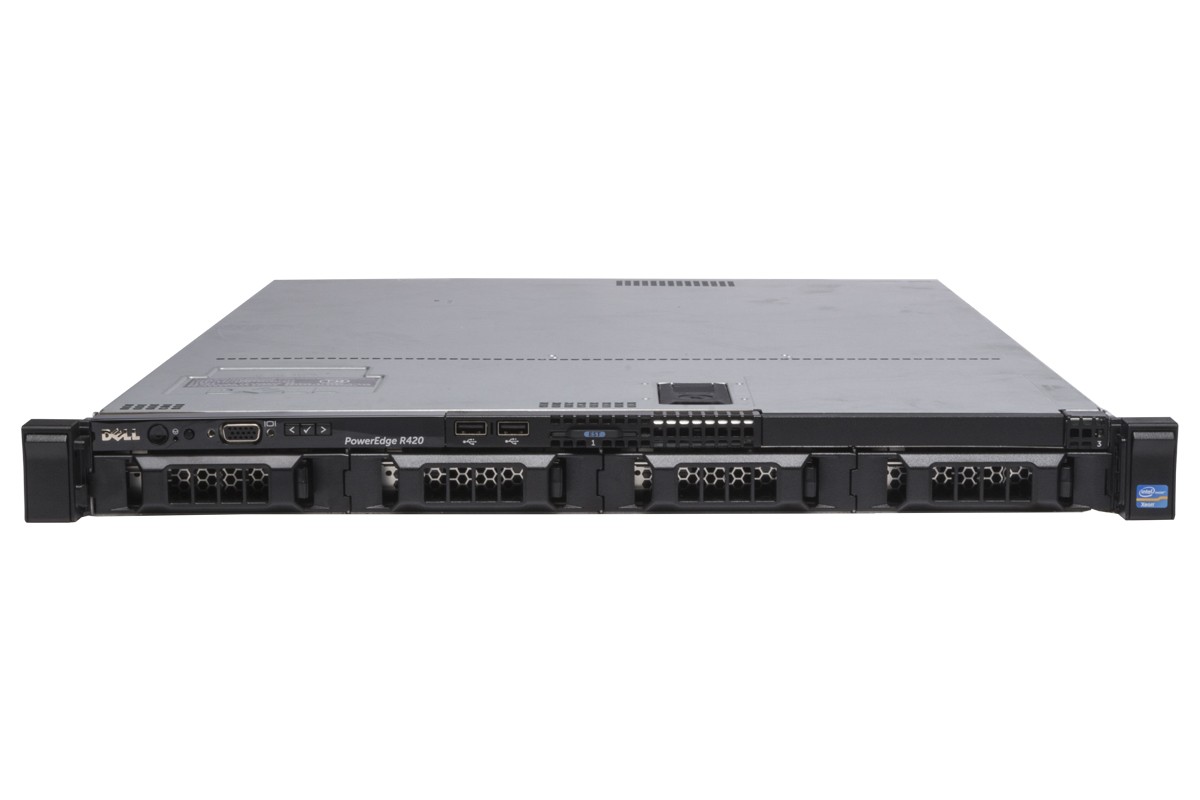

Dell PowerEdge R420 Server

    * 1 x Intel Xeon 4-Core E5-2407v2 2.4GHz, 10M Cache, 6.4GT/s QPI
    * 1 x 8GB DDR3 1333 240-Pin DDR3 ECC RDIMMs (PC3 10600)
    * Non x 8 HDD SSD/SATA/SAS Enterprise 2.5"
    * Dell™ PERC H310 RAID Controller SATA/SAS (Hardware RAID 0, 1, 5, 10, 50)
    * Broadcom® 5720 Dual Port 1Gb Gigabit Ethernet
    * 1 x Power Supply 550W

MÁY CHỦ SERVER DELL POWEREDGE R420 - E5-2407v2

Processor

• Intel® Xeon® processor E5-2400 and E5-2400 v2 product families

  Processor sockets:
  2

  Internal interconnect:
  Intel QuickPath Interconnect (QPI) link: 6.4GT/s; 7.2GT/s; 8.0 GT/s

  Cache:
  2.5MB per core; core options: 4, 6, 8, 10

Operating System

• Microsoft® Windows Server® 2012
  Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
  Novell® SUSE® Linux Enterprise Server
  Red Hat® Enterprise Linux®
  Virtualization options:
  Citrix® XenServer®
  VMware® vSphere® ESXi ™
  Red Hat Enterprise Virtualization®

Chipset

• Intel C602

Memory¹

• Up to 384GB (12 DIMM slots) 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s

Storage

• Maximum internal storage:
  Up to 16TB

  Hot-plug hard drive options:
  2.5” SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD, SAS 512n (15K)
  3.5” SATA, nearline SAS, SAS (15K)
  Self-encrypting drives available

  Cabled hard drive options:
  3.5” SATA, nearline SAS, SAS (15K)

Drive Bays

• Up to eight 2.5” hot-plug SSD, SAS, or SATA or up to four 3.5” hot-plug SAS, SATA, or SSD

Slots

• 2 PCIe slots:

  With two processors:
  One x16 PCIe slot with x16 bandwidth, half-length, half-height
  One x16 PCIe slot with x16 bandwidth, half-length, full-height

  With one processor:
  One x8 PCIe slot with x4 bandwidth, half-length, half-height
  One x16 PCIe slot with x16 bandwidth, half-length, full-height

Network Controller

• Embedded NIC:
  Broadcom® 5720 Dual Port 1Gb LOM



  I/O adapter options:

  1Gb Ethernet:
  Broadcom 5720 Dual Port 1Gb NIC
  Broadcom 5719 Quad Port 1Gb NIC
  Intel I350 Dual Port 1Gb stand-up adapter
  Intel I350 Quad Port 1Gb stand-up adapter



  10Gb Converged Ethernet:
  Brocade® BR1020 Dual Port 10Gb CNA
  QLogic® QLE8262 Dual Port 10Gb DA/SFP+
  Broadcom 57810S Dual Port 10Gb Base-T CNA
  Broadcom 57810S Dual Port 10Gb DA/SFP+ CNA



  10Gb Ethernet:
  Intel X520 Dual Port 10Gb DA/SFP+ server adapter
  Intel X540 Dual Port 10Gb Base-T adapter



  FC8/FC4 HBA:
  QLogic QLE2460 4Gb Single Port FC HBA
  QLogic QLE2462 4Gb Dual Port FC HBA
  QLogic QLE2560 8Gb Single Port FC HBA
  QLogic QLE2562 8Gb Dual Port FC HBA
  Emulex® LPe-12000-E 8Gb Single Port FC HBA
  Emulex LPe-12002-E 8Gb Dual Port FC HBA
  Brocade 815 8Gb Single Port FC HBA
  Brocade 825 8Gb Dual Port FC HBA

Power

• Platinum efficiency 550W and 350W power supplies
  Silver efficiency cabled 550W power supply
  Auto-ranging power supplies

Availability

• High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support; fan fault tolerance; optional bezel; luggage tag; ECC memory, interactive LCD screen; ENERGY STAR® compliant

Chassis

• Form factor:
  1U rack

Management

• Remote management:
  Basic management (default)
  iDRAC7 with Lifecycle Controller
  iDRAC7 Express (upgrade), iDRAC7 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)

  Systems management:
  IPMI 2.0 compliant
  Dell OpenManage™ Essentials and Dell Management Console
  Dell OpenManage Power Center
  Dell OpenManage Connections:
  OpenManage Integration Suite for Microsoft® System Center
  Dell plug-in for VMware® vCenter™
  HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management

Rack Support

• ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm

  ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks

RAID

• Internal controllers:
  PERC S110 (SW RAID)
  PERC H310
  PERC H710
  PERC H710P

  External HBAs (RAID):
  PERC H810

  External HBAs (non RAID):
  6Gbps SAS HBA
