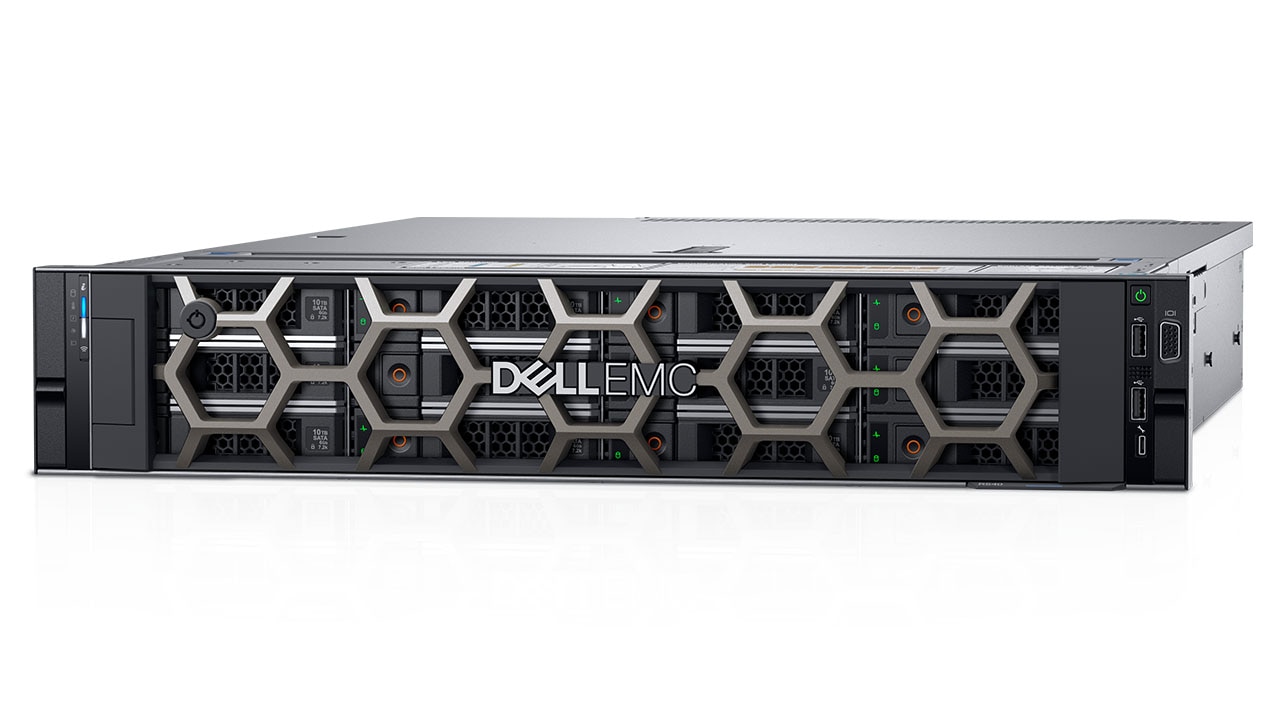

Dell PowerEdge R540 Silver 4112


Số lượng:
Giá bán: 0 VND

Dell PowerEdge R540 Silver 4112

  • (1) Intel Xeon Silver 4112 2.6GHz, 3.0GHz Turbo, 4C, 9.6GT/s 2UPI, 8.25M Cache, HT (85W) DDR4-2400
  • 16GB RDIMM, 2666MT/s, Dual Rank
  • Hard Drive : None 3.5”
  • Raid PERC H730 Integrated Mini -type,1Gb NV Cache (RAID 0,1,5,6,10,50,60)
  • On-Board Broadcom 5720 Dual Port 1Gb LOM
  • iDRAC9 Basic
  • 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD Hot-plug
  • Slim 8X DVD+/-RW Internal Drive
  • Dual, Hot-plug, Redundant Power Supply (1+0), 750W
  • NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (1m), Power Cord
  • Rack: Server 2U, ReadyRails™ Sliding Rails With Cable Management Arm
  • Warranty : 3 Year ProSupport and NBD On-site Service

Processor

  • Up to two Intel® Xeon® Scalable processors, up to 20 cores per processor

Memory1

  • 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 512GB max

Storage Controllers

  • Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
    Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB

Drive Bays

  • Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 120TB
    Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD
    Optional DVD-ROM, DVD+RW

Power Supplies

  • Titanium 750W, Platinum 495W, 750W, and 1100W
    240HVDC 750W

Fans

  • Hot plug power supplies with full redundancy option

Dimensions

  • Form factor
    2RU

    Chassis depth
    Max depth: 707.74 mm (w/bezel)
    Max depth: 693.81 mm (w/o bezel)

Embedded Management

  • IPMI 2.0 compliant
    iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
    Quick Sync 2 wireless module optional

Bezel

  • Optional LCD bezel or security bezel

OpenManage Software

  • OpenManage Enterprise
    OpenManage Essentials
    OpenManage Mobile
    OpenManage Power Center

I/O and Ports

  • Network options
    2 x 1GE LOM
    (optional) OCP 2 x 10GE SFP+ or BaseT or 2 x 1GE

    Front ports
    Video, 1 x USB 2.0, dedicated IDRAC Direct USB

    Rear ports
    Video, serial, 2 x USB 3.0, dedicated iDRAC network port

    PCIe
    Non rear storage config:
    1 x FH/FL + 1 x HH/HL (2U Right riser) slots + 3HH/HL slots
    Rear storage config:
    1 x HH/HL (1U Left Riser) + 1 x HH/HL (1U Right risers) slot or 1 x HH/HL (1U Left Riser) + 1 x FH/HL (1U Right riser)



Supported Operating Systems

  • Canonical® Ubuntu® LTS
    Citrix® XenServer®
    Microsoft Windows Server® with Hyper-V
    Red Hat® Enterprise Linux
    SUSE® Linux Enterprise Server
    VMware® ESXi

Recommended Support

  • Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information

Management

  • Embedded / At-Server
    iDRAC9 with Lifecycle Controller (Express, Enterprise)
    iDRAC Direct
    iDRAC REST API with Redfish
    Quick Sync 2 BLE/wireless module

    Consoles
    OpenManage Enterprise
    OpenManage Essentials
    OpenManage Power Center

    Mobility
    OpenManage Mobile

    Tools
    iDRAC Service Module
    OpenManage Server Administrator
    OpenManage Storage Services
    Dell Repository Manager
    Dell System Update
    Dell Server Update Utility
    Dell Update Catalogs

    OpenManage Integrations
    Microsoft® Systems Center
    VMware® vCenter™
    BMC software (available from BMC)

    OpenManage Connections
    Nagios Core and Nagios XI
    Oracle Enterprise Manager
    HPE Operations Manager i (OMi)
