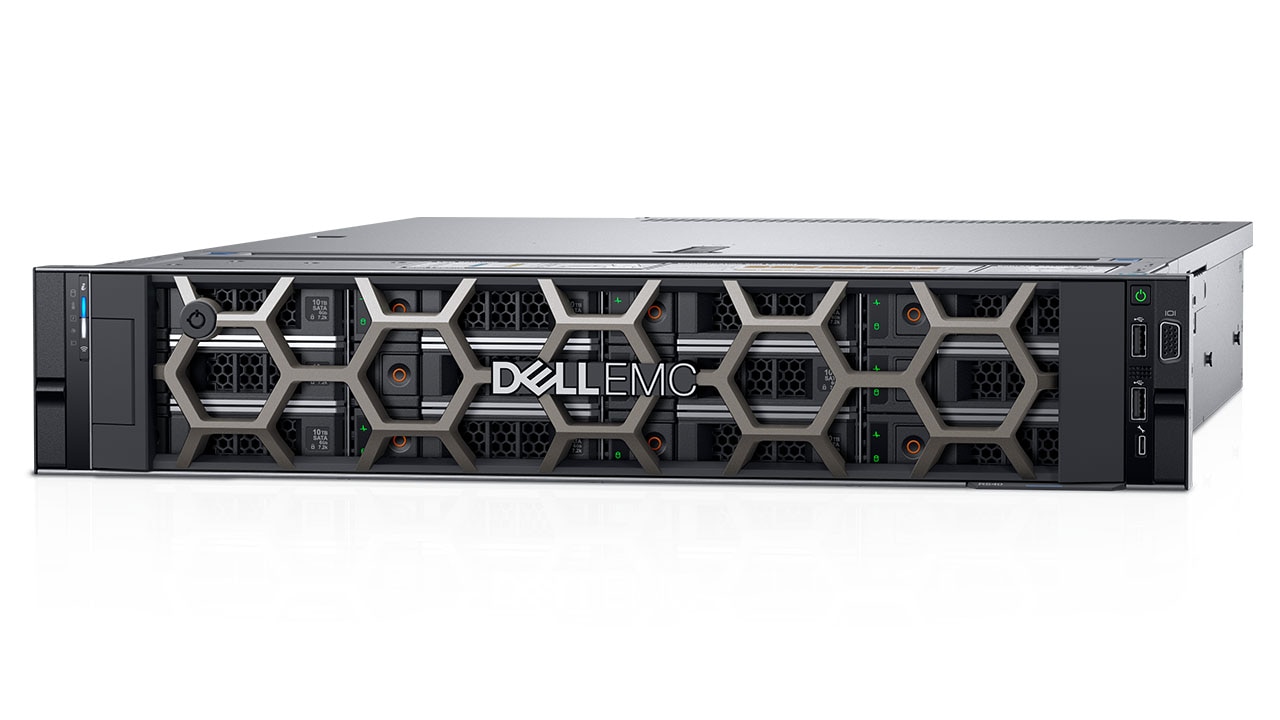

Dell PowerEdge R540 Gold 6138
-
- (1) Intel® Xeon® Gold 6138 2.0G,20C/40T,10.4GT/s, 27M Cache,Turbo,HT (125W) DDR4-2666
- 16GB RDIMM, 2666MT/s, Dual Rank
- Hard Drive : None 3.5”
- Raid PERC H730 Integrated Mini -type,1Gb NV Cache (RAID 0,1,5,6,10,50,60)
- On-Board Broadcom 5720 Dual Port 1Gb LOM
- iDRAC9 Basic
- 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD Hot-plug
- Slim 8X DVD+/-RW Internal Drive
- Dual, Hot-plug, Redundant Power Supply (1+0), 750W
- NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (1m), Power Cord
- Rack: Server 2U, ReadyRails™ Sliding Rails With Cable Management Arm
- Warranty : 3 Year ProSupport and NBD On-site Service
Processor
- Up to two Intel® Xeon® Scalable processors, up to 20 cores per processor
Memory1
- 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 512GB max
Storage Controllers
- Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
Drive Bays
- Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 120TB
Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD
Optional DVD-ROM, DVD+RW
Power Supplies
- Titanium 750W, Platinum 495W, 750W, and 1100W
240HVDC 750W
Fans
- Hot plug power supplies with full redundancy option
Dimensions
- Form factor
2RU
Chassis depth
Max depth: 707.74 mm (w/bezel)
Max depth: 693.81 mm (w/o bezel)
Embedded Management
- IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
Quick Sync 2 wireless module optional
Bezel
- Optional LCD bezel or security bezel
OpenManage Software
- OpenManage Enterprise
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center
I/O and Ports
- Network options
2 x 1GE LOM
(optional) OCP 2 x 10GE SFP+ or BaseT or 2 x 1GE
Front ports
Video, 1 x USB 2.0, dedicated IDRAC Direct USB
Rear ports
Video, serial, 2 x USB 3.0, dedicated iDRAC network port
PCIe
Non rear storage config:
1 x FH/FL + 1 x HH/HL (2U Right riser) slots + 3HH/HL slots
Rear storage config:
1 x HH/HL (1U Left Riser) + 1 x HH/HL (1U Right risers) slot or 1 x HH/HL (1U Left Riser) + 1 x FH/HL (1U Right riser)
Supported Operating Systems
- Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
Recommended Support
- Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information
Management
- Embedded / At-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell Repository Manager
Dell System Update
Dell Server Update Utility
Dell Update Catalogs
OpenManage Integrations
Microsoft® Systems Center
VMware® vCenter™
BMC software (available from BMC)
OpenManage Connections
Nagios Core and Nagios XI
Oracle Enterprise Manager
HPE Operations Manager i (OMi)
