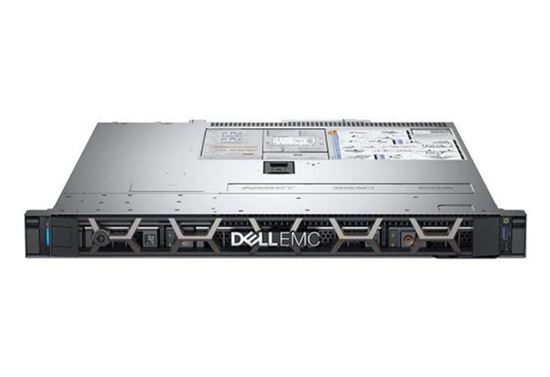

Dell PowerEdge R240 Non Hot-Plug E-2146G
- Intel® Xeon® E-2146G 3.5GHz, 12M cache, 6C/12T, turbo (80W)
- 8GB 2666MT/s DDR4 ECC UDIMM
- Hard Drive : None 3.5”
- PERC S140, 6Gb/s SATA RAID Controller ( RAID 0,1,5,10 )
- On-Board Broadcom 5720 Dual Port 1Gb LOM
- iDRAC9 Basic
- 4 x 3.5” HDD: SAS, SATA, Near-line SAS SSD Non Hot-plug
- Slim 8X DVD+/-RW Internal Drive Option
- Power supplies: Single, Cabled Power Supply, 250W
- NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet
- Server Rack 1U, ReadyRails™ Sliding Rails
- Warranty : 3 Year ProSupport and NBD On-site Service
Processor
1 processor from the following:
Intel® Xeon® E-2100 product family,
Intel Pentium®,
Intel Core i3®,
Intel Celeron®
Bezel
Optional security bezel
Chassis
Form Factor: Rack (1U)
Dimensions:
Chassis width: 434.00mm (17.08")
Chassis depth: 595.63mm (23.45") (3.5inch HHD config)
Note: These dimensions do not include: bezel, redundant PSU
Chassis weight: 12.2 kg (29.98 lbs)
Hard Drive Configuration
Up to 4 x 3.5 hot-plug SAS, SATA, or SSD*
Up to 2 x 3.5 cabled SAS, SATA, or SSD*
Memory*
DIMM Speed: Up to 2666MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Slots: 4
Maximum RAM: Up to 64GB
Management
Embedded / At-the-Server
iDRAC9 with Lifecycle Controller
iDRAC Direct
iDRAC RESTful API with Redfish
Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
iDRAC Service Module
OpenManage Server Administrator
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
Dell EMC RACADM CLI
IPMI Tool
OpenManage Integrations
Microsoft® System Center
VMware® vCenter™
BMC Truesight (available from BMC)
Red Hat Ansible
OpenManage Connections
Nagios Core & Nagios XI
Micro Focus Operations Manager i (OMi)
IBM Tivoli Netcool/OMNIbus
Network Controller
2 x 1GbE LOM Network Interface Controller (NIC) ports
Ports
Front:
One USB 2.0
Micro USB 2.0 compliant for iDRAC Direct
Rear:
Two USB 3.0
VGASerial connector
Internal port:
One USB 3.0
Power Supplies
Single 250W or a 450W cabled PSU
I/O Expansion Slots
2 x PCIe Gen 3.0 slots
- One x8 slot low-profile, half length with x4 slot width
- One x16 slot low-profile/full-height, half length with x8 bandwith
Supported Operating Systems
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
Citrix® XenServer®
Ubuntu Server
Certify XenServer
Storage Controllers
Internal controllers: PERC H730P, H330, HBA330 (non-RAID)
Software RAID: PERC S140
External HBAs: 12Gbps SAS HBA (non-RAID)
Boot Optimized Storage Subsystem: 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region
