SERVER SuperServer 5019C-MR
• General Purpose, SMB, Web Hosting
• Application and data serving
• Archiving, Mail/Finance, Security

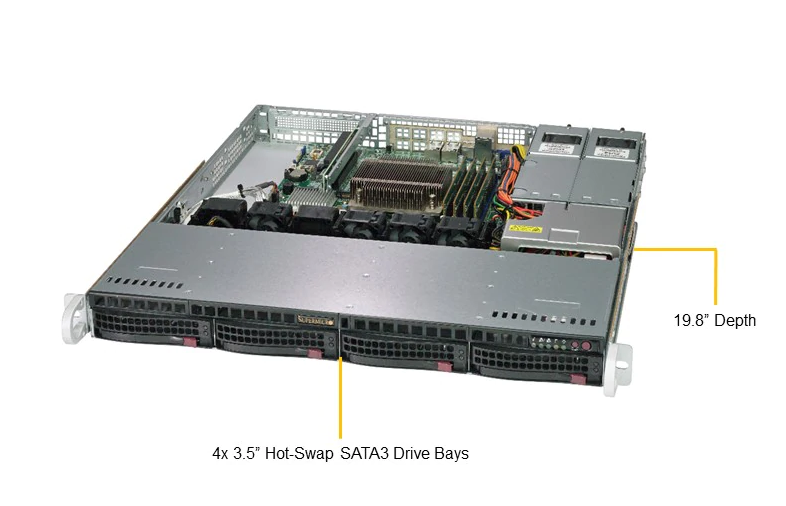

1U Rackmount Server, Single socket H4 (LGA 1151), 128GB ECC UDIMM, 4 x 3.5" drive bay, 2 GbE ports with Intel® i210-AT, 400W
Form Factor | 1U Rackmount |
Processor | Single socket H4 (LGA 1151) CPU TDP support up to 95W Support Intel® Xeon® Processor E-2100 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors |
Chipset | Intel® C246 chipset |
Memory | 4 DIMM slots Up to 128 ECC UDIMM up to 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM |
Hard Drive | 4 Hot-swap 3.5" drive bays |
Raid Controller | SATA3 (6Gbps) via C246 controller RAID 0, 1, 5, 10 support |
Ethernet | Dual Intel® I210-AT Gigabit Ethernet LAN ports |
Remote Management | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
Graphics | ASPEED AST2500 BMC |
Expansion Slots | 1 PCI-E 3.0 x16 M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key |
Power Supply | 400W High efficiency (96%) Redundant PSU; Platinum Level |
