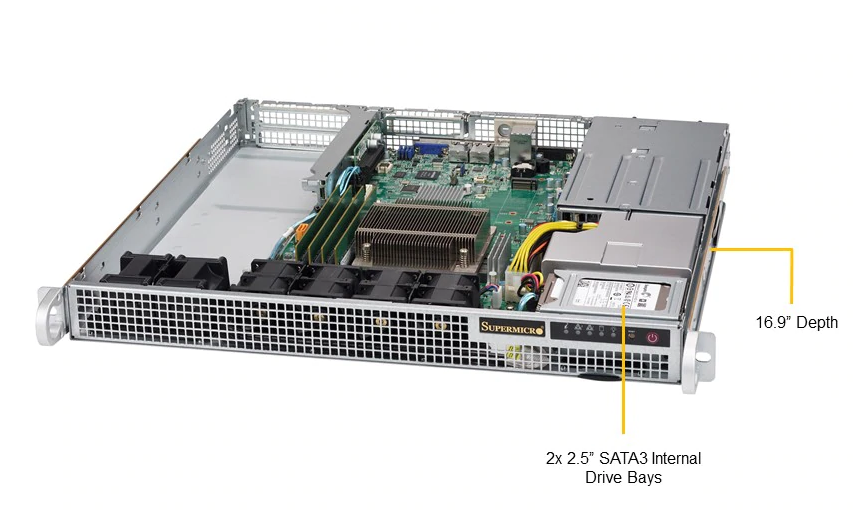

SERVER SuperServer 1019S-WR
• Appliance Server, WIO
• Embedded Applications
1U Rackmount Server, Single socket H4 (LGA 1151), 64GB ECC UDIMM, 2 fixed 2.5" drive bays, 2 GbE ports with Intel® i210-AT, 400W
| Form Factor | 1U Rackmount Server |
| Processor | Single socket H4 (LGA 1151) CPU TDP support up to 95W Support Intel® Xeon® Processor E-2100 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors |
| Chipset | Intel® C236 chipset |
| Memory | 4 DIMM slots Up to 64 ECC UDIMM up to 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM |
| Hard Drive | 2 fixed 2.5" drive bays |
| Raid Controller | SATA3 (6Gbps) via C236 controller RAID 0, 1, 5, 10 support |
| Ethernet | Dual Intel® I210-AT Gigabit Ethernet LAN ports |
| Remote Management | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Expansion Slots | Left riser slot: 1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 1 PCI-E 3.0 x4 (in x8 slot) 1 M.2 PCI-E 3.0 x4 |
| Power Supply | 400W Redundant Platinum Level power supplies |
