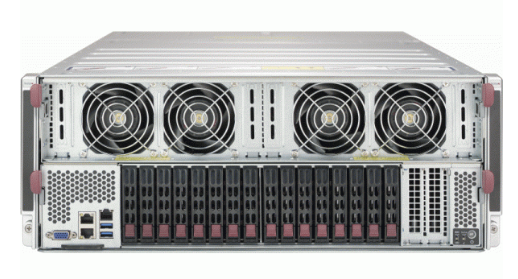

Máy chủ Trí tuệ Nhân tạo SuperServer 4029GP-TVRT
Thông tin sản phẩm Máy chủ Trí tuệ Nhân tạo SuperServer 4029GP-TVRT
Applications
– Artificial Intelligence
– Big Data Analytics
– High-performance Computing
– Research Lab/National Lab
– Astrophysics, Business Intelligence
Key Features SuperServer 4029GP-TVRT
• Processor: 2 x Intel® Xeon® Processor SKL-SP 4110 8C/16T 2.1G 11M 9.6GT UPI
• Memory: 4 x 16GB DDR4
• GPU: 8 x NVIDIA Tesla V100 SXM2 16GB CoWoS HBM2 NVLink, NVTV100-SXM2
Network Controller
Dual 10GBase-T LAN with Intel® X550
Raid: SATA3 (6Gbps); RAID 0, 1, 5, 10
Storages: 16 Hot-swap 2.5" SAS/SATA drives; Supports 8 NVMe drives
Power: 2200W Redundant Power Supplies
Form Factor: Rackmount 4U
Supports
1. Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
2. Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 24 DIMM slots
3. 4 PCI-E 3.0 x16 (LP) (GPU tray for GPUDirect RDMA), 2 PCI-E 3.0 x16 (LP, CPU tray)
4. Support 8 Tesla V100 with 300GB/s NVLINK
5. Dual 10GBase-T LAN with Intel® X550
6. 16 Hot-swap 2.5" SAS/SATA drives; Supports 8 NVMe drives
7. 8x 92mm cooling fans
8. 2200W Redundant (2+2) Power Supplies; Titanium Level (96%+)
Product SKUs
SYS-4029GP-TVRT: SuperServer 4029GP-TVRT (Black)
Motherboard
Super X11DGO-T
Processor/Cache
CPU
• Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors,
3 UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores
• Up to 28 Cores with Intel® HT Technology
GPU Support
• NVIDIA Tesla V100 SXM2 GPU
System Memory
Memory Capacity
• 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type: 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset: Intel® C621 chipset
SATA: SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
• Dual Port 10GBase-T from Intel X550 Ethernet Controller
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
• ASPEED AST2500 BMC
Input / Output
SATA
• 8 SATA3 (6Gbps) ports
LAN
• 2 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB
• 2 USB 3.0 ports (front)
Video
• 1 VGA Connector
COM Port
• 1 COM port (header)
System BIOS
BIOS Type
• AMI 32Mb SPI Flash ROM
BIOS Features
• Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM, SPM, SUM
• SuperDoctor® 5
• Watchdog
Chassis
Form Factor
• 4U Rackmountable
• Rackmount Kit (MCP-290-00057-0N)
Model
• CSE-R422BG-1
Dimensions
Height: 7.0" (178mm)
Width: 17.6" (447mm)
Depth: 31.7" (805mm)
Weight: Net Weight: 80 lbs (36.2 kg)
• Gross Weight: 135 lbs (61.2 kg)
Available Colors
• Black
Drive Bays
Hot-swap
• 16 Hot-swap 2.5" SAS/SATA drive bays
Expansion Slots
PCI-Express
• 4 PCI-E 3.0 x16 (LP, GPU tray for GPUDirect RDMA) slots
• 2 PCI-E 3.0 x16 (LP, CPU tray) slots
Backplane
16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5" SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
System Cooling
Fans
• 8x 92mm Cooling Fans
• 4x 80mm Cooling Fans
Power Supply
2200W Redundant Titanium Level Power Supplies with PMBus
Total Output Power
• 1200W/1800W/1980W/2090W/2200W
(UL/cUL only)
Dimension (W x H x L)
• 106.5 x 82.4 x 203.5 mm
Input
• 1200W: 100-127 Vac / 14-11 A / 50-60 Hz
• 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
• 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz
• 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz
• 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only)
• 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only)
• 2090W: 230-240 Vdc / 10-9.8 A (CCC only)
+12V
• Max: 100A / Min: 0A (1200W)
• Max: 150A / Min: 0A (1800W)
• Max: 165A / Min: 0A (1980W)
• Max: 174.17A / Min: 0A (2090W)
• Max: 183.3A / Min: 0A (2200W)
• Max: 174.17A / Min: 0A (2090W)
12Vsb
• Max: 2A / Min: 0A
Output Type
• Gold Finger (connector on M/P)
