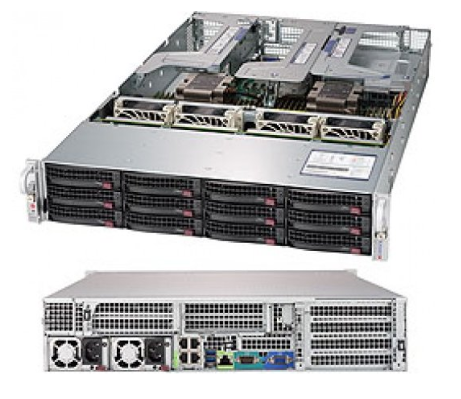

Máy chủ SuperServer SYS-6029U-E1CR4T
Key Features SuperServer SYS-6029U-E1CR4T
• Virtualization
• Hyperconverge Storage
• Cloud Computing
• High End Enterprise Server
• Flexible Networking Options
Processor: 1 x Intel® Xeon® Processor SKL-SP 4110 8C/16T 2.1G 11M 9.6GT UPI
Memory: 16GB DDR4.
Network Controller: 4x 10GBase-T LAN ports via Intel X710
Raid: SATA3 (6Gbps); RAID 0, 1, 5, 10
Storages: 12 Hot-swap 3.5″ drive bays;
Power: 1000W Redundant Power Supplies
Form Factor: Rackmount 2U
1. Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
2. Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
3. 2 PCI-E 3.0 x16 slots (FH, 10.5″ L),
4 PCI-E 3.0 x8 slots (FH, 10.5″ L),
1 PCI-E 3.0 x8 slot (LP)
4. 4x 10GBase-T LAN ports via Intel X710
5. 12 Hot-swap 3.5″ drive bays: 12 SAS3 via opt. AOC (4 hybrid ports – opt. 4 NVMe), Optional 2 hot-swap 2.5″ rear drive bays for SSDs
6. 4 Heavy duty 8cm PWM fans
7. 1000W High efficiency (96%) Redundant PSU; Titanium Level
