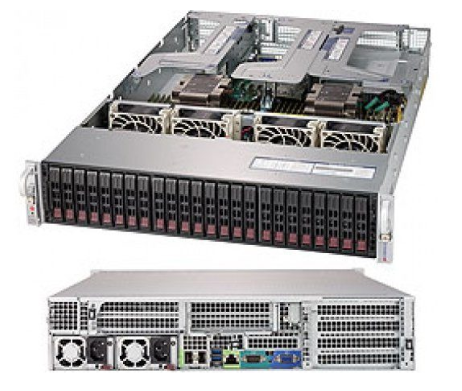

Máy chủ SuperServer SYS-2029U-TRTP
Key Features SuperServer SYS-2029U-TRTP
• Virtualization
• Hyperconverge Storage
• Cloud Computing
• High End Enterprise Server
Processor: 1 x Intel® Xeon® Processor SKL-SP 4110 8C/16T 2.1G 11M 9.6GT UPI
Memory: 16GB DDR4.
Network Controller: 2 10G SFP+ ports via AOC-2UR68-i2XS (Intel® 82599ES)
Raid: RAID 0, 1, 5, 10
Storages: 24 Hot-swap 2.5″ drive bays
Power: 1000W Redundant Power Supplies
Form Factor: Rackmount 2U
1. Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
2. Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
3. 1 PCI-E 3.0 x16 slot (FH, 10.5″ L),
5 PCI-E 3.0 x8 slots (FH, 10.5″ L),
1 PCI-E 3.0 x8 slot (LP),
1 PCI-E 3.0 x8 slot (internal LP)
4. 2 10G SFP+ Ethernet ports
5. 24 Hot-swap 2.5″ drive bays; 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3),
Optional 2 hot-swap 2.5″ rear drive bays for SSDs;
Optional M.2 NVMe and SATA3 ports
6. 4 Heavy duty 8cm PWM fans
7. 1000W Redundant Power Supplies Titanium Level (96%)
