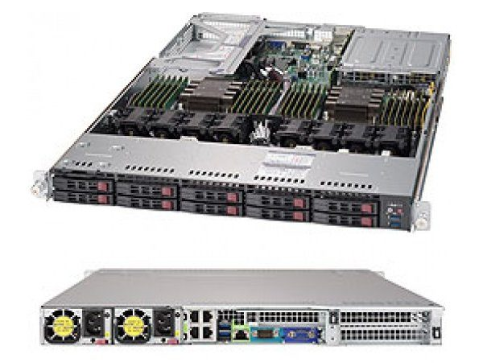

Máy chủ SuperServer SYS-1029U-E1CRTP
Key Features SuperServer SYS-1029U-E1CRTP
• Virtualization
• Cloud Computing
• High End Enterprise Server
Processor: 1 x Intel® Xeon® Processor SKL-SP 4110 8C/16T 2.1G 11M 9.6GT UPI
Memory: 16GB DDR4.
Network Controller: 2 10GBase-T ports via AOC-UR-I2XT (Intel® X540)
Raid: RAID 0, 1, 5, 10
Storages: 10 Hot-swap 2.5″ drive bays
Power: 750W Redundant Power Supplies
Form Factor: Rackmount 1U
1. Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
2. Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
3. 2 PCI-E 3.0 x16 slots (FH, 10.5″ L),
2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
4. 2 10G SFP+ Ethernet ports
5. 10 Hot-swap 2.5″ drive bays: 10 SAS3/SATA3 ports via Expander and AOC;
Optional M.2 NVMe and SATA3 ports
6. 8 heavy duty fans w/ optimal fan speed control
7. 750W Redundant Power Supplies Platinum Level (94%+)
• Virtualization
• Cloud Computing
• High End Enterprise Server
Processor: 1 x Intel® Xeon® Processor SKL-SP 4110 8C/16T 2.1G 11M 9.6GT UPI
Memory: 16GB DDR4.
Network Controller: 2 10GBase-T ports via AOC-UR-I2XT (Intel® X540)
Raid: RAID 0, 1, 5, 10
Storages: 10 Hot-swap 2.5″ drive bays
Power: 750W Redundant Power Supplies
Form Factor: Rackmount 1U
1. Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
2. Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
3. 2 PCI-E 3.0 x16 slots (FH, 10.5″ L),
2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
4. 2 10G SFP+ Ethernet ports
5. 10 Hot-swap 2.5″ drive bays: 10 SAS3/SATA3 ports via Expander and AOC;
Optional M.2 NVMe and SATA3 ports
6. 8 heavy duty fans w/ optimal fan speed control
7. 750W Redundant Power Supplies Platinum Level (94%+)
