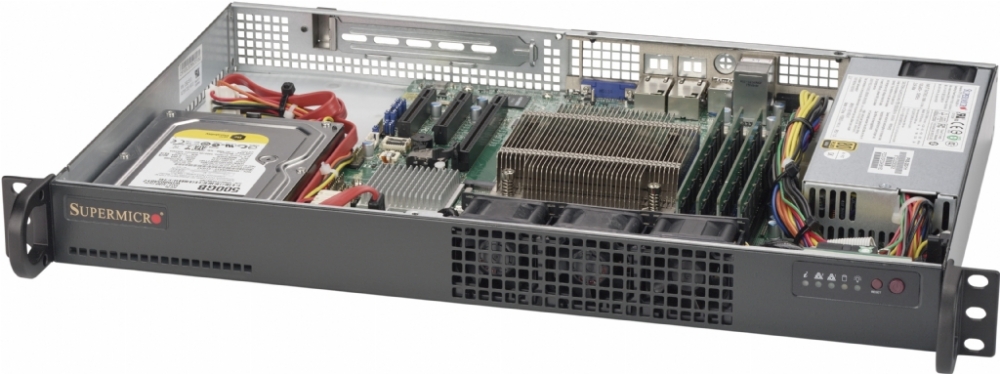

MÁY CHỦ SuperServer 5019S-L
• Mainstream, Entry Appliance
• Low Power, Cost effective
1U Rackmount Server, Single socket H4 (LGA 1151), 64GB ECC UDIMM, 2 GbE ports with Intel® i210-AT, 200W
| Form Factor | 1U Rackmount |
| Processor | Single socket H4 (LGA 1151) Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3 CPU TDP up to 45W, 80W option fan |
| Chipset | Intel® C232 chipset |
| Memory | 4 DIMM slots Up to 64 ECC UDIMM up to 2400/2133/1866/1600MHz ECC DDR4 SDRAM |
| Hard Drive | 1x 3.5" or 2x 2.5" internal drive bays (fixed) |
| Raid Controller | SATA3 (6Gbps) via C232 controller RAID 0, 1, 5, 10 support |
| Ethernet | Dual Intel® I210-AT Gigabit Ethernet LAN ports |
| Remote Management | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Expansion Slots | 1 PCI-E 3.0 x8 AOC slot |
| Power Supply | 200W Multi-output power supply |
