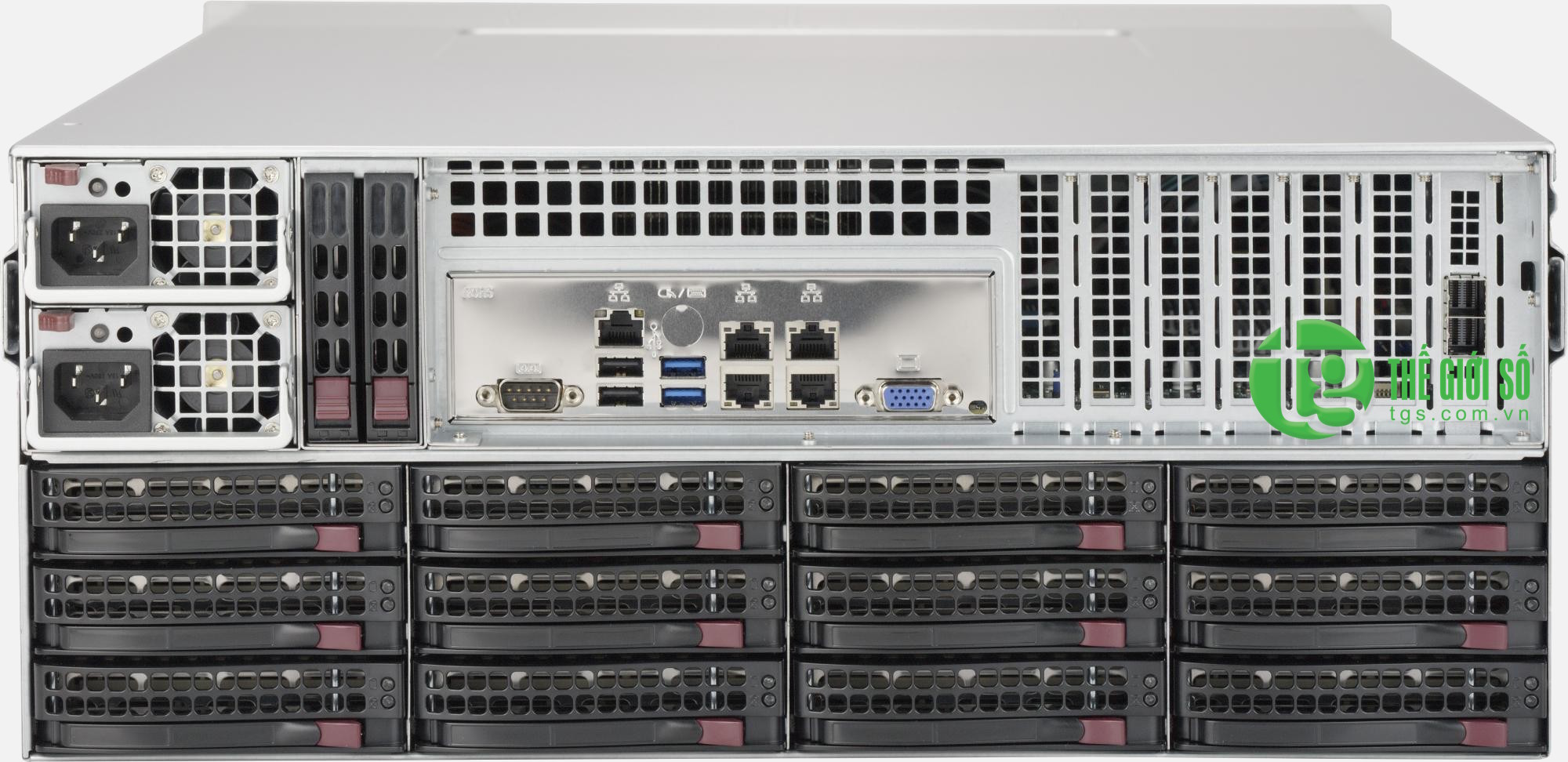

Supermicro SuperStorage Server SSG-6048R-E1CR36L


Số lượng:
Giá bán: 0 VND

Supermicro SuperStorage Server SSG-6048R-E1CR36L CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES Supermicro SuperStorage Server SSG-6048R-E1CR36L

1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3
    family; QPI up to 9.6GT/s
2. Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
3. 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8 (slot 1 & 2 occupied by controller
    and JBOD expansion port)
4. Dual 10GBase-T LAN w/ Intel® X540
5. 36x 3.5" Hot-swap SAS3/SATA3 drive bays (24 front + 12 rear); 2x 2.5"
    optional Hot-swap drive bays (rear); 4x 2.5" internal fixed drive bays
6. SAS3 via LSI 3008 controller; IT mode
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 7x 80mm middle cooling fans
9. 1280W Redundant Power Supplies Platinum Level (94%)

Product SKUs

SSG-6048R-E1CR36L SuperServer 6048R-E1CR36L (Black)

Chassis

Form Factor 4U Rackmount
Model CSE-847BE1C-R1K28LPB

Integrated Board

Super X10DRH-iT

Processor/Cache

CPU Intel® Xeon® processor E5-2600 v3 family (up to 160W TDP) *
Dual Socket R3 (LGA 2011)
Cache Up to 18 Cores / Up to 45MB Cache
System Bus QPI up to 9.6 GT/s

System Memory

Memory Capacity 16x 288-pin DDR4 DIMM slots
Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes 64GB, 32GB, 16GB, 8GB, 4GB
Error Detection Corrects single-bit errors

On-Board Devices

Chipset Intel® C612 chipset
SAS SAS3 (12Gbps) via LSI 3008
IT mode firmware
SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Connectivity Intel® X540 Dual Port Gigabit Ethernet
Graphics ASPEED AST2400 BMC

Input / Output

LAN 2x RJ45 10GBase-T LAN ports
1x RJ45 Dedicated IPMI LAN port
USB 2x USB 3.0 ports (rear)
2x USB 2.0 ports (rear)
1x Type A
Video 1x VGA Connector
Serial Port 1x Fast UART 16550 port / 1 Header
Expansion Slots
PCI-Express 1x PCI-E 3.0 x16 slot
6x PCI-E 3.0 x8 slots
Slot 1 & 2 occupied by controller and JBOD Expansion Port

Drive Bays

Hot-swap 36x 3.5" Hot-swap SAS3/SATA3 drive bays (24 front + 12 rear); 2x 2.5"
optional Hot-swap drive bays (rear); 4x 2.5" internal fixed drive bays

Power Supply 1280W High-Efficiency (95%+) power supply
Management
Software
  • SuperDoctor® 5
  • Intel® Node Manager 3.0
  • Watch Dog
  • NMI
  • SMCBU and SMM
  • Optional IPMI 1.5 / 2.0
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

Standard Parts List

  Part Number Qty Description
Motherboard / Chassis MBD-X10DRH-iT 1 Super X10DRH-iT Motherboard
CSE-847BE1C-R1K28LPB 1 4U Chassis
Backplane BPN-SAS3-846EL1 1 SAS 12G single expander backplane, with LSI SAS3 expander, support 24x 3.5
  BPN-SAS3-826EL1 1 SAS 12G single expander backplane, with LSISAS3x28 expander, support 12x 3.5
Power Supply PWS-1K28P-SQ 2 1U 1280W, redundant single output power supply
Cable 1 CBL-SAST-0531-01 4 Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s [FCI],RoHS/REACH
Cable 2 CBL-PWEX-0645 2 big 4 pin male to big 4 pin female, power extension 15cm, 20AWG,RoHS/REACH
Cable 3 CBL-0296L 3 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Heatsink / Retention SNK-P0048PS 2 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Add On Card AOC-S3008L-L8E-O-P 1 12Gbps SAS3/HBA/ 2 internal HD connectors/STD Gen3 PCI/122 HD support
Add On Module AOM-SAS3-8I8E-LP 1 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket
