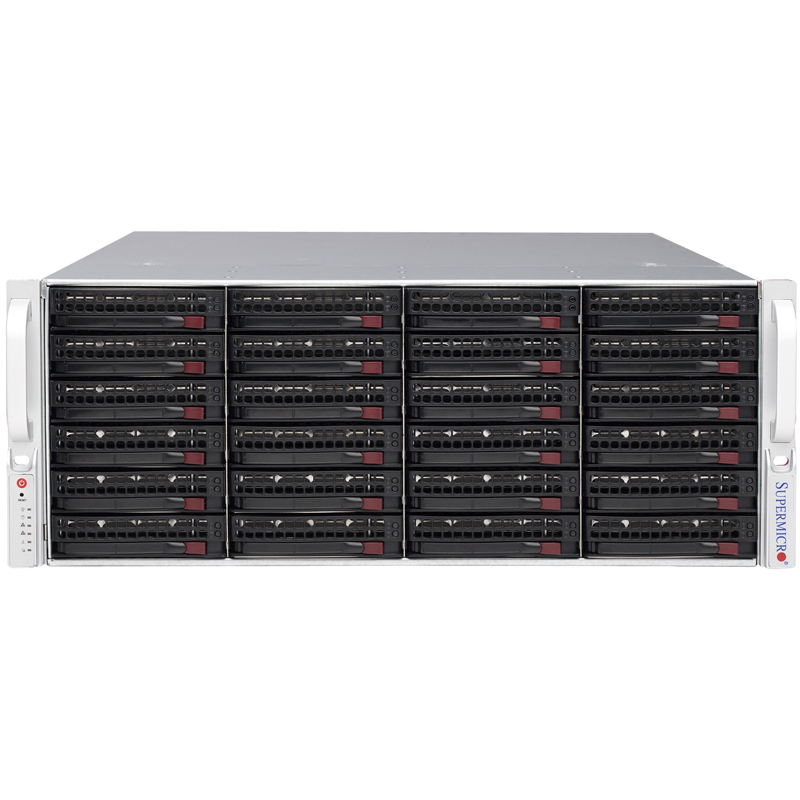

Supermicro SuperStorage Server SSG-6048R-E1CR24L

Số lượng:

Giá bán: 0 VND

Supermicro SuperStorage Server SSG-6048R-E1CR24L CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES Supermicro SuperStorage Server SSG-6048R-E1CR24L

1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3
family; QPI up to 9.6GT/s
2. Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
3. 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8 (slot 1 & 2 occupied by controller
and JBOD expansion port)
4. Dual 10GBase-T LAN w/ Intel® X540
5. 24x 3.5" Hot-swap SAS3 (with LSI expander) / SATA3 drive bays; 2x 2.5"
optional Hot-swap drive bays (rear)
6. SAS3 via LSI 3008 controller; IT mode
7. Server remote management: IPMI 2.0/ KVM over LAN / Media over LAN
8. 2x 80mm hot-swap rear exhaust PWM fans
9. 920W Redundant Power Supplies Platinum Level (94%)

Product SKUs
SSG-6048R-E1CR24L	SuperServer 6048R-E1CR24L (Black)
Chassis
Form Factor	4U Rackmount
Model	CSE-846BE1C-R920B
Integrated Board
Super X10DRH-iT
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v3 family (up to 160W TDP) * Dual Socket R3 (LGA 2011)
Cache	Up to 18 Cores / Up to 45MB Cache
System Bus	QPI up to 9.6 GT/s
System Memory
Memory Capacity	16x 288-pin DDR4 DIMM slots Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	64GB, 32GB, 16GB, 8GB, 4GB
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C612 chipset
SAS	SAS3 (12Gbps) via LSI 3008 IT mode firmware
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Connectivity	Intel® X540 Dual Port Gigabit Ethernet
Graphics	ASPEED AST2400 BMC
Input / Output
LAN	2x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB 3.0 ports (rear) 2x USB 2.0 ports (rear) 1x Type A
Video	1x VGA Connector
Serial Port	1x Fast UART 16550 port / 1 Header
Expansion Slots
PCI-Express	1x PCI-E 3.0 x16 slot 6x PCI-E 3.0 x8 slots Slot 1 & 2 occupied by controller and JBOD Expansion Port
Drive Bays
Hot-swap	24x 3.5" Hot-swap SAS3/SATA3 drive bays Option : 2x 2.5" Hot-swap HDD bays (rear)
Power Supply	920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
Management
Software	SuperDoctor® 5 Intel® Node Manager 3.0 Watch Dog NMI SMCBU and SMM Optional IPMI 1.5 / 2.0
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
Standard Parts List
	Part Number	Qty	Description
Motherboard / Chassis	MBD-X10DRH-iT	1	Super X10DRH-iT Motherboard
	CSE-846BE1C-R920B	1	4U Chassis
Backplane	BPN-SAS3-846EL1	1	SAS 12G single expander backplane, with LSI SAS3 expander, support 24x 3.5
Power Supply	PWS-920P-SQ	2	920W 1U Redundant PWS W/ Quiet Mode
Cable 1	CBL-SAST-0531-01	4	Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s [FCI],RoHS/REACH
Cable 2	CBL-PWEX-0645	2	big 4 pin male to big 4 pin female, power extension 15cm, 20AWG,RoHS/REACH
Cable 3	CBL-0296L	3	4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Heatsink / Retention	SNK-P0048PS	2	2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Add On Card	AOC-S3008L-L8E-O-P	1	12Gbps SAS3/HBA/ 2 internal HD connectors/STD Gen3 PCI/122 HD support
Add On Module	AOM-SAS3-8I8E-LP	1	8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket
