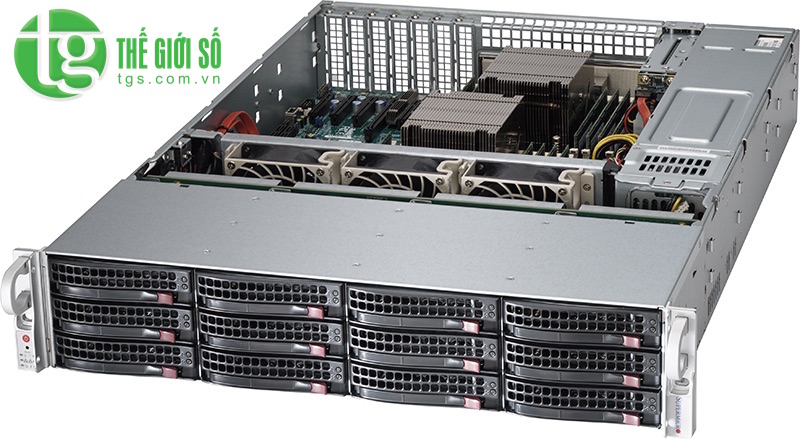

Supermicro SuperStorage Server SSG-6028R-E1CR12N

Số lượng:

Giá bán: 0 VND

Supermicro SuperStorage Server SSG-6028R-E1CR12N CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES Supermicro SuperStorage Server SSG-6028R-E1CR12N

1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3
family; QPI up to 9.6GT/s
2. Up to 1.5TB ECC DDR4 2133MHz; 24x DIMM slots
3. 2x PCI-E 3.0 x16, 3x PCI-E 3.0 x8 (slot 3 & 4 occupied by controller
and JBOD expansion port)
4. Quad 10GBase-T LAN w/ Intel® X540
5. 12x 3.5" Hot-swap SAS3/SATA3 drive bays
6. SAS3 via LSI 3108 AOC (HW RAID)
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 3x 8cm hot-swap redundant PWM cooling fans
9. 920W Redundant Power Supplies Platinum Level (94%)

Product SKUs
SSG-6028R-E1CR12N	SuperServer 6028R-E1CR12N (Black)
Chassis
Form Factor	2U Rackmount
Model	CSE-826BE1C-R920LPB
Integrated Board
Super X10DRi-T4+
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v3 family (up to 160W TDP) * Dual Socket R3 (LGA 2011)
Cache	Up to 18 Cores / Up to 45MB Cache
System Bus	QPI up to 9.6 GT/s
System Memory
Memory Capacity	24x 288-pin DDR4 DIMM slots Up to 1.5TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	64GB, 32GB, 16GB, 8GB, 4GB
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C612 chipset
SAS	SAS3 (12Gbps) via LSI 3108 AOC; HW RAID
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Connectivity	Quad 10GBase-T LAN with Intel® X540 Ethernet Controller
Graphics	ASPEED AST2400 BMC
Input / Output
LAN	4x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB 3.0 ports (rear) 2x USB 2.0 ports (rear) 1x Type A
Video	1x VGA Connector
Serial Port	1x Fast UART 16550 port / 1 Header
Expansion Slots
PCI-Express	2x PCI-E 3.0 x16 slots 3x PCI-E 3.0 x8 slots Slot 3 & 4 occupied by controller and JBOD Expansion Port
Drive Bays
Hot-swap	12x 3.5" Hot-swap SAS3/SATA3 drive bays
Power Supply	920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
Management
Software	SuperDoctor® 5 Intel® Node Manager 3.0 Watch Dog NMI SMCBU and SMM Optional IPMI 1.5 / 2.0
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
Standard Parts List
	Part Number	Qty	Description
Motherboard / Chassis	MBD-X10DRi-T4+	1	Super X10DRi-T4+ Motherboard
	CSE-826BE1C-R920LPB	1	2U Chassis
Backplane	BPN-SAS3-826EL1	1	SAS 12G single expander backplane, with LSISAS3x28 expander, support 12x 3.5
Power Supply	PWS-920P-SQ	2	920W 1U Redundant PWS W/ Quiet Mode
Cable	CBL-SAST-0532	4	Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
Heatsink / Retention	SNK-P0048P	1	2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Square ILM MB
Heatsink / Retention	SNK-P0048AP4	1	2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32
Add On Card	AOC-S3108L-H8IR-O-P	1	SAS-3, GEN-3 RAID card. Supports 12Gb and RAID 0, 1, 5, 6, 10, 50, and 60. Includes 2GB memory
Drive Tray(s)	MCP-220-00075-0B	12	Black 3.5" HDD tray
Add On Module	AOM-SAS3-8I8E-LP	1	8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket
