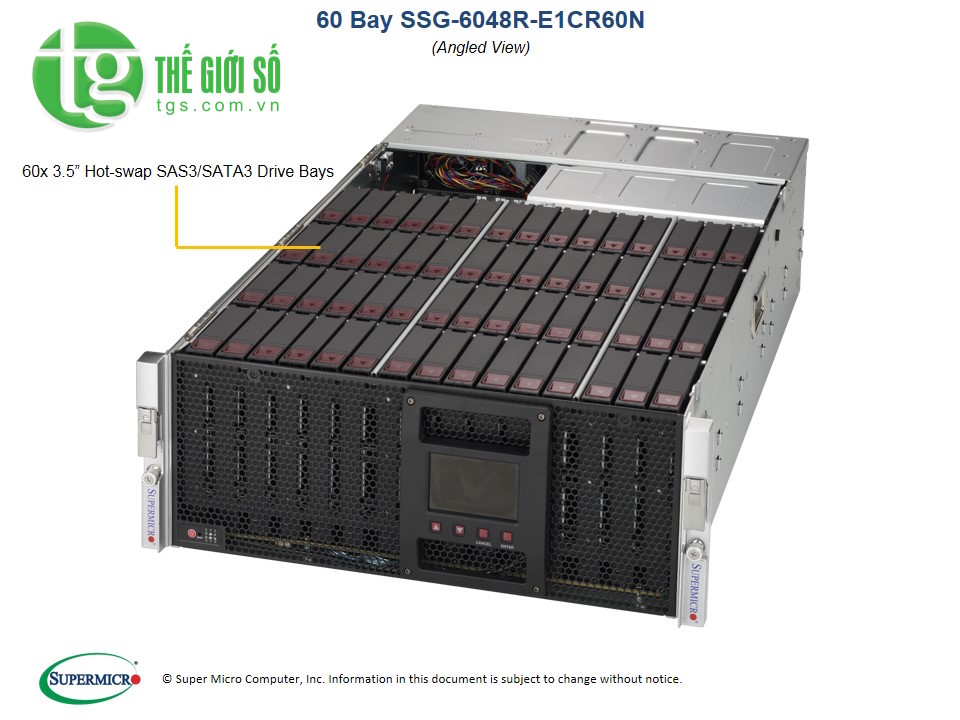

Supermicro SuperStorage Server 6048R-E1CR60N CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES Supermicro SuperStorage Server 6048R-E1CR60N

1. Dual socket R3 (LGA 2011) supports

    Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP)

2. Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots

3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8

4. SIOM for flexible networking options

5. 60x 3.5" Hot-swap SAS3/SATA3 drive

    bays; 2x 2.5" rear Hot-swap SATA drive bays; optional 6 NVMe bays

6. LSI 3108 SAS3 HW RAID controller

7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN

8. 5x 8cm hot-swap redundant PWM fans PWM fans

9. 2000W Redundant Power Supplies Titanium Level (96%) Certified

10. Front 3.5" LCD display

Specifications Supermicro SuperStorage Server 6048R-E1CR60N

Processor/Cache

CPU

Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) *

Dual Socket R3 (LGA 2011)

Cores / Cache

Up to 22 Cores† / Up to 55MB† Cache

System Bus

QPI up to 9.6 GT/s

Note† BIOS version 2.0 or above is required

Note* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory

Memory Capacity

24x 288-pin DDR4 DIMM slots

Up to 3TB† ECC 3DS LRDIMM, 768 ECC RDIMM

Memory Type

2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

RDIMM: 32GB, 16GB, 8GB, 4GB

LRDIMM: 64GB, 32GB

3DS LRDIMM: 128GB

Memory Voltage

1.2 V

Error Detection

Corrects single-bit errors

On-Board Devices

Chipset

Intel® C612 chipset

SAS

SAS3 (12Gbps) via LSI 3108 (optional SuperCap)

HW RAID 0, 1, 5, 6, 10, 50, 60

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2400 BMC

Network Controllers

SIOM support for flexible networking options

Graphics

ASPEED AST2400 BMC

Input / Output

USB

3 USB 3.0 ports (2 rear + 1 Type A)

VGA

1 VGA port

Serial Port / Header

1 Fast UART 16550 port / 1 Header
