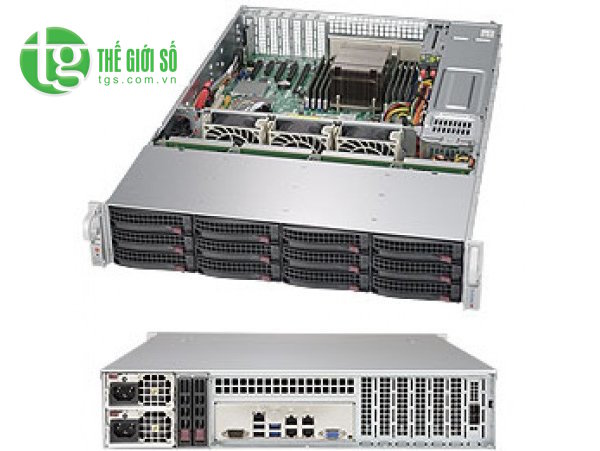

Supermicro SuperStorage Server 6028R-E1CR12T CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ
KEY FEATURES Supermicro SuperStorage Server 6028R-E1CR12T
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
2. Up to 1TB reg. ECC DDR4 2133MHz; 16x DIMM slots
3. 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8
4. Dual 10GBase-T LAN w/ Intel® X540
5. 12x 3.5" Hot-swap SAS3/SATA3 drive bays; 2x 2.5" optional Hot-swap drive bays (rear)
6. SAS3 (12Gbps) via LSI 3108 onboard HW RAID
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 3x 8cm hot-swap redundant PWM cooling fans
9. 920W Redundant Power Supplies Platinum Level (94%)
Specifications Supermicro SuperStorage Server 6028R-E1CR12T
Product SKUs |
|
| SSG-6028R-E1CR12T | SuperServer 6028R-E1CR12T (Black) |
Motherboard |
|
| Super X10DRH-CT | |
Processor/Cache |
|
| CPU | Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011) |
| Cores / Cache | Up to 18 Cores / Up to 45MB Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
System Memory |
|
| Memory Capacity | 16x 288-pin DDR4 DIMM slots Up to 1TB ECC LRDIMM, 512GB ECC RDIMM |
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
On-Board Devices |
|
| Chipset | Intel® C612 chipset |
| SAS | SAS3 (12Gbps) via LSI 3108 onboard HW RAID |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Network Controllers | Intel® X540 Dual Port 10GbE Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | ASPEED AST2400 |
Input / Output |
|
| LAN | 2x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port |
| USB | 2x USB 3.0 ports (rear) 2x USB 2.0 ports (rear) 1x Type A |
| VGA | 1x VGA port |
| Serial Port / Header | 1x Fast UART 16550 port / 1 Header |
System BIOS |
|
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI |
Chassis |
|
| Form Factor | 2U Rackmount |
| Model | CSE-826BE1C-R920LPB |
Dimensions and Weight |
|
| Width | 17.2" (437mm) |
| Height | 3.5" (89mm) |
| Depth | 25.5" (647mm) |
| Weight | Net Weight: 58 lbs (26.3 kg) Gross Weight: 34 lbs (15.4 kg) |
| Available Colors | Black |
Front Panel |
|
| Buttons | Power On/Off button System Reset button |
| LEDs | Power status LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power fail LED |
Expansion Slots |
|
| PCI-Express | 1x PCI-E 3.0 x16 slot 6x PCI-E 3.0 x8 slots |
Drive Bays |
|
| Hot-swap | 12x 3.5" Hot-swap SAS3/SATA3 drive bays |
| Optional | 2x 2.5" Hot-swap HDD bays (rear) |
Backplane |
|
| SAS3/SATA3 single expander per backplane | |
System Cooling |
|
| Fans | 3x 8cm hot-swap redundant PWM cooling fans |
Power Supply with Power Distributor |
|
| 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output | 4 Amp @ +5V standby 75 Amp @ +12V |
| Certification | Platinum Certified |
Operating Environment / Compliance |
|
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Standard Parts List |
|||
| Part Number | Qty | Description | |
| Motherboard / Chassis | MBD-X10DRH-CT | 1 | Super X10DRH-CT Motherboard |
| CSE-826BE1C-R920LPB | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-826EL1 | 1 | SAS 12G single expander backplane, with LSISAS3x28 expander, support 12x 3.5 |
| Cable | CBL-SAST-0532 | 2 | Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. |
| Heatsink / Retention | SNK-P0048PS | 2 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB |
| Fan | FAN-0126L4 | 3 | 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing |
| Drive Tray(s) | MCP-220-00075-0B | 12 | Black 3.5" HDD tray |
Optional Parts List |
|||
| Part Number | Qty | Description | |
| 3108 Cache Protection | BTR-TFM8G-LSICVM02 MCP-240-00127-0N BKT-BBU-BRACKET-05 |
1 1 1 |
SuperCap Module Convert Kit Mounting PCIe Card |
| Rear Window | MCP-220-82609-0N | - | Rear hot-swap drive bay for 2x 2.5" drives |
