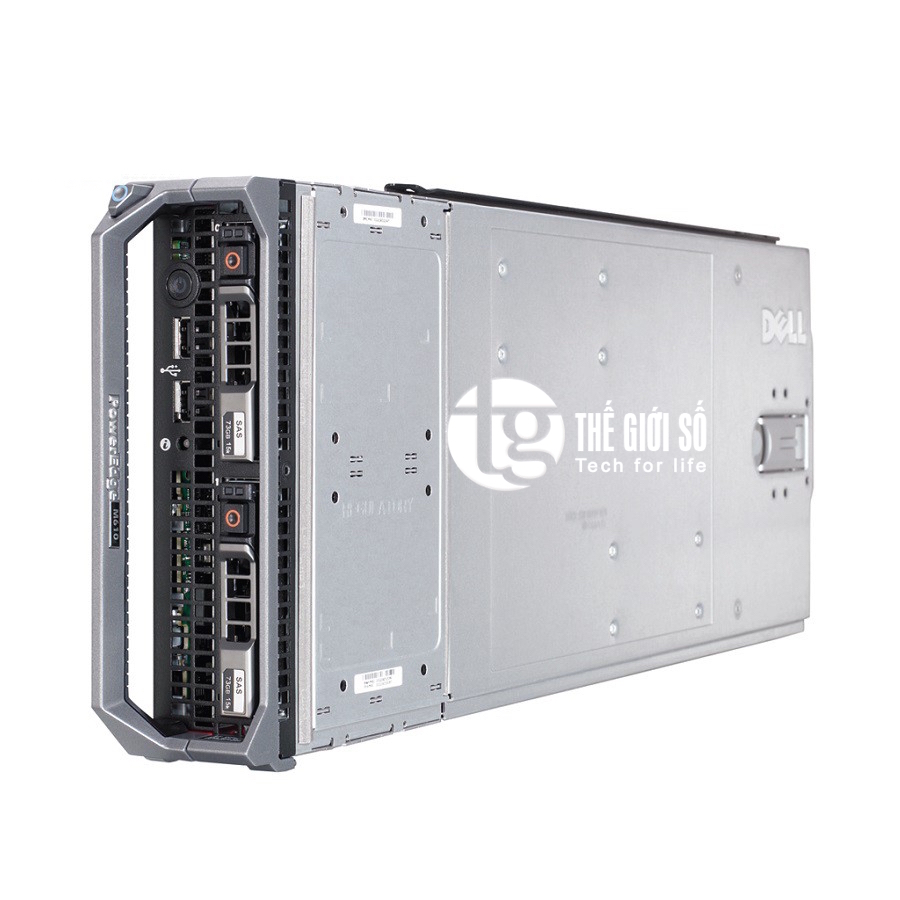

DELL POWEREDGE M610 BLADE SERVER - CPU 2x X5570


Số lượng:
Giá bán: 0 VND

DELL POWEREDGE M610 BLADE SERVER 2x X5570 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES DELL POWEREDGE M610 BLADE SERVER - CPU 2x X5570 (2x 4 Core 2.93Ghz, 8M Cache)/ Ram 32GB DDR3/ HDD 0xGB SAS 2,5".

Processor

    Intel® Xeon® 5500 series Dual and Quad Core 60W, 80W, and 95W TDP options

Operating System

    Microsoft® SQL Server 2008 R2
    Microsoft® Windows® Essential Business Server 2008
    Microsoft Windows® Server 2008 SP2, x86/x64 (x64 includes Hyper-V™ )
    Microsoft Windows® Server 2008 R2, x64 (includes Hyper-V™ v2)2
    Microsoft® Windows® HPC Server 2008
    Novell® SUSE® Linux Enterprise Server
    Red Hat® Enterprise Linux
    Sun® Solaris™

Chipset

    Intel 5520

Memory

    12 DIMM slots
    1GB/2GB/4GB/8GB ECC DDR3
    Support up to 192GB3 using 12 x 16GB DIMMs

Embedded Hypervisor (Optional)

    Citrix® XenServer®
    Microsoft® Windows Server® 2008, with Hyper-V™
    VMware® vSphere™ 4.1 (including VMware ESX® 4.1 or VMware ESXi™ 4.1)

Storage

    Internal Hot-Swappable Drives:

    2.5" SAS (10K rpm): 36GB, 73GB , 146GB , 300GB , 600GB
    2.5" SAS (15K rpm): 36GB, 73GB or 146GB
    2.5” SATA (7.2k rpm): 80GB, 120GB, 160GB or 250GB
    Solid State Drives (SSD): 25GB, 50GB, 100GB, 150GB

    Maximum Internal Storage

    Up to 600GB per blade via two x 2.5" 300GB4 hot-plug SAS hard drive

    External Storage:

    Dell/EqualLogic PS5000 Series
    PowerVault™ NX1950 Unified Storage Solution
    PowerVault MD3000i

    Dell/EMC products:

    Dell/EMC fibre channel and/or iSCSI external storage, including Dell/EMC CX300, CX3-10c , CX3-20, CX3-40, and CX3-80; CX4-120, CX4-240, CX4-480 and CX4-960

Drive Bays

    Two 2.5” SAS/Solid State Hot-Swappable Drives

    2.5" 500GB4 SATA

    3.5" 2.0TB4 SATA

I/O Mezzaine Card Options

    Fully populated mezz card slots and switch modules will yield 3 highly available, redundant I/O fabrics for each blade.

    Available options:

    1Gb & 10Gb Ethernet:

    Dual-Port Broadcom Gb Ethernet w/ TOE (BCM-5709S)
    Quad-Port Intel Gb Ethernet (82576)
    Quad-Port Broadcom Gb Ethernet (BCM-5709S)
    Dual-Port Broadcom 10Gb Ethernet (BCM-57711)

    10Gb Enhanced Ethernet & Converged Network Adapters (CEE/DCB):

    Dual-Port Qlogic® Converged Network Adapter (QME8142) - Supports CEE/DCB 10GbE + FCoE

    Fibre Channel:

    Dual-Port QLogic FC8 Fibre Channel Host Bus Adapter (HBA) (QME2572)
    Dual-Port Emulex FC8 Fibre Channel Host Bus Adapter (HBA) (LPe1205-M)

    Infiniband:

    Dual-Port Mellanox ConnectX Quad Data Rate (QDR) InfiniBand
    Dual-Port Mellanox ConnectX Dual Data Rate (DDR) InfiniBand

RAID Controllers

    Internal:

    PERC H200 Modular (6Gb/s)
    PERC H700 Modular (6Gb/s) with 512MB battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache
    SAS 6/iR Modular
    CERC 6/i Modular
    PERC 6/i Modular with 256MB battery-backed cache

Communications

    Two embedded Broadcom® NetXtreme II™ 5709 Gigabit Ethernet NICs with failover and load balancing TOE (TCPIP Offload Engine) supported on Microsoft® Windows Server 2003, SP1 or higher with Scalable Networking Pack. iSCSI Offload supported on Microsoft Windows Server 2008, Microsoft Windows Server 2003 SP1 or higher, Red Hat® Linux® Enterprise 5, and SUSE LINUX Enterprise Server 10. Scalable Networking Pack for Microsoft Windows Server 2003 is not required.

    Boot from SAN (iSCSI and FC) supported

    Optional add-in NICs:

    Dual Port 10GB Enhanced Intel Ethernet Server Adapter X520-DA2 (FcoE Ready for Future Enablement)
    See I/O Mezzanine Card Options
    Intel® Gigabit ET Dual Port Server Adapter
    Intel® Gigabit ET Quad Port Server Adapter

    Optional add in HBAs:

    See I/O Mezzanine Card Options

    Fully populated mezz card slots and switch modules will yield 3 highly available, redundant I/O fabrics for each blade.

Power

    Supplied by Dell’s M1000e Blade Chassis

Video Card

    Matrox G200

Chassis

    The PowerEdge M610 blade server fits in the M1000e blade enclosure. A total of 8 full-height or 16 half-height blades can fit into every M1000e enclosure. Full height and half height blades can be mixed in M1000e enclosures with no limitations.

    M610 Dimensions and Weight (blade only):

    Height: 18.9 cm (7.4 in)

    Width: 5 cm (2 in)

    Depth: 48.6 cm (19.2 in)

    Weight (Maximum Configuration): 5.2-6.4 kg (11.5-14.0 lb)

    Full height blade fits inside the M1000e Blade Enclosure

    Maximum of 8 per blade chassis

Management

    Dell OpenManage featuring Dell Management Console

    Lifecycle Controller

    iDRAC6 Enterprise

    VFlash

Regulatory
Regulatory Model: HHB

Regulatory Type: HHB001

Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
