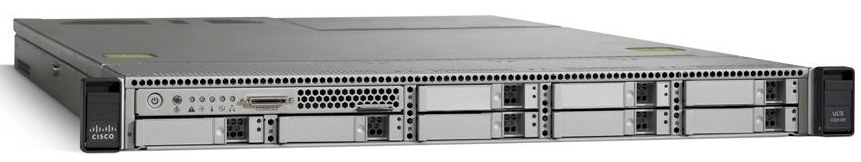

MÁY CHỦ CISCO UCS C220 M3 E5-2650 V2 CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ
KEY FEATURES MÁY CHỦ SERVER CISCO UCS C220 M3 E5-2650 v2
* 1x Intel® Xeon® 8-Core Processor E5-2650 v2, 2.6GHz, 20MB, 8.0GT/s QPI
* 1x 8GB DDR3 1333 240-Pin DDR3 ECC RDIMMs/UDIMMs (PC3 10666)
* Non x 8 HDD SSD/SATA/SAS Enterprise 2.5"
* Embedded SW RAID 0/1/10/5 8 ports SAS/SATA
* 1x Integrated Dual-port Gigabit Ethernet (2port)
* 1x Power supply 650Watts
MÁY CHỦ SERVER CISCO UCS C220 M3 E5-2650 v2
|
Item |
Specification |
|
Processors |
• 1 or 2 Intel Xeon processor E5-2600 or E5-2600 v2 product families
• For a complete list of processor options, please refer to the LFF SpecSheet or SFF SpecSheet
|
|
Memory |
• 16 DIMM slots
• Support for DDR3 registered DIMMs
• Support for DDR3 low-voltage DIMMs
• Advanced error-correcting code (ECC)
• Mirroring option
|
PCIe slots |
• 2 PCIe Generation 3.0 slots available
• I/O performance and flexibility with one x8 half-height and half-length slot, and one x16 full-height and half-length slot
|
RAID Card |
• For a complete list of RAID options, please refer to the corresponding SFF SpecSheet or LFF SpecSheet
|
Hard drives |
Up to 8 front-accessible, hot-swappable, 2.5-inch SAS, SATA or SSD or up to 4 front-accessible, hot-swappable, 3.5-inch SAS, SATA drives |
Hard disk options |
2.5 inch "SFF" drive options: • For a complete list of drive options, please refer to the SpecSheet
3.5 inch "LFF" drive options: • For a complete list of drive options, please refer to the SpecSheet
|
Cisco Flexible Flash (FlexFlash) |
• The server supports up to two internal 16GB Cisco FlexFlash drives (SD cards)
• The first SD card is preloaded with four virtual drives. The four virtual drives contain, respectively, the Cisco Server Configuration Utility, the Cisco Host Upgrade Utility, the Cisco C-Series server drivers set, and a blank virtual drive on which you can install an OS or a hypervisor. The second SD card is blank and can be used to mirror the first.
|
|
Internal USB |
The server supports one internal USB flash drive |
Cisco UCS Integrated Management Controller |
• Integrated Emulex Pilot-3 Baseboard Management Controller (BMC)
• IPMI 2.0 compliant for management and control
• One 10/100/1000 Ethernet out-of-band management interface
• CLI and WebGUI management tool for automated, lights-out management
• KVM
|
|
Front-panel connector |
One KVM console connector (supplies 2 USB, 1 VGA, and 1 serial connector) |
|
Front-panel locator LED |
Indicator to help direct administrators to specific servers in large data center environments |
|
Additional rear connectors |
Additional interfaces including a VGA video port, 2 USB 2.0 ports, an RJ45 serial port, 1 Gigabit Ethernet management port, and dual 1 Gigabit Ethernet ports |
|
Physical dimensions |
1RU: 1.7 x 16.9 x 28.5 in. (4.32 x 43 x 72.4 cm) |
|
Temperature: Operating |
32 to 104°F (0 to 40°C) (operating, sea level, no fan fail, no CPU throttling, turbo mode) |
|
Temperature: Nonoperating |
-40 to 158°F (-40 to 70°C) |
|
Humidity: Operating |
10 to 90% noncondensing |
|
Humidity Nonoperating |
5 to 93% noncondensing |
|
Altitude: Operating |
0 to 10,000 ft (0 to 3000m); maximum ambient temperature decreases by 1°C per 300m) |
|
Altitude: Nonoperating |
0 to 40,000 ft (12,000m) |
