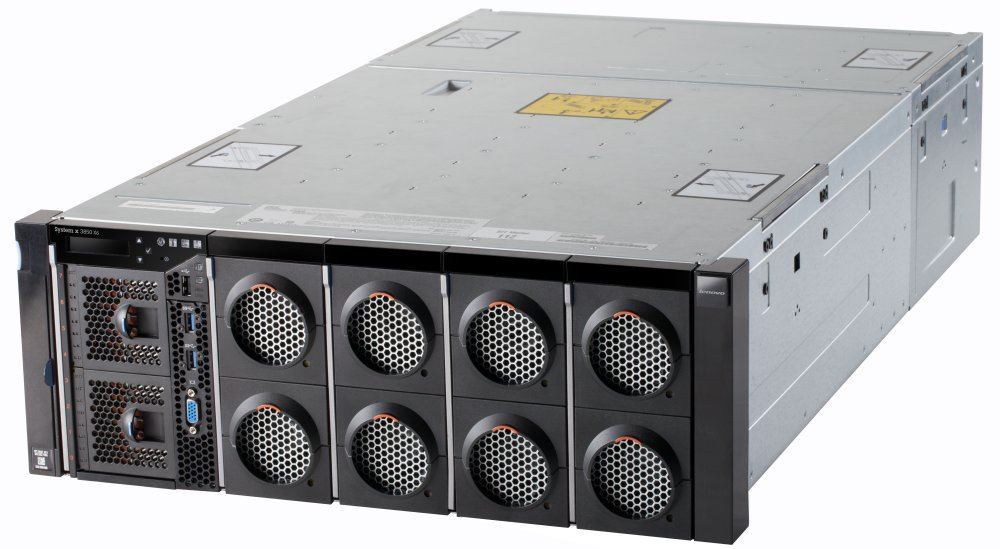

SERVER LENOVO x3850 X6 Compute Book Xeon 8C E7-4820v2 (6241-B1A) CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ
- 2x Compute Book Xeon 8C E7-4820v2 105W 2.0GHz/1333MHz/16MB
- 32GB (4 X 8GB) PC3L-12800 CL11 ECC DDR3 1600MHz LP RDIMM
- None ship standard (2.5")
- ServeRAID M5210 12 Gbps SAS/SATA Controller (RAID 0, 1, 10 )
- Intel I350-T4 ML2 Quad Port GbE Adapter
- 8 x 2.5" hot-swap SAS/SATA/SSD bays
- Redundant hot-swap 900 W AC (2/4)
- Rack (4U), Rail Kit
- Warranty: 3 Year Onsite Repair 24x7 4 Hour Response
KEY FEATURES MÁY CHỦ SERVER LENOVO x3850 X6 Compute Book Xeon 8C E7-4820v2 (6241-B1A)
| MODEL |
Lenovo System x3850 X6
|
6241-B1A
|
| Processor |
2x Compute Book Xeon 8C E7-4820v2 105W 2.0GHz/1333MHz/16MB
Models with E7 v2 processors: Up to four Intel Xeon E7-4800 v2 or E7-8800 v2 processors |
| Chipset |
Intel C602J chipset. |
| Memory |
32GB (4 X 8GB) PC3L-12800 CL11 ECC DDR3 1600MHz LP RDIMM
Up to 96 DIMM sockets (24 DIMMs per processor, installed in the Compute Book); With RDIMMs: Up to 1.5 TB with 96x 16 GB RDIMMs and four processors; With LRDIMMs: Up to 6 TB with 96x 64 GB LRDIMMs and four processors |
| Storage |
Hard Drive : None |
| Raid Controller |
ServeRAID M5210 12 Gbps SAS/SATA Controller (RAID 0, 1, 10 ) |
| Slot types |
Up to 11 PCIe slots plus dedicated Mezzanine LOM slot. The slots are as follows:
Two PCIe 3.0 x8 slots for internal RAID controllers (Storage Book)
Two PCIe 3.0 x16 slots (x16-wired), half length, full height (Primary I/O Book)
One PCIe 3.0 x16 (x8-wired), half length, full height (Primary I/O Book)
One ML2 slot for network adapter (PCIe 3.0 x8) (Primary I/O Book)
Two optional I/O Books, each with three slots, all full height (using these I/O Books requires four processors). Optional books are hot-swap capable.
Optional I/O Books can be either of the following options:
Half-length I/O Book: Two PCIe 3.0 x8 slots, one PCIe 3.0 x16 slot.
Full-length I/O Book: Two PCIe 3.0 x16, one PCIe 2.0 x4 slot; two aux power connectors: 150 W and 75 W. Supports one double-wide GPU up to 300 W. |
| Network Controller |
Intel I350-T4 ML2 Quad Port GbE Adapter
|
| Ports |
Front: Two USB 3.0, one USB 2.0, and one DB-15 video ports. Rear: Four USB 2.0, one DB-15 video, one DB-9 serial, and one 1 GbE RJ-45 systems management. Internal: USB 2.0 port for embedded hypervisor. |
| System Management |
UEFI, Integrated Management Module II (IMM2) with remote presence feature, Predictive Failure Analysis, Light Path Diagnostics, Automatic Server Restart, Lenovo XClarity Administrator, IBM Systems Director and Active Energy Manager™, and ServerGuide. |
| Power Supply |
Redundant hot-swap 900 W AC (2/4) |
| Driver bay |
8 x 2.5" hot-swap SAS/SATA/SSD bays
(Optional: DVD-ROM, DVD-RW) |
| Form Fact |
Rack (4U), Rail Kit |
| OS Support |
Microsoft Windows Server 2012 R2, 2012, and 2008 R2, RHEL 6 and 7, SLES 11 and 12, and VMware vSphere ESXi |
| Warranty |
3 Year Onsite Repair 24x7 4 Hour Response |
