SERVER LENOVO IBM System Storage DS3512 Express Single Controller Storage

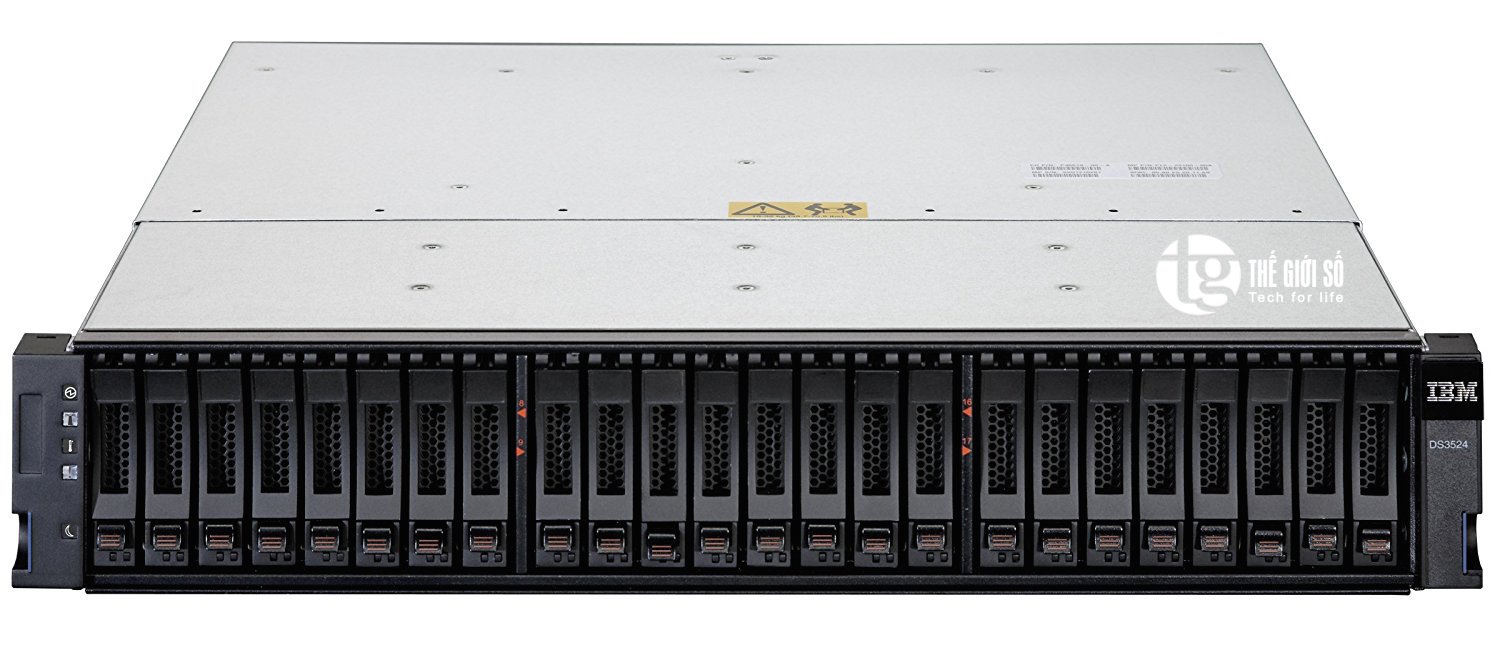

SERVER LENOVO IBM System Storage DS3524 Express Single Controller CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ
KEY FEATURES MÁY CHỦ SERVER LENOVO IBM System Storage DS3512 Express Single Controller Storage
|
MODEL |
IBM System Storage DS3512 |
|
|
1746A2S |
||
|
|
IBM System Storage DS3512 Express Single Controller Storage System |
|
|
Cache |
1 GB cache per controller with 2 GB upgrade (battery-backed) |
|
|
Drive interfacee |
1x 6Gb SAS 2 Port Daughter Card |
|
|
Cable |
Option SAS Cable |
|
|
Host interface |
Three options: |
|
|
Four or eight 6 Gbps SAS ports |
||
|
Eight 8 Gbps FC ports and four 6 Gbps SAS ports |
||
|
Eight 1 Gbps iSCSI ports and four 6 Gbps SAS ports |
||
|
Storage |
0x HDD 3.5" SAS/SATA Hotswap |
|
|
12 bay (3.5') Hot swap, Supports 6 Gbps SAS 3.5" drives: |
||
|
300 GB 15k rpm, 450 GB 15k rpm, 600 GB 15k rpm, 1 TB 7.2k rpm Nearline, 2 TB 7.2k rpm Nearline, 600 GB 15k rpm SED |
||
|
RAID controller |
Raid ( 0, 1, 3, 5, 6, 10) |
|
|
Maximum drives supported |
Up to 96 drives—high performance SAS drives, nearline SAS drives, and SED SAS drives |
|
|
EXP3512 (2U 12 3.5-in drives) and EXP3524 (2U 24 2.5-in drive) enclosures, which can be intermixed behind a DS3500 enclosure |
||
|
power supplies |
Dual redundant, hot-swappable |
|
|
Rack support |
2U, 19-inch, industry-standard rack |
|
|
Management software |
IBM System Storage DS® Storage Manager |
|
|
SAN support |
Supported IBM FC switches and directors, and IP switches |
