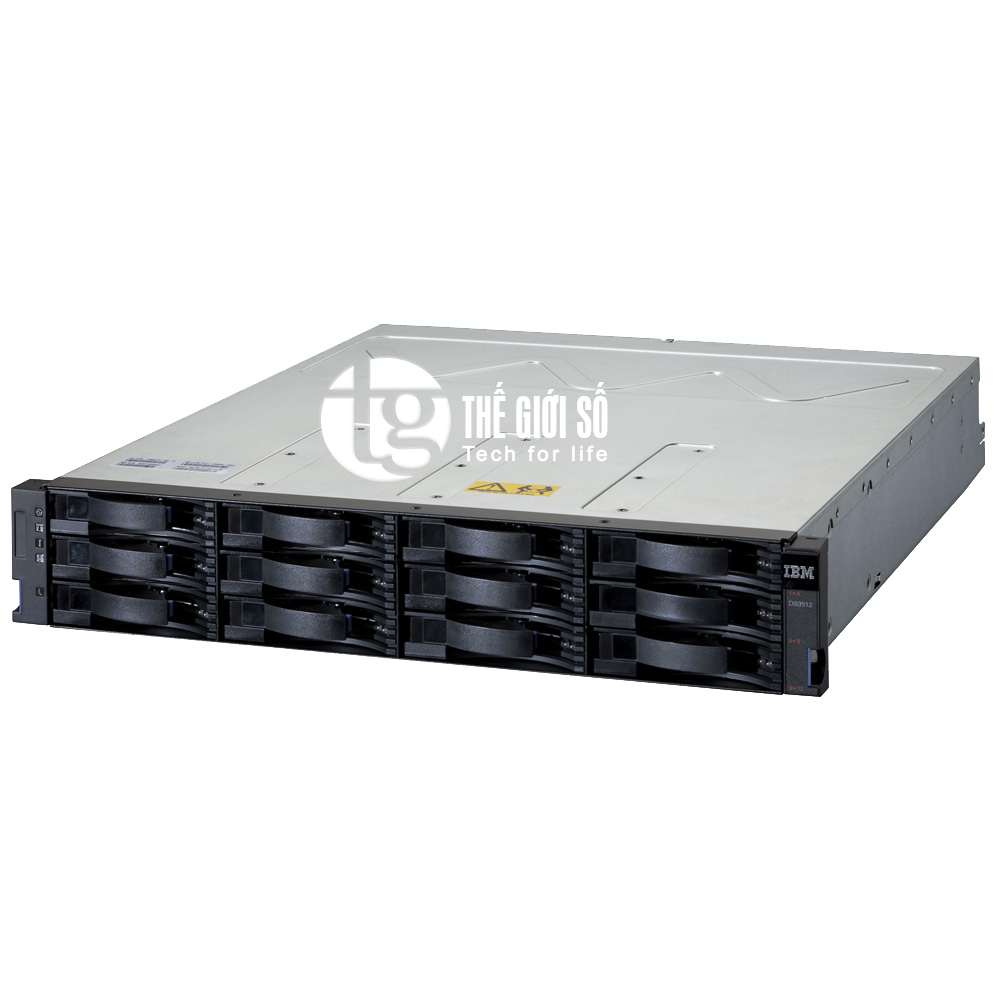

SERVER IBM SYSTEM STORAGE DS3512 EXPRESS SINGLE CONTROLLER CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ
KEY FEATURES MÁY CHỦ SERVER IBM SYSTEM STORAGE DS3512 EXPRESS SINGLE CONTROLLER
|
MODEL |
IBM System Storage DS3512 |
|
|
1746A2S |
|
|
|
|
IBM System Storage DS3512 Express Single Controller Storage System |
|
|
|
||
|
Cache |
1 GB cache per controller with 2 GB upgrade (battery-backed) |
|
|
Drive interfacee |
1x 6Gb SAS 2 Port Daughter Card |
|
|
Cable |
Option SAS Cable |
|
|
Host interface |
Three options: |
|
|
Four or eight 6 Gbps SAS ports |
|
|
|
Eight 8 Gbps FC ports and four 6 Gbps SAS ports |
|
|
|
Eight 1 Gbps iSCSI ports and four 6 Gbps SAS ports |
|
|
|
Storage |
0x HDD 3.5" SAS/SATA Hotswap |
|
|
12 bay (3.5') Hot swap, Supports 6 Gbps SAS 3.5" drives: |
|
|
|
300 GB 15k rpm, 450 GB 15k rpm, 600 GB 15k rpm, 1 TB 7.2k rpm Nearline, 2 TB 7.2k rpm Nearline, 600 GB 15k rpm SED |
|
|
|
RAID controller |
Raid ( 0, 1, 3, 5, 6, 10) |
|
|
Maximum drives supported |
Up to 96 drives—high performance SAS drives, nearline SAS drives, and SED SAS drives |
|
|
EXP3512 (2U 12 3.5-in drives) and EXP3524 (2U 24 2.5-in drive) enclosures, which can be intermixed behind a DS3500 enclosure |
|
|
|
power supplies |
Dual redundant, hot-swappable |
|
|
Rack support |
2U, 19-inch, industry-standard rack |
|
|
Management software |
IBM System Storage DS® Storage Manager |
|
|
SAN support |
Supported IBM FC switches and directors, and IP switches |
