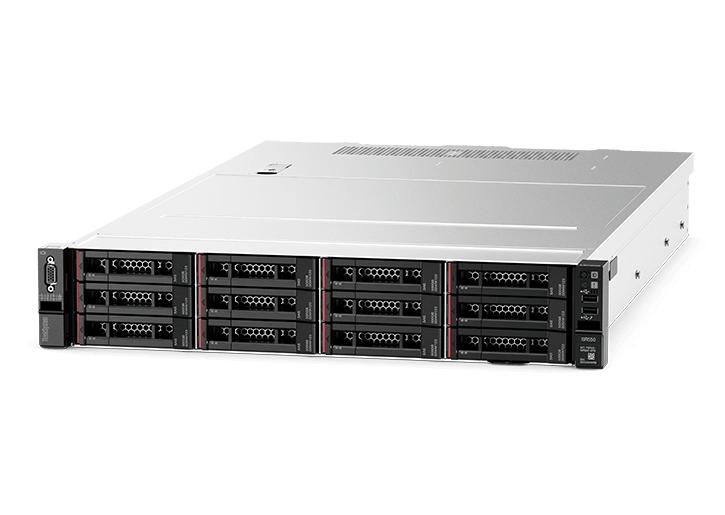

MÁY CHỦ LENOVO THINKSYSTEM SR550 SILVER 4110, RAM 8GB, 8X2.5"

- Processors : 1x Xeon Silver 4110 (8C/2.1GHz/11MB/85W)
- Memory : 1x 8GB RDIMM DDR4-2666
- Hard Drives : Option
- Drive Bays : 8x 2.5" SATA/SAS HS Up to 16x 2.5"
- Raid Controller : 1x 530-8i (Chip LSI SAS3408, SAS, SATA, Raid 0, 1, 10, 5, 50)
- Network Controller : 2x 1GbE ports + 1x dedicated 1GbE management port (std); 1x opt. 10GbE LOM
- PCI-Express Slots : 1x LP x8
- Optical Drive : No internal optical bay. Optional USB DVD±RW optical drive
- Graphics : Integrated Matrox G200 in XClarity Controller
- Powe Supply : 1x 750W Platinum
- Rail Kit : Server Rack 2U
- Form Factor : 2U Rack

Tech Specs

Form Factor/Height:   2U Rack

Processor (max)/Cache (max):  Up to 2x Intel® Xeon® Platinum processors, up to 125W

Memory:  Up to 768GB in 12x slots, using 64GB DIMMs; 2666MHz TruDDR4

Expansion Slots:  Up to 6x PCIe 3.0 (with 2x processors) via multiple riser options (either all-PCIe, or PCIe and ML2)

Drive Bays:  Up to 16x HS or 8x SS LFF; plus up to 2x mirrored M.2 boot (opt. RAID 1)

HBA/RAID Support:  Software RAID std. (up to 8 ports);up to 16-port HBAs/or HW RAID with flash cache

Security and Availability Features:  TPM 1.2/2.0; PFA; HS/redundant drives and PSUs; operating temp up to 45°C (with limitations); front-access diagnostics via dedicated USB port,opt. redundant cooling

Network Interface:  2x 1GbE ports + 1x dedicated 1GbE management port (std); 1x opt. 10GbE LOM

Power:  2x hot-swap/redundant (Energy Star 2.1): 550W/750W 80 PLUS Platinum; or 750W 80 PLUS Titanium

Systems Management:  XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management

Operating Systems Supported:   Microsoft Windows Server, SLES, RHEL, VMware vSphere. Visit lenovopress.com/osig for details.
