SERVER HPE ProLiant DL580 Gen8


Mã sản phẩm: Vui lòng liên hệ
Số lượng:
Giá bán: 0 VND

SERVER HPE ProLiant DL580 Gen8 CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ

HPE ProLiant DL580 Gen8 Server là máy chủ ở cấp độ enterprise-grade 4 socket CPU x86 cung cấp mang tính đột phá, độ tin cậy vững chắc, củng cố thuyết phục và quản lý hiệu quả. Đó là lý tưởng cho các doanh nghiệp quan trọng, kinh doanh thông minh, và các ứng dụng cơ sở dữ liệu.

Với bộ vi xử lý Intel® Xeon® E7-4800/8800 v2, các HP DL580 Gen8 cung cấp kết quả với tốc nhanh với nâng cao hiệu suất xử lý, nhiều khe cắm bộ nhớ (96 DIMMs), băng thông IO lớn hơn (9 PCIe Gen3.0 slots), và tăng hiệu suất lưu trữ (12 Gbps SAS). HPE ProLiant DL580 Gen8 có tính năng bảo mật và bảo vệ dữ liệu cho hệ thống ứng phó mà doanh nghiệp của bạn có thể phụ thuộc vào. Với khả năng quản lý thông minh thông qua HPE OneView, iLO 4, và các tính năng sử dụng cảm hứng, bạn sẽ có được quản lý cơ sở hạ tầng nhanh hơn, chi phí thấp hơn.

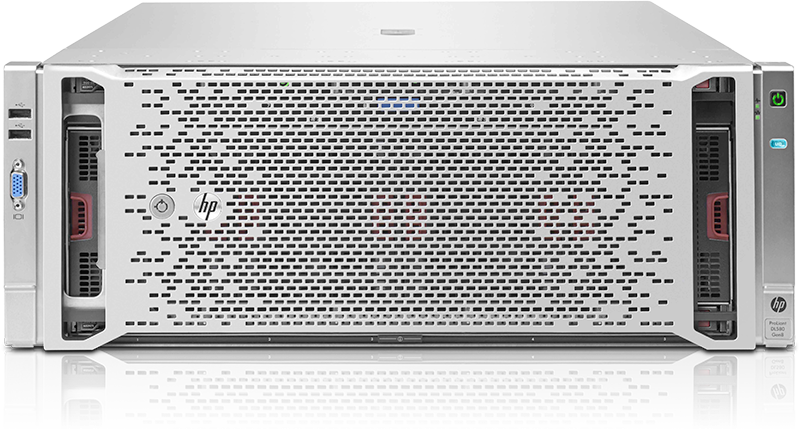

Mặt trước:

Mặt sau:

1.

One front video port

1.

NIC ports

2.

Server lifting handles

2.

Serial port

3.

Universal Tool-less "Snap in" sliding rail solution

3.

Video port

4.

4U (7" height) form factor

4.

Four (4) USB ports

5.

Support for up to four Intel® Xeon® 4800/8800 v2 Processors

5.

Hot Plug Redundant Power Supplies (2 or 4 depending on the model)

6.

Up to 9 slots supported; all full-length/full-height

6.

9 PCIe 3.0 IO Expansion Slots

7.

Quick removal access panel

7.

iLO connector

8.

Quick release lever for Processor and Memory drawer





9.

Slide out Systems Insight Display





10.

Power button





11.

Health and Network LEDs





12.

Unit ID LED





13.

Front accessible Processor and memory drawer





14.

4 Hot Plug Fans (eight rotors with N+1 redundancy)





15.

Asset tag





16.

Support for up to 10 Small Form-Factor (SFF) drives





17.

Two front accessible USB 2.0 ports

Thông số kỹ thuật HPE ProLiant DL580 Gen8

Processor Fifteen-Core Processors
Intel® Xeon® E7-4890v2 (2.8GHz/15-core/37.5MB/155W) Processor
Intel® Xeon® E7-4880v2 (2.5GHz/15-core/37.5MB/130W) Processor
Intel® Xeon® E7-4870v2 (2.3GHz/15-core/30MB/130W) Processor
Intel® Xeon® E7-8880Lv2 (2.2GHz/15-core/37.5MB/105W) Processor
NOTE: This is a power optimized processor
Twelve-Core Processors
Intel® Xeon® E7-4860v2 (2.6GHz/12-core/30MB/130W) Processor
Intel® Xeon® E7-4850v2 (2.3GHz/12-core/24MB/105W) Processor
Intel® Xeon® E7-8857v2 (3.0GHz/12-core/30MB/130W) Processor
NOTE: This is frequency optimized processor suited high performance computing applications
Ten-Core Processors
Intel® Xeon® E7-4830v2 (2.2GHz/10-core/20MB/105W) Processor
Intel® Xeon® E7-8891v2 (3.2GHz/10-core/37.5MB/155W) Processor
NOTE: This is a lower core, higher frequency processor for software licensing cost optimization
Eight-Core Processors
Intel® Xeon® E7-4820v2 (2.0GHz/8-core/16MB/105W) Processor
Six-Core Processors
Intel® Xeon® E7-4809v2 (1.9GHz/6-core/12MB/105W) Processor
Intel® Xeon® E7-8893v2 (3.4GHz/6-core/37.5MB/155W) Processor
NOTE: This is a lower core, higher frequency processor for software licensing cost optimization
Cache Memory 37.5MB (1 x 37.5MB) Level 3 cache (E7-4890 v2, E7-8880Lv2, E7-4880v2, E7-8891v2, E7-8893v2)
30MB (1 x 30MB) Level 3 cache (E7-8857v2, E7-4870v2, E7-4860v2)
24MB (1 x 24MB) Level 3 cache (E7-4850v2)
20MB (1 x 20MB) Level 3 cache (E7-4830v2)
16MB (1 x 16MB) Level 3 cache (E7-4820v2)
12MB (1 x 12MB) Level 3 cache (E7-4809v2)
Chipset Intel® C602J Chipset
Intel® Xeon® E7-4800/8800 v2 Processor Family
Upgradeability Up to:
Four (4) processors
Ninety-six (96) DDR3 DIMM slots
Nine (9) PCIe Gen3 expansion slots
NOTE: PCIe slot availability is dependent on the number of processors installed. Please refer to
the "Expansion slots" section for more details.
Ten (10) SFF internal HDD/SSD drive bays
Memory Type HPE SmartMemory
DDR3 Registered (RDIMM) and Load Reduced (LRDIMM)
DIMM Slots Available 96 DIMM slots
Maximum 6TB (96 x 64GB)
Storage Controller HPE Smart Array P830i/2G FBWC Controller
The Flash Backed Write Cache (FBWC) increases cache data retention capabilities from two days of
existing battery backed write cache (BBWC) to infinite data retention.
• Delivers 12 Gb/s line rate performance
• Standard on all Models
• Supports HPE Secure Encryption as an option
• Transportable data protection
• Increases overall controller performance
NOTE: Please refer to the HPE Smart Array P830 Controller QuickSpecs for more information.
Internal Storage
Devices
Hard Disk Drive
Backplane
Internal SAS lower and upper backplanes support up to ten SFF hard disk
drives or solid state drives
Maximum Internal
Storage
Hot Plug SFF SAS 12 TB 10 x 1.2 TB
Hot Plug SFF SAS SSD 16 TB 10 x 1.6 TB
Hot Plug SFF SATA SSD 8 TB 10 x 800 GB
Interfaces Serial 1
Video 1 front; 1 rear
Network RJ-45 4
iLO 4 Remote
Management
1
micro-SD Slot 1
USB 2.0 Ports 8 total: 2 front; 4 rear; 2 interna
Industry Standard
Compliance
ACPI 2.0. Compliant
PCIE 2.0 Compliant
PXE Support
WOL Support
NOTE: Not supported with FlexLOMs on DL580 Gen8
Physical Address Extension (PAE) Support
Microsoft® Logo certifications
Common Slot Power
Supply
HPE 1500W Common Slot Platinum Plus Hot Plug Power Supply
HPE 1200W Common Slot Platinum Plus Hot Plug Power Supply
NOTE: 1500W power supply supports high line voltage only
NOTE: A minimum of two (2) power supplies are required. Four (4) 1500W power supplies offers
N+N redundancy for highly loaded configurations.
System Fans 4 Hot Plug Fans (eight rotors with N+1 redundancy)
Graphics Integrated Matrox G200 video standard
1280 x 1024 (32 bpp)
1920 x 1200 (16 bpp)
HPE iLO 4 On System Management Memory
16 MB Flash
256 MB DDR 3 with ECC (112 MB after ECC and video)
Form Factor 4U rack
