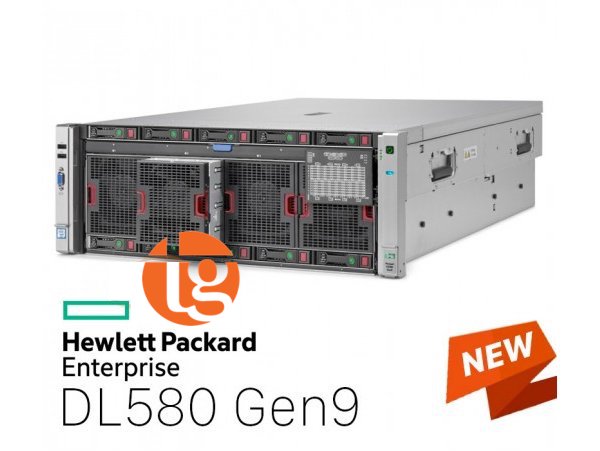

SERVER HPE PROLIANT DL580 G9 E7-4850 v3 Intel Haswell 14 Core E7-4850 v3, 2.2Ghz 35MB Cache, 8GT/s QPI
SERVER HPE PROLIANT DL580 G9 E7-4850 v3 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ
KEY FEATURES MÁY CHỦ SERVER HPE PROLIANT DL580 G9 E7-4850 v3, 793161-B21
Processor : 2x Intel Haswell 14 Core E7-4850 v3, 2.2Ghz 35MB Cache, 8GT/s QPI
Memory Cartridge: 2x HP DL580 Gen9 12 DIMMs Memory Cartridge
Memory: 4x 16GB DDR4-2133P 2Rx4 RDIMM RAM
Network Controller: 1x HP Ethernet 1GbE 331FLR FIO 4ports Adapter
Raid Controller: Smart Array P830i Controller, 2 internal x8 Mini-SAS double-wide intern. RAID 1, 10, 5, 50, 6, 60
+ 1x HP 2GB FIO Flash Backed Write Cache
Storages: Non HDD, up to 10 SFF internal HĐ
PCI Express: 9 PCIe Gen3.0 I/O Expansion slots (5x16 slots, 4x8 slots) |
Optical Drive: external (option)
PSU : 2x HP 1200W CS Plat PL Hot-plug Power Supply Kit
Management: HP iLO Adv incl 3yr TS U 1-Svr License
Warranty: HP 3Y 4 hr 24x7 Proactive Care SVC
Specifications
|
Form Factor |
Rack 4U |
|
Processor |
Intel® Xeon® E7-4800 v3/ E7-8800 v3 product family |
|
Number of processors |
2, 3 or 4 |
|
Core |
24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 4 |
|
Cache Memory |
20MB (1 x 20MB) |
|
Chipset |
Intel® C602J Chipset |
|
Memory |
maximum 6 TB (64GB x 96 DIMM slots) |
|
Network Controller |
HPE ProLiant Gen9 servers offer a new flexible network technology - FlexibleLOMs, which offers customers a choice of 1Gb, 10Gb, or 10Gb base-T Ethernet or converged networking in their embedded adapter . 10Gb 534FLR-SFP+ FlexFabric Adapter 2 Ports per controller or |
|
Expansion Slots |
3 PCIe slots (+3 PCI slots available with upgrade option, second processor required) |
|
Storage Controller |
Smart Array P830i/2GB FBWC or RAID 6, 60 (Advanced Data Guarding) RAID 5, 50 (Distributed Data Guarding) RAID 1, 10 (Drive Mirroring), RAID 1 ADM, 10 ADM (Advanced Data Mirroring) RAID 0 (Striping) 2 internal x8 Mini-SAS double-wide internal |
|
Internal Storage Devices |
Internal SAS lower and upper backplanes support up to ten SFF hard disk drives or solid state drives or Express Bays (NVMe drives) |
|
Maximum Storage internal |
Hot Plug SFF SAS 20TB 10 x 2.0TB Hot Plug SFF SAS SSD 38.4TB 10 x 3.84TB Hot Plug SFF SATA SSD 38.4TB 10 x 3.84TB Hot Plug SFF NVMe PCIe SSD 8TB 5 x 1.6TB NOTE: Optional support for 5 NVMe SSDs or 5 SFF drives are also available. |
|
Graphics |
Integrated Matrox G200 video standard 16 MB Flash 256 MB DDR 3 with ECC (112 MB after ECC and video) HPE iLO 4 On System Management Memory 16 MB Flash 256 MB DDR 3 with ECC (112 MB after ECC and video) |
|
System FANs |
4 Hot Plug Fans (eight rotors with N+1 redundancy) |
|
Interfaces |
Serial 1 back Video 1 front; 1 back FlexibleLOM Network Ports Selection of FlexibleLOM options iLO 4 Remote Management 1 x 1Gbe dedicated Micro SD Slot 1 internal NOTE: Dual microSD USB option kit also available (741279-B21). |
|
On System Management |
HPE iLO (Firmware HPE iLO4 2.40 or later), 4GB NAND iLO Management (standard) |
|
Power Supply |
HPE 1500W Common Slot Platinum Plus Hot Plug Power Supply HPE 1500W Common Slot 48VDC Hot Plug Power Supply NOTE: 1500W power supply supports high line voltage only. HPE 1200W Common Slot Platinum Plus Hot Plug Power Supply NOTE: A minimum of two (2) power supplies are required. Four (4) 1500W power supplies offers N+N redundancy for highly loaded configurations. |
|
Require Cabling |
Server Power Cords Server ships with high-voltage server to PDU power cord. NOTE: If customers require a local power cord, they can check the power cord matrix for the appropriate county specific SKU. Please see the following power cord matrix for details: http://www.hp.com/go/powercordmatrix. |
|
Operating Systems |
Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware CentOS Oracle Linux |
|
HPE server UEFI/ |
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as: Secure Boot Operating system specific functionality Support for > 2.2 TB (using GPT) boot drives USB 3.0 Stack Embedded UEFI Shell Mass Configuration Deployment Tool using RESTful API for iLO 4 PXE boot support for IPv6 networks Boot support for option cards that only support a UEFI option ROM Network Stack configurations |
|
Upgradeability |
Upgradeable to 4 processors Up to 96 DDR4 DIMM slots 9 PCIe Gen3 expansion slots NOTE: PCIe slot availability is dependent on the number of processors installed. Please refer to the "Expansion Slots" section for more details. 10 SFF internal HDD/SSD SAS drive bays or 5 SFF Internal Express Bays + 5 SFF Internal HDD/SSD drive bays NOTE: Five drive bays come standard. An optional five SAS drive or five Express backplane kit with five drive bays can be ordered for ten drives. 5 NVMe SSD drive bays 4 redundant hot-plug power supplies |
