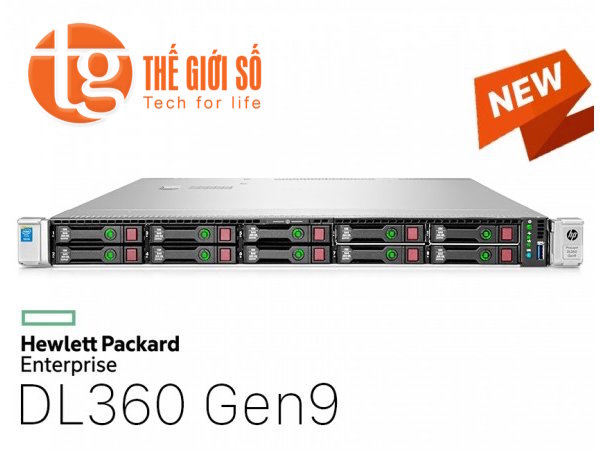

SERVER HPE PROLIANT DL360 G9 RAID H240 E5-2620v4 (8 Core 2.1Ghz 20M cache 8GT QPI/ 85W)
SERVER HPE PROLIANT DL360 G9 RAID H240 E5-2620v4 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ
KEY FEATURES MÁY CHỦ SERVER HPE PROLIANT DL360 G9 RAID H240 E5-2620v4
Key Features
Processor : 1 x Intel Xeon E5-2620v4 (8 Core 2.1Ghz 20M cache 8GT QPI/ 85W)
Memory : 1x 8GB DDR4-2133 Registered DIMMs
Network Controller:1x HP Embedded 1Gb Ethernet 4-port 331i Adapter
Raid: 1x H240 12Gb 2-ports Int Smart Host Bus Adapter - RAID Supported - 0, 1, 5 RAID Level
Storages: Non HDD, 8 SFF HDD Bays
Optical Drives: DVD Optional
Power : 1x HPE 500W Flex Slot Platinum Power Supply
Form Factor: Rack 1U
Specifications
|
Processor |
Intel® E5-2600v3/ v4 Processor Family |
|
Cache Memory |
Core # 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4 15MB (1 x 15MB) |
Chipset |
Intel® C610 Series Chipset |
| On System Management Chipset | HP iLO (Firmware HP iLO4 2.0) 4GB NAND NOTE: 1GB USB user space configurable via UEFI and accessible via iLO. Read and learn more in the iLO QuickSpecs. |
| Memory | Type: DDR4 Registered (RDIMM) or Load Reduced (LRDIMM) DIMM Slots Available : 24(12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel) Maximum Capacity (LRDIMM) : 1.5TB(24 x 64GB LRDIMM @2133MHz) Maximum Capacity (RDIMM) : 768GB(24 x 32GB RDIMM @2133MHz) |
| Network Controller | HP Embedded 1Gb Ethernet 4-port 331i Adapter |
| Expansion Slots | 3 PCIe slots (+3 PCI slots available with upgrade option, second processor required) |
| Storage Controller | Entry Models HP Dynamic Smart Array B140i Controller NOTE: The embedded B140i controller will operate in UEFI only mode. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22. NOTE: The B140i defaults to AHCI off the chipset. Smart array needs to be enables on the SATA only models if required. NOTE: The B140i will not operate in Legacy mode. Base Models HP Dynamic Smart Array B140i Controller HP Flexible Smart Array P440ar/2G FIO Controller HP Flexible Smart Array P840/4G FIO Controller Performance Models HP Dynamic Smart Array B140i Controller HP Flexible Smart Array P440ar/2GB |
|
Internal Storage Devices |
Up to 8 LFF/SFF 4) LFF SAS/SATA/SSD |
|
Interfaces
|
Video HP iLO Remote Management Network Port FlexibleLOM Network Ports Micro SD Slot USB 3.0 |
| Power Supply | (1) HP 500W Flex Slot Platinum Power Supply |
| Form Factor | Rack 1U |
