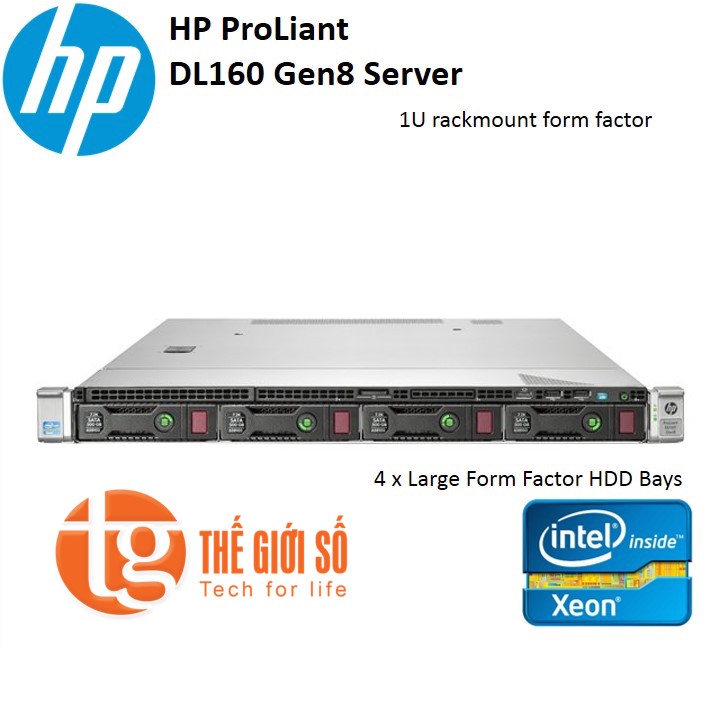

SERVER HPE PROLIANT DL160 G8 INTEL XEON E5-2630, 2.3GHz/6-core/15MB/7.2GT-s QPI/95W

Số lượng:

Giá bán: 0 VND

SERVER HPE PROLIANT DL160 G8 INTEL XEON E5-2630 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ
KEY FEATURES MÁY CHỦ SERVER HPE PROLIANT DL160 G8 INTEL XEON E5-2630

Processor: 1x Intel® Xeon® E5-2630 (2.3GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Memory: 1x 4GB PC3-10600R (RDIMM) NOTE: Total of 24 DIMM slots
Network Controller: HP 1Gb 361i Ethernet Adapter 2 Ports per controller
Storage Controller: HP Smart Array B120i SATA RAID Controller (RAID 0/1/1+0)
Hard Drive: Non HDD
Internal Storage: Up to 4 large form factor Pluggable drives
Optical Drive: None ship standard
Power Supply: 500W Platinum FIO Power Supply with Backplane (ships standard)
Form Factor: 1U

Memory Capacity
1x 4GB PC3-10600R (RDIMM)

Memory, maximum: 768GB
Memory slots: 24 DIMM slots; Maximum
Memory type: DDR3 RDIMM or UDIMM, depending on model

Drive Bays
Non-HDD

Up to eight 2.5-inch hot-swap SAS/SATA drive bays, up to eight 2.5-inch simple-swap drive bays, up to four 3.5-inch hot-swap SAS/SATA drive bays, or up to four 3.5-inch SATA simple-swap drive bays

Optical Drive
Non-DVD

One, for models with 2.5" drives. Support for optional DVD-ROM or Multiburner.

Graphics
Matrox G200eR2 with 16 MB memory integrated into the IMM2. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors.

Expansion Slots
Up to two slots, depending on the riser cards installed. The slots are specified:
- Slot 1: PCIe 3.0 x4 (x4-wired); dedicated slot for H1110
- Slot 2: PCIe 3.0 x8 (x8-wired); full-height, half-length

Input / Onput
Two USB 3.0 ports on the front. Four USB 2.0 ports, one DB-15 video port, one DB-9 serial port, and four RJ-45 GbE network ports on the rear. One internal USB port (for embedded hypervisor).

Network Controller
Up to four integrated Gigabit Ethernet 1000BASE-T RJ-45 ports with the onboard BCM5719 controller (two ports are enabled, and additional two ports require the optional software FoD upgrade to enable them).

PSU
1x 500W Platinum FIO Power Supply with Backplane (ships standard)

Up to two redundant hot-swap 460 W AC power supplies (80 PLUS certification), or one fixed 300 W AC power supply (80 PLUS certification).

OS
Option

Support Microsoft Windows Server 2012 R2, 2012, and 2008 R2, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 11, VMware vSphere 5.5 (ESXi) and VMware vSphere 5.1 (ESXi).
