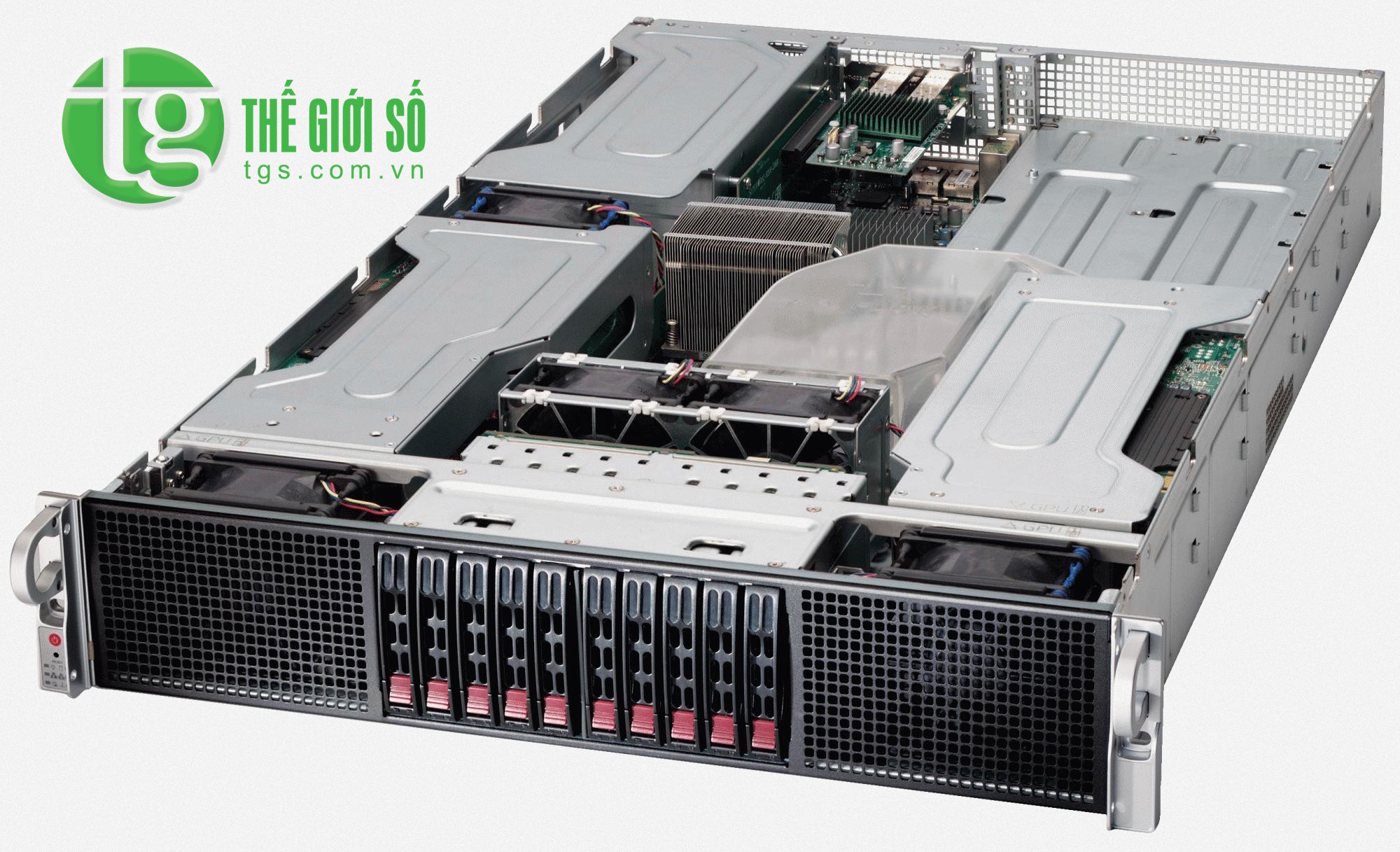

SERVER SuperServer 2027GR-TSF

SERVER SuperServer 2027GR-TSF CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES MÁY CHỦ SERVER SuperServer 2027GR-TSF

CDN, CLOUD COMPUTING, HOSTING & APPLICATION DELIVERY, WEB CACHE, WEB SERVER

1. Intel® Xeon® processor E5-2600 family support; QPI up to 8.0 GT/s
2. Up to 256GB DDR3 1600MHz reg ECC DIMM
3. 4x PCI-E 3.0 x16 slots
    (support GPU/Xeon Phi cards, opt.),
    1x PCI-E 3.0 x8 (in x16) slot,
    1x PCI-E 2.0 x4 (in x8) slot
4. Integrated IPMI 2.0 with KVM and Dedicated LAN
5. Intel® i350 Dual-Port GbE Controller
6. 10x Hot-swap 2.5" SATA Drive Bays
7. Single 1800W Power Supply Platinum Level (94%+)
8. 5x heavy duty cooling fans
9. Smart server management tools

Integrated Board X9DRG-HF

Available Color: Black
* Drivers & Utilities  * BIOS  * IPMI  * Tested MEM  * Tested HDD  * Manuals
* OS Certification Matrix  *  Compatible GPU List



Product SKUs
SYS-2027GR-TSF	* SuperServer 2027GR-TSF (Black)
Motherboard
Super X9DRG-HF
Processor/Cache
CPU	* Intel® Xeon® processor E5-2600 family (up to 130W TDP) * Dual Socket R (LGA 2011)
Cache	* Up to 20MB
System Bus	* QPI up to 8 GT/s
GPU/Xeon Phi Support	* M2090/M2075, up to 130W CPU at 35°C * K10/K20/K20X (Kepler), up to 130W CPU at 35°C * Xeon Phi, up to 130W CPU at 35°C
System Memory
Memory Capacity	* 8x 240-pin DDR3 DIMM sockets * Supports up to 256 GB DDR3 ECC Registered memory (RDIMM) * Supports up to 48 GB DDR3 ECC and non-ECC UDIMM
Memory Type	* 1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	* 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	* 1.5 V, 1.35 V
Error Detection	* Corrects single-bit errors * Detects double-bit errors   (using ECC memory)
On-Board Devices
Chipset	* Intel® C602 Chipset
SATA	* Intel ICH10R SATA 3.0Gbps Controller * RAID 0, 1, 5, 10 support
IPMI	* Support for Intelligent Platform Management Interface v.2.0 * IPMI 2.0 with virtual media over LAN and KVM-over-LAN support * Nuvoton WPCM450 BMC
Network Controllers	* Intel® i350 Dual Port Gigabit Ethernet * Virtual Machine Device Queues reduce I/O overhead * Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	* Matrox G200eW
Input / Output
SATA	* 2 SATA 3.0 ports (6Gbps) * 8 SATA 2.0 ports (3Gbps)
LAN	* 2 RJ45 Gigabit Ethernet LAN ports * 1 RJ45 Dedicated IPMI LAN port
USB	* 2 USB 2.0 ports
Video	* 1 VGA Connector
Keyboard/Mouse	* 1 PS/2 Keyboard/Mouse port
Serial Port	* 1 Serial header
System BIOS
BIOS Type	* 16Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	* Plug and Play (PnP) * APM 1.2 * DMI 2.3 * PCI 2.2 * ACPI 1.0 / 2.0 * USB Keyboard support * Hardware BIOS Virus protection * SMBIOS 2.3 * UEFI * RTC (Real Time Clock) Wakeup
Chassis
Form Factor	* 2U Rackmount
Model	* CSE-218G-R1800B
Dimensions
Height	* 3.5" (89mm)
Width	* 17.2" (437mm)
Depth	* 31" (787mm)
Gross Weight	* 54 lbs (24.5 kg)
Available Color	* Black
Front Panel
Buttons	* Power On/Off button * System Reset button
LEDs	* Power LED * Hard drive activity LED * 2x Network activity LEDs * System Overheat LED / Fan fail LED / * UID LED
Expansion Slots
PCI-Express	* 4x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards, option) * 1x PCI-E 3.0 x8 (in x16) low-profile slot * 1x PCI-E 2.0 x4 (in x8) slot
Drive Bays
Hot-swap	* 10x 2.5" Hot-swap drive bays
System Cooling
Fans	* 5x 8cm heavy duty fans with optimal fan speed control
Power Supply
1800W power supply with PMBus
AC Input	* 1000W Output @ 100-120V, 12-10A, 50-60Hz * 1200W Output @ 120-140V, 12-10A, 50-60Hz * 1800W Output @ 200-240V, 10-8.5A, 50-60Hz
DC Output	* 1000W: +12V/84A; +5Vsb/4A * 1200W: +12V/100A; +5Vsb/4A * 1800W: +12V/150A; +5Vsb/4A
Certification	Platinum Certified
PC Health Monitoring
CPU	* Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. * CPU Core 6-Phase-switching voltage regulator
FAN	* Total of five 4-pin PWM fans * 5x fans with tachometer monitoring * Status monitor for speed control * Status monitor for on/off control * Low noise fan speed control
Temperature	* Monitoring for CPU and chassis environment * CPU thermal trip support * Thermal Control for 10x Fan Connectors * PSU I2C temperature sensing logic * Thermal Monitor 2 (TM2) support * PECI
LED	* Power Fail / Overheat LED * Suspend-state Indicator LED * UID LED
Other Features	* SDDC Support
Operating Environment / Compliance
RoHS	* RoHS Compliant
Environmental Spec.	* Operating Temperature: 10°C to 35°C (50°F to 95°F) * Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) * Operating Relative Humidity: 8% to 90% (non-condensing) * Non-operating Relative Humidity: 5% to 95% (non-condensing)
