SERVER MicroCloud SuperServer 5037MC-H8TRF


Số lượng:
Giá bán: 0 VND

SERVER MicroCloud SuperServer 5037MC-H8TRF CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES MÁY CHỦ SERVER MicroCloud SuperServer 5037MC-5037MC-H8TRF

CDNCLOUD COMPUTINGHOSTING & APPLICATION DELIVERYWEB CACHEWEB SERVER

Key Features (per node)
1. Intel® Xeon® processor E3-1200 family, Intel® 2nd Generation Core i3 & Intel® Pentium® family processors; socket H2 (LGA 1155)***
2. 2x 3.5" Hot-swap SATA3 (6 Gbps)
3. 1x (x8) PCI-E 2.0 low-profile slot
4. Up to 32GB DDR3 ECC UDIMM 1333/1066MHz Memory support; 2 channels
5. 2x Intel 82580DB GbE LAN ports
6. 1x Dedicated LAN for IPMI Remote Management
7. 4x 8cm Heavy duty fans with optimal cooling zone
8. 1620W Redundant 80Plus Platinum Level power supplies


Integrated Board

Super X9SCD-F

 Drivers & Utilities       BIOS       Tested Memory List       Manuals

Product SKUs
SuperServer * SYS-5037MC-H8TRF (Black)
Motherboard
Motherboard * MBD-X9SCD-F
Processor/Cache
CPU * Intel® Xeon® processor E3-1200 family, Intel® 2nd Generation Core i3 & Intel® Pentium® family processors***
* Socket H2 (LGA 1155)
System Memory (per node)
Memory Capacity * 4x 240-pin DDR3 DIMM sockets
* Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type * 1333/1066MHz ECC DDR3, 240-pin gold-plated DIMMs
DIMM Sizes * 8GB, 4GB, 2GB, 1GB
Memory Voltage * 1.5 V
Error Detection * Corrects single-bit errors
* Detects double-bit errors (using ECC memory)
On-Board Devices (per node)
Chipset * Intel® C204 PCH chipset*
SATA * 1x SATA DOM
IPMI * Support for Intelligent Platform Management Interface v.2.0
* IPMI 2.0 with virtual media over LAN and KVM over LAN support
* Winbond® WPCM450 BMC
Headers * 1 USB header & 1 Type A USB, TPM ready
Graphics * Matrox G200eW 16MB DDR2
Super I/O * Nuvoton WPCM450RA0BX
Network Devices (per node)
Micro-LP NIC * Intel® 82580DB, 2x Gigabit LAN ports
* iSCSI boot and PXE support
* Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
* Intel® I/OAT 3 support for fast, scaleable, and reliable networking
* VMDq support for better performance of virtualization
Expansion Slots (per node)
PCI-Express * 1 (x8) PCI-E 2.0 low-profile slot
Input / Output (per node)
Serial ATA * 2x SATA 3.0 ports (6Gbps)
LAN * 2x RJ45 Gigabit Ethernet LAN ports
* 1x RJ45 Dedicated IPMI LAN port
KVM * 1x VGA, 1x COM, and 2x USB 2.0 ports
System BIOS
BIOS Type * 64Mb SPI Flash EEPROM with AMI BIOS
BIOS Features * Plug and Play (PnP)
* APM 1.2
* ACPI 1.0 / 2.0
* USB Keyboard support
* SMBIOS 2.3
* RTC (Real Time Clock) Wakeup
Rear Window (each node)
Switch * Power / UID
Chassis
Form Factor 3U
Model CSE-938H-R1620B
Dimensions
Height 5.21" (132.5 mm)
Width 17.26" (438.4 mm)
Depth 23.2" (589 mm)
Weight 62.2 lbs (28.21 kg) - barebone
Color Black
Front Panel
Buttons * Power On/Off button
LEDs * Power LED
* Hard drive activity LED
* Network activity LED
* System Overheat LED
* UIO LED
Drive Bays

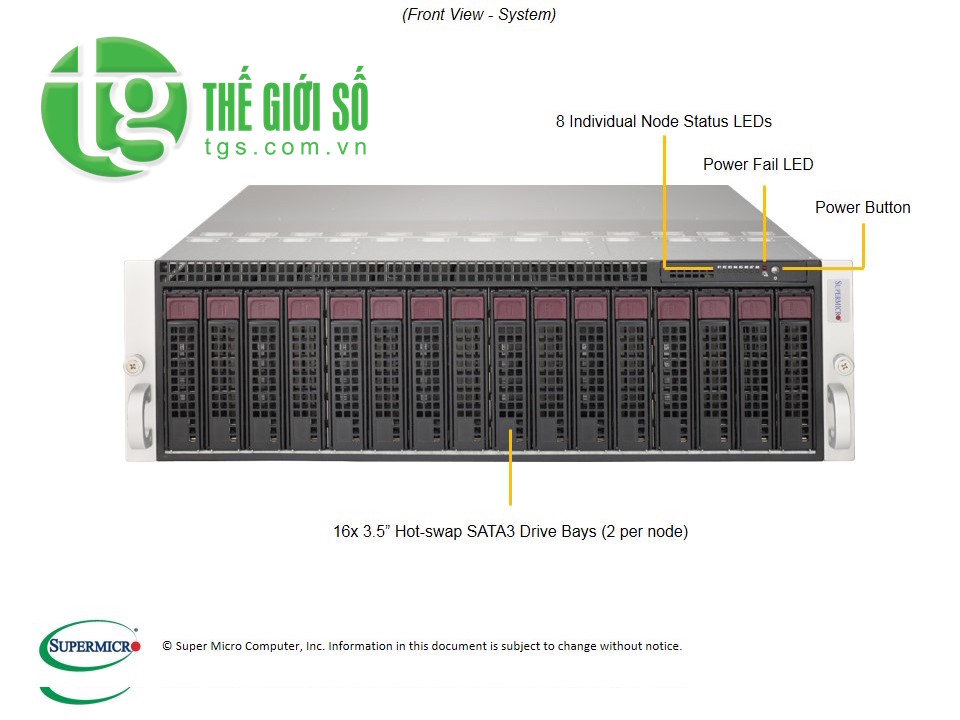

Hot-swap * 2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total
* Enterprise SATA HDD only recommended
System Cooling
Fans * 4x 8cm Heavy duty fans with optimal cooling zone
Power Supply
1620W high-efficiency redundant power supply
AC Input 1000W: 100-120 V, 50-60 Hz, 12-10 Amp
1200W: 120-140 V, 50-60 Hz, 12-10 Amp
1620W: 180-240 V, 50-60 Hz, 10.5-8 Amp
DC Output
+5V standby
4 Amp
DC Output
+12V
1000W: 84 Amp
1200W: 100 Amp
1620W: 135 Amp
Certification 80PLUS Platinum94%+ 80PLUS
Platinum Certified

[ Test Report ]
PC Health Monitoring
CPU * Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
* 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN * Cooling zone
Temperature * Monitoring for CPU and chassis environment
Operating Environment / Compliance
RoHS * RoHS Compliant
Environmental Spec. * Operating Temperature: 10°C to 35°C (50°F to 95°F)
* Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
* Operating Relative Humidity: 8% to 90% (non-condensing)
* Non-operating Relative Humidity: 5% to 95% (non-condensing)



Parts List

Parts List
  Part Number Qty Description
Motherboard / Chassis MBD-X9SCD-F 8 Super X9SCD-F Motherboard
CSE-938H-R1620B 1 3U Chassis
Cable 1 CBL-0218L 1 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
CD CDR-X9-UP 1 Driver CD for X9-UP series motherboard
Heatsink / Retention SNK-P0047PS+ 8 Customized Passive CPU Heat Sink for Micro Cloud Series Servers
Backplane BPN-SAS-938H 1 Backplane for SC938, 16x 3.5" SAS/SATA
Micro-LP NIC AOC-CG-i2-O-P 8 AOC-CG-I2-O-P
Riser Card RSC-RR1U-E8-O-P 8 RSC-RR1U-E8 (Rev 3.10)
Power Supply PWS-1K62P-1R 2 1620W REDUNDANT POWER MODULE
