SERVER MicroCloud SuperServer 5037MC-H86RF

SERVER MicroCloud SuperServer 5037MC-H86RF CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠIViệt Máy Chủ

KEY FEATURES MÁY CHỦ SERVER MicroCloud SuperServer 5037MC-H86RF

CDN, CLOUD COMPUTING, HOSTING & APPLICATION DELIVERY, WEB CACHE, WEB SERVER

Key Features (per node)
1. Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd Gen. Core i3 and Intel® Pentium® family processors; socket H2 (LGA 1155)***
2. 2x 3.5" Hot-swap SAS/SATA with selected RAID/HBA card
3. 1 (x8) PCI-E 3.0*** low-profile slot
4. Up to 32GB DDR3 ECC 1333MHz / 1600MHz*** UDIMMs in 4 sockets
5. 2x GbE LAN ports via Micro-LP NIC, 1x Dedicated LAN for IPMI Remote Management
6. 4x 8cm Heavy duty fans with optimal cooling zone
7. 1620W Redundant 80Plus Platinum Level power supplies

Integrated Board Super X9SCD+-HF

• Drivers & Utilities  • BIOS  • IPMI  • Tested MEM  • Tested HDD  • Manuals  • OS Certification Matrix


Product SKUs
SuperServer	* SYS-5037MC-H86RF (Black)
Motherboard
Motherboard	* MBD-X9SCD+-HF
Processor/Cache
CPU	* Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd Generation Core i3 & Intel® Pentium® family processors*** * Socket H2 (LGA 1155)
System Memory (per node)
Memory Capacity	* 4x 240-pin DDR3 DIMM sockets * Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	* 1333/1066MHz ECC DDR3, 240-pin gold-plated DIMMs
DIMM Sizes	* 8GB, 4GB, 2GB, 1GB
Memory Voltage	* 1.5 V
Error Detection	* Corrects single-bit errors * Detects double-bit errors (using ECC memory)
On-Board Devices (per node)
Chipset	* Intel® C204 PCH chipset*
SATA	* 1x SATA DOM
IPMI	* Support for Intelligent Platform Management Interface v.2.0 * IPMI 2.0 with virtual media over LAN and KVM over LAN support * Winbond® WPCM450 BMC
Headers	* 1 USB header & 1 Type A USB, TPM ready
Graphics	* Matrox G200eW 16MB DDR2
Super I/O	* Nuvoton WPCM450RA0BX
Network Devices (per node)
Micro-LP NIC	* Intel® 82580DB, 2x Gigabit LAN ports * iSCSI boot and PXE support * Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output * Intel® I/OAT 3 support for fast, scaleable, and reliable networking * VMDq support for better performance of virtualization
Expansion Slots (per node)
PCI-Express	* 1 (x8) PCI-E 2.0 low-profile slot MicroLP Adapter Matrix
Input / Output (per node)
Serial ATA	* 2x SAS/SATA ports with selected AOC
LAN	* 2x RJ45 Gigabit Ethernet LAN ports * 1x RJ45 Dedicated IPMI LAN port
KVM	* 1x VGA, 1x COM, and 2x USB 2.0 ports
System BIOS
BIOS Type	* 64Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	* Plug and Play (PnP) * APM 1.2 * ACPI 1.0 / 2.0 * USB Keyboard support * SMBIOS 2.3 * RTC (Real Time Clock) Wakeup
Rear Window (each node)
Switch	* Power / UID
Chassis
Form Factor	3U
Model	CSE-938H-R1620B
Dimensions
Height	5.21" (132.5 mm)
Width	17.26" (438.4 mm)
Depth	23.2" (589 mm)
Weight	62.2 lbs (28.21 kg) - barebone
Color	Black

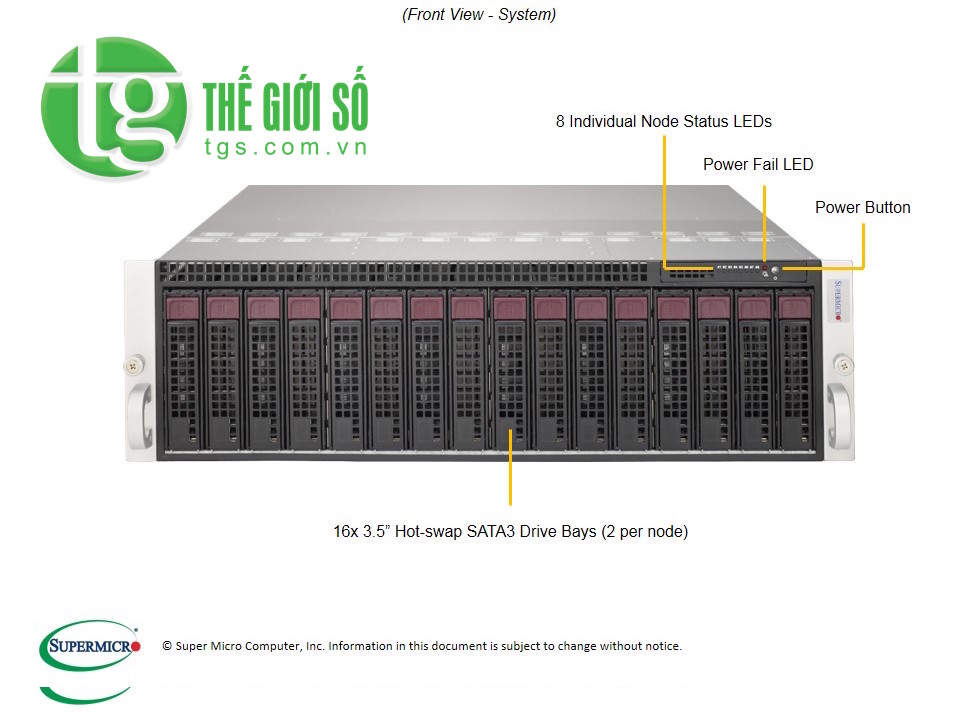

Front Panel
Buttons	* Power On/Off button
LEDs	* Power LED * Hard drive activity LED * Network activity LED * System Overheat LED * UIO LED
Drive Bays
Hot-swap	* 2x 3.5" hot-swap SAS/SATA3 (6Gbps) HDDs per node; up to 16 HDDs total * With selected HDD AOC, supports 2x SAS or SATA3 (6Gbps) via backplane * SAS or enterprise SATA HDD only recommended
System Cooling
Fans	* 4x 8cm Heavy duty fans with optimal cooling zone
Power Supply
1620W high-efficiency redundant power supply
AC Input	1000W: 100-120 V, 50-60 Hz, 12-10 Amp 1200W: 120-140 V, 50-60 Hz, 12-10 Amp 1620W: 180-240 V, 50-60 Hz, 10.5-8 Amp
DC Output +5V standby	4 Amp
DC Output +12V	1000W: 84 Amp 1200W: 100 Amp 1620W: 135 Amp
Certification	80PLUS Platinum Certified [ Test Report ]
PC Health Monitoring
CPU	* Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. * 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	* Cooling zone
Temperature	* Monitoring for CPU and chassis environment
Operating Environment / Compliance
RoHS	* RoHS Compliant
Environmental Spec.	* Operating Temperature: 10°C to 35°C (50°F to 95°F) * Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) * Operating Relative Humidity: 8% to 90% (non-condensing) * Non-operating Relative Humidity: 5% to 95% (non-condensing)
