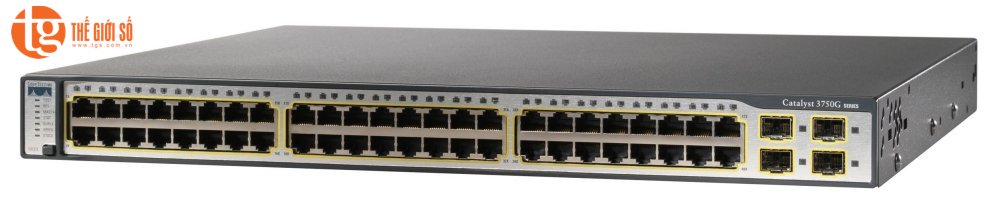

Cisco Catalyst WS-C3750G-48TS-S, 48 Port 1G
Product Information
The Cisco Catalyst 3750-48TS switch is a member of the Cisco Catalyst 3750 Series, an innovative product line that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This new product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system - one switch at a time.Using a 32-Gbps stack interconnect, Cisco StackWise technology is designed to respond to network changes of all kinds while maintaining constant high network performance. Cisco StackWise technology unites up to nine Catalyst 3750 switches into a single logical unit via special stack interconnect cables. The stack behaves as a single unit managed by a master switch elected from one of the member switches. Its advanced failover mechanisms create the highest levels of stackable resiliency for hardware and software reliability.
Product Identifiers
Brand Cisco
Model 3750G-48TS
MPN WSC3750G48TSE
UPC 0746320942636
Key Features
Form Factor Rack-Mountable
Ports Qty 48
Data Transfer Rate 1 Gbps
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Compatibility PC
Features
Other Features Flow control, full duplex capability, layer 3 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, IPv6 support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS)
Status Indicators Port status, link activity, port transmission speed, port duplex mode, status
Networking
Networking Type Switch
Connectivity Technology Wired
Switching Protocol Ethernet
Remote Management Protocol HTTP, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol BGP, BGP-4, EIGRP, EIGRP for IPv6, HSRP, IGRP, IS-IS, OSPF, OSPF for IPv6, PIM-DM, PIM-SM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, Static IP routing
Stackable Stackable
MAC Address Table Size 12K entries
Connectors
Interfaces 1 x management - console - RJ-45 female, 48 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female, Network stack device
Power
Power Consumption Operational 160 Watt
Power Source AC 120/230 V ( 50/60 Hz )
Power Supplay Power supply - internal
Memory
Flash Memory 32 MB flash
RAM Memory 128 MB
Dimensions
Width 18 in.
Height 2 in.
Depth 16 in.
Weight 14 lbs
Miscellaneous
Enclosure Type Rack-mountable - 1U
Humidity Range Operating (Range) 10 - 85%
Max Operating Temperature_Display 113 ˚F
Min Operating Temperature_Display 32 ˚F
