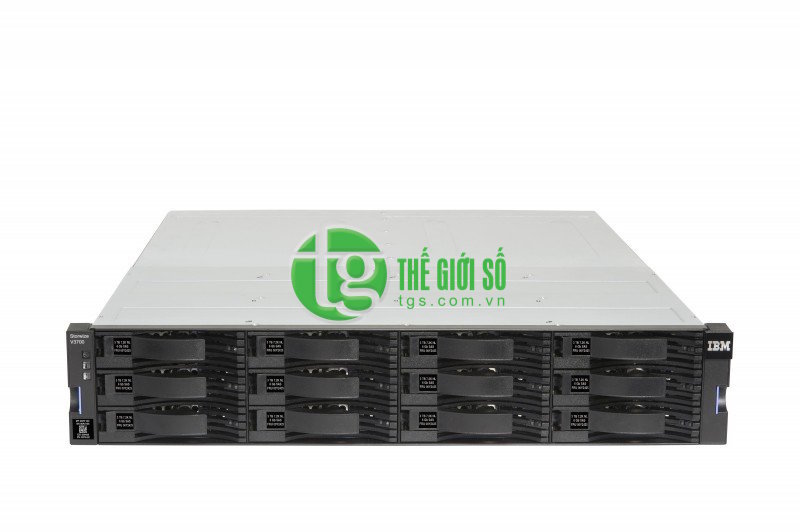

IBM Storwize V5000 LFF Dual Control Enclosure


Mã sản phẩm: Vui lòng liên hệ
Số lượng:
Giá bán: 0 VND
Mua hàng

IBM Storwize V5000 LFF Dual Control Enclosure CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES IBM Storwize V5000 LFF Dual Control Enclosure

Host interface 1 Gb iSCSI, 6 Gb SAS and 8 Gb Fibre Channel, or 10 Gb iSCSI/Fibre Channel over Ethernet (FCoE)
User interface Web-based graphical user interface (GUI)
Single or dual controller Dual
Maximum cache 32 GB (with two-way clustered systems)
Drive type Dual-port, hot-swappable, 6 Gb SAS disk drives
Drives supported Small form-factor 2.5-inch disk drives:
  • 146 GB, 300 GB, 600 GB @ 15k rpm
  • 600 GB, 900 GB, 1.2 TB, 1.8 TB, 2 TB @ 10k rpm
  • 1 TB, 2 TB @ 7.2k rpm SAS nearline
Large form-factor 3.5-inch disk drives:
  • 300 GB, 600 GB @ 15k rpm, SAS (2.5-inch drive in a 3.5-inch drive carrier)
  • 900 GB, 1.2 TB, 1.8 TB @ 10k rpm, SAS (2.5-inch drive in a 3.5-inch drive carrier)
  • 2 TB, 3 TB, 4 TB, 6 TB, 8 TB @ 7.2k rpm
Solid-state drive (SSD) 2.5-inch drives:
  • 200 GB, 400 GB, 800 GB, 1.6 TB
Maximum drives supported Up to 19 Storwize V5000 expansion enclosures (maximum of 480 drives per system and 960 drives in two-way clustered systems):
  • Small form-factor enclosure: 24 x 2.5-inch drives
  • Large form-factor enclosure: 12 x 3.5-inch drives
RAID levels RAID 0, 1, 5, 6 and 10
Fans and power supplies Fully redundant, hot-swappable
Rack support Standard 19-inch rack-mount* enclosure with AC power
Management software IBM Storwize family software for Storwize V5000
Advanced functions included with system
  • Embedded GUI
  • Dual-system clustering
  • Virtualization of internal storage
  • Thin provisioning
  • One-way data migration
  • Interoperability with most major server platforms and operating systems
Optional advanced functions
  • Easy Tier
  • External virtualization
  • FlashCopy
  • Remote mirroring
Size†
  • 8.7 cm (3.4 in.) H x 48.3 cm (19.0 in.) W x 55.6 cm (21.9 in.) D
  • Approximate weight:
    • Large form-factor control enclosure:
      • Empty: 18.0 kg (39.6 lb)
      • Fully configured: 28.3 kg (62.2 lb)
    • Large form-factor expansion enclosure:
      • Empty: 16.4 kg (36.1 lb)
      • Fully configured: 26.7 kg (58.8 lb)
    • Small form-factor control enclosure:
      • Empty: 19.0 kg (41.8 lb)
      • Fully configured: 27.3 kg (60.0 lb)
    • Small form-factor expansion enclosure:
      • Empty: 16.7 kg (36.7 lb)
      • Fully configured: 25.0 kg (55.2 lb)
Operating environment
  • Air temperature:
    • Operating: 10°C – 35°C (50°F – 95°F) at 30.5 m below to 3,000 m above sea level (100 ft below to 9,840 ft above)
    • Non-operating: -10°C – 50°C (14°F – 125°F)
  • Relative humidity:
    • Operating: 20% – 80%
    • Non-operating: 10% – 90%
  • Electrical power:
    • Voltage range: 100 – 240 V ac
    • Frequency: 50 – 60 Hz
    • Large form-factor control enclosure: 378 watts
    • Large form-factor expansion enclosure: 300 watts
    • Small form-factor control enclosure: 425 watts
    • Small form-factor expansion enclosure: 338 watts
Heat dissipation (BTU/hr.)
  • Large form-factor control enclosure: 1,290
  • Large form-factor expansion enclosure: 1,024
  • Small form-factor control enclosure: 1,451
  • Small form-factor expansion enclosure: 1,154
Supported systems For a list of currently supported servers, operating systems, host bus adapters, clustering applications, and SAN switches and directors, refer to the IBM System Storage Interoperation Center at: ibm.com/systems/support/storage/config/ssic
ISV solutions For a list of high-quality solutions with our partner ISVs, including access to solution briefs and white papers, refer to the ISV Solutions Resource Library
