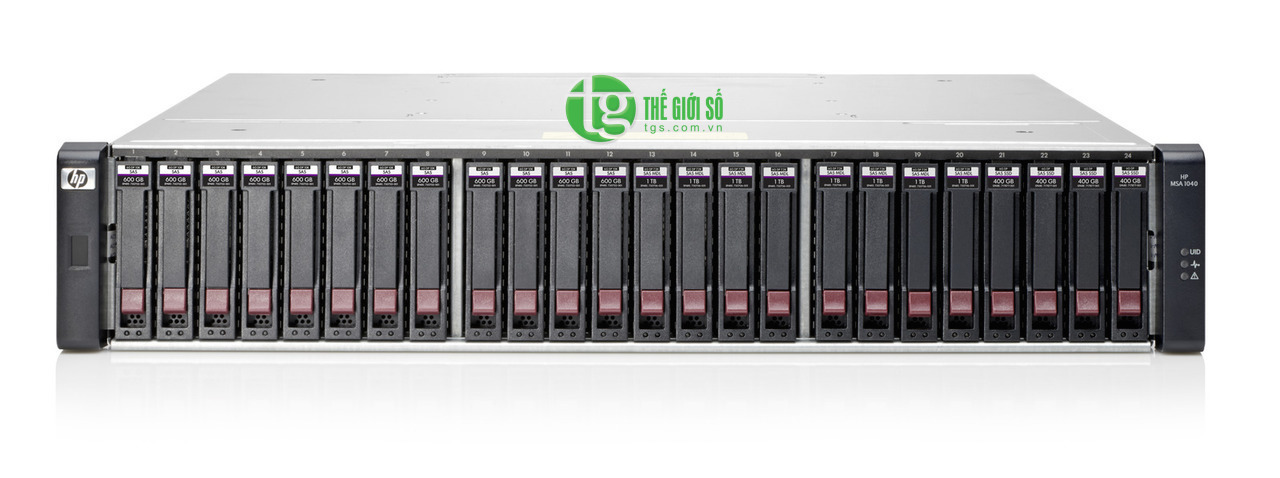

HP MSA 1040 2-port 1GbE iSCSI Dual Controller SFF Storage (E7W02A) CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES HP MSA 1040 2-port 1GbE iSCSI Dual Controller SFF Storage (E7W02A)

Capacity384 TB maximum with expansion, depending on drive type

Standard number of drives supported

LFF chassis: 12 x LFF (3.5") drives

SFF chassis: 24 x SFF (2.5") drives

Maximum drives supported:99 SFF drives or 48 LFF drives maximum including expansion

Storage expansion options:HP MSA 2040 LFF Disk Enclosure or D2700 SFF Disk Enclosure

Controller

Host interface

8 Gb Fibre Channel

1GbE iSCSI or 10GbE iSCSI

6/12 Gb SAS

(2 ports per controller)

Number of controllers:2

RAID Support:0, 1, 3, 5, 6, 10, 50

Cache Memory:4GB Read/Write. ECC protection with backup to Flash memory (indefinite backup)

Disk Drive and Enclosure Protocol:6 Gb SAS - Serial Attached SCSI

Expansion Port:SAS (SFF8088) 4x lane 6 Gb SAS

Performance

SAN Backup support:Yes

Systems Insight Manager support:Yes

Clustering support:Windows, Linux

Software features

OS Support

Microsoft Windows Server 2012 IA-32, x64, IA-64 (Standard, Enterprise,Data center)

Microsoft Windows Server 2008

R2 x64, Microsoft Windows Hyper-V,

Red Hat Linux, SUSE Linux,

VMware

Features

64 Snapshot and Volume Copy;

512 Snapshot Upgrade, Remote Snap

Replication, MSA 1040 Advanced

Virtualization Upgrade: Thin Provisioning,

Wide Striping, Redirect on Write Snapshots,

Archive Tiering

Paid SW Licenses

Power

Input Power Requirements110VAC 3.20A, 343W; 220VAC 1.67A,337W

Max Input Power

100-240 VAC, 50/60 Hz., 4.20-1.77A

Heat Dissipation

1174 BTU/hr

Physical characteristics

Form Factor

Rack 2U
