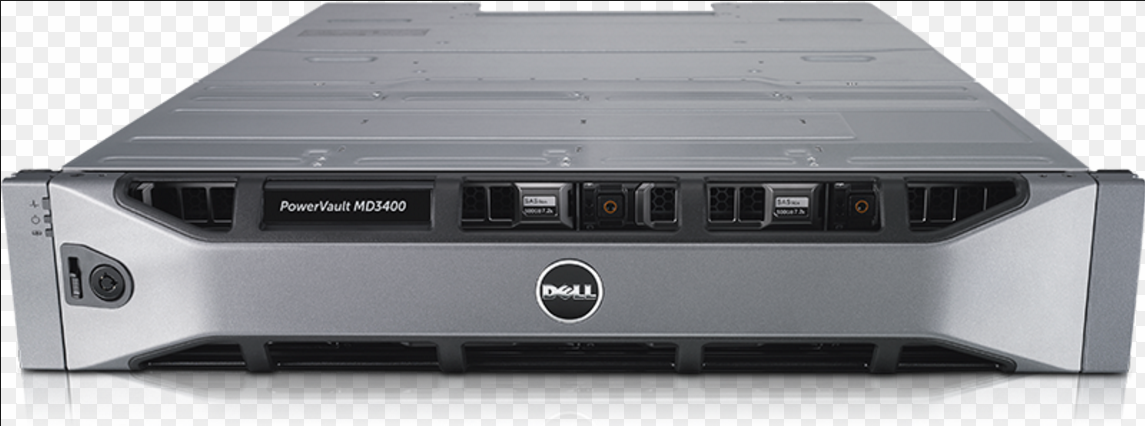

MÁY CHỦ DELL POWERVAULT MD3400 SAS STORAGE

Số lượng:

Giá bán: 0 VND

MÁY CHỦ DELL POWERVAULT MD3400 SAS STORAGE CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ tại Việt Máy Chủ

KEY FEATURES MÁY CHỦ SERVER DELL POWERVAULT MD3400 SAS STORAGE

This SAS array provides high-availability and high-capacity when using 12Gb near-line SAS drives with Direct Attach Storage (DAS). In a 2U, 12-drive enclosure, it can support 4GB cache per controller, or 8GB cache per controller with the dual controller configuration.

Up to 2x performance with the new 12Gb SAS array.
Up to twelve 3.5-inch or 2.5" SAS, near-line SAS and SSD drives
Directly connect up to four high-availability (HA)-configured servers or eight non-HA-configured servers to a single MD3400 storage system
Expand capacity with up to eight MD1200 or MD1220 expansion enclosures

MÁY CHỦ SERVER DELL POWERVAULT MD3400 SAS STORAGE

RAID	Support for RAID levels 0, 1, 10, 5, 6 Up to 180/1924 physical disks per group in RAID 0, 10 Up to 30 physical disks per group in RAID 5, 6 Up to 512 virtual disks DDP3
Drives	Up to twelve (12) 3.5" SAS, NL-SAS, SSD, SED 3.5”--15,000 RPM SAS drives available in 300GB, 450GB1, 600GB1 3.5"--7,200 RPM Near-line SAS drives available in 500GB, 1TB1, 2TB1, 3TB1, 4TB1, 6TB, 8TB 3.5” -- 10K RPM SAS: 600GB Solid State Drive (SSD) available in 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available with 3.5" HDD carriers)
Expansion Capabilities	Up to 192 drives with MD1200/MD1200 expansion enclosures on the MD3400 and MD3420 arrays Up to 180 drives with MD3060e expansion enclosures on the MD3460 array
Connectivity	Hot-swappable controllers MD34x0 and MD38x0x controllers are not compatible with the older generation arrays (MD32x0x and MD36x0x). Single controller models: MD3400/MD3420: Directly connect up to two high-availability (HA)-configured servers or eight non-HA-configured servers to a single MD3400 or MD3420 storage system. Available with 4GB cache controllers. Dual controller models: MD3400/MD3420/MD3460 Directly connect up to four HA-configured servers or eight non-HA-configured servers to a single SAS storage system. Available with an option of 4GB or 8GB cache controllers.
Management	2nd generation multi-protocol Modular Disk Storage Manager, Java based user interface Multi-path graphical software provides failover management of redundant data paths between the server and storage array MD3400/MD3420 Standard Features: DDP3: Optional configuration to RAID disk management VAAI support: Available for customers using VMware vStorage APIs for Array Integration, vCenter Plug-in: Available for customers using VMware vSphere VASA: vStorage API for Storage Awareness, available for use in conjunction with the vCenter Plug-in SRA: Sight Recover Manager, available for use with vCenter Plugin ALUA: Active-Active LUN Access Supports Self-encrypting Drives (SED): Provide an additional level of data protection Thin Provisioning: Allocate and consume physical storage capacity as needed Try and Buy licensing: 90-day trial license of premium feature software Microsoft Windows ODX MD3460 Standard Features Same features as MD3400 High Performance Tier: Increases array I/O performance SSD Cache: Accelerates application performance by utilizing SSD drives as extended controller read cache Optional Premium Features Snapshots: Up to 128 snapshots per virtual disk and 512 per system Snapshots Plus Virtual Disk Copy: Up to 512 simultaneous virtual disk copies High Performance Tier (HPT)firmware upgrade increases array I/O performance5 Additional Hard Drives: capacity up to 1806 or 1927 hard drives Remote Replication: Asynchronous and synchronous SSD Cache: accelerates application performance by utilizing SSD drives as extended controller read cache
Power	Wattage MD3400/MD3420: AC - 600W peak output; DC – 700W (2U arrays support DC power supplies) MD3460: AC - 1755W (dense arrays do not support DC power supplies) Heat Dissipation (max) MD3400/MD3420: 2047 BTU/hr MD3460: 5988 BTU/hr Voltage MD3400/MD3420: 100 to 240V AC ;48V DC MD3460: 220V AC, auto ranging, 50Hz/60Hz Battery MD3400/MD3420/MD3460: 6.0 DC, 100 mAh, 7.26 W Lithium Ion Battery Frequency range 50/60Hz
Chassis	Chassis (height x width x depth) MD3400: 8.68cm (3.42") x 44.63cm (17.57") x 60.20cm (23.70 inches) MD3420: 8.68cm (3.42") x 44.63cm (17.57") x 54.90cm (21.61 inches) MD3460: 17.78cm (7.0") x 48.26cm (19.0") x 82.55cm (32.5") MD3060e: 17.78cm (7.0") x 48.26cm (19.0") x 82.55cm (32.5”) Weight MD3400: 29.30 kg (64.6 lbs) (maximum configuration) MD3420: 24.22 kg (53.4 lbs) (maximum configuration) MD3460: 105.20 kg (232.0 lbs) (maximum configuration) MD3060e: 105.23kg (232 lbs.) (maximum configuration) Rack Support for MD3400 and MD3420 : Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks. MD3060e Dense Enclosure EBOD expansion enclosure designed for use with the MD3 dense array series only (MD3260i, MD3460, MD3860i, MD3860f) Dimensions are identical to the dense array series (MD3260i, MD3460, MD3860i, MD3860f) Controllers on the MD3 dense series arrays have either one 6Gbps SAS Out port (MD3260i) or one 12Gbps SAS Out port (MD3460, MD3860i, and MD3860f) for connecting to the MD3060e enclosure expansion for additional capacity (max 2 per dense array). For systems without premium feature activation, the physical disk limit is 120. MD3060e contains two hot-swappable enclosure management modules (EMMs)
Environmental Operating Conditions	Temperature for MD3400/MD3420 Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour, with no direct sunlight Supports Fresh Air cooling, up to 35°C Relative humidity MD3400/MD3420: Operating: 5% to 95% RH with 33 °C (91 °F) maximum dew point. Atmosphere must be non-condensing at all times MD3460: Operating 5% to 95% (non-condensing) with 33 °C (91 °F) maximum dew point. Altitude MD3400/MD3420 Operating: -16 to 3048 m (-50 to 10,000 ft) Note: For altitudes above 2950 feet, the maximum operating temperature is de-rated 1°F/550 ft. MD3460 Operating: –30.5 m to 3000 m (–100 ft to 9,840 ft) NOTE: For altitudes above 2950 ft, the maximum operating temperature is derated 1.8°F/1000 ft.
Operating System	Microsoft® Windows®, Linux, VMware®, Microsoft Hyper-V® See PowerVault MD3200/MD3220 Support Matrix for a list of currently supported operating systems.
