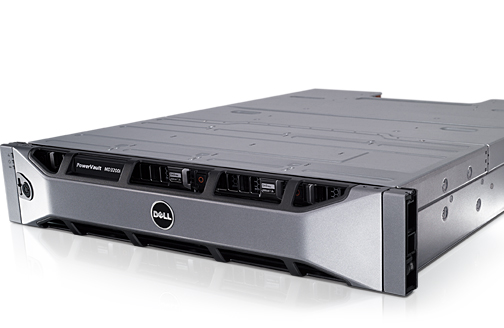

MÁY CHỦ DELL POWERVAULT MD1200 DAS STORAGE


Số lượng:
Giá bán: 0 VND

MÁY CHỦ DELL  POWERVAULT MD1200 DAS STORAGE CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES MÁY CHỦ SERVER DELL POWERVAULT MD1200 DAS STORAGE

Up to twelve (12) hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K and 15K rpm and SAS Solid State Drives (SSDs)

MÁY CHỦ SERVER DELL  POWERVAULT MD1200 DAS STORAGE

Drives Up to twelve (12) hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K and 15K rpm and SAS Solid State Drives (SSDs)
Drive performances and capacities 3.5” 6Gbps SAS:

HDD 15K – 300GB, 450GB, 600GB
HDD 7.2K – 1TB, 2TB, 3TB, 4TB
HDD 7.2K NL-SAS 512e – 6TB, 8TB


2.5” 6Gbps SAS with 3.5” carrier:

HDD 10K – 300GB, 600GB, 900GB, 1.2TB
HDD 10K 512e– 1.8TB
SSD – 400GB mainstream SLC
SSD – 200GB, 800GB value SLC
SSD – 800GB RI MLC
SSD – 200GB, 400GB WI SLC


2.5” 12Gbps SAS with 3.5” carrier:

7.2K HDD NL-SAS 512e – 2TB
SSD – 200GB, 400GB, 800GB, 1.6TB MU MLC
SSD – 200GB, 400GB, 800GB WI MLC
SSD – 800GB, 1.6TB RI MLC
Maximum Capacity (per enclosure) Up to 96TB when using 12 x 8TB NL-SAS 3.5" HDDs
Expansion Capabilities PERC H810 Host-RAID adapter enables expansion to 8 enclosures (4 enclosures per port)
Connectivity Support for the following configurations:

Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H810 (4 enclosures per port, single path)

Unified mode (redundant path) for daisy chaining up to 4 enclosures per PERC H810 (4 enclosures connected to both ports via redundant path cabling)

Split mode with dual Enclosure Management Modules providing direct connectivity to drives 0 through 5 and a separate connectivity to drives 6 through 11.
Management 2 Enclosure Management Modules(EMM) provide redundant enclosure management capability
Power Two fully redundant power supplies; supports DC power

Wattage: AC - 600 W; DC – 700 W

Heat dissipation: AC - 2047BTU/hr; DC - 2388 BTU/hr

Voltage: 100-240 VAC, auto sensing; 48V DC

Frequency: 50/60 Hz

Amperage: 8.6 A at 100 V, 4.3 A at 240 V

Available Drive Power (per slot)
Supported drive power consumption (continuous):
up to 1.16 A at +5V
up to 1.6 A +12V
Chassis Height

8.7cm (3.43 inches)

Width

48.2cm (18.98 inches)

Depth

59.4 (23.39 inches)

Weight

28.39 kg (62.6 lb) (maximum configuration)
8.84 kg (19.5 lb) (empty)
Environmental Operating Conditions Temperature:

Operating: 10° to 35°C (50° to 95°F) with maximum temp gradation of 10°C per hour
Storage: -40° to 65°C (-40° to 149°F) with temp gradation of 20°C per hour
Supports Fresh Air cooling, up to 35 degrees Celsius

Relative humidity:

Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
Storage: 5% to 95% (non-condensing)

Altitude:

Operating: -16 to 3048 m (-50 to 10,000 ft)
Storage: -16 to 10,600 m (-50 to 35,000 ft)
Operating System Refer to RAID Card for details on supported Operating Systems:
PERC H810
