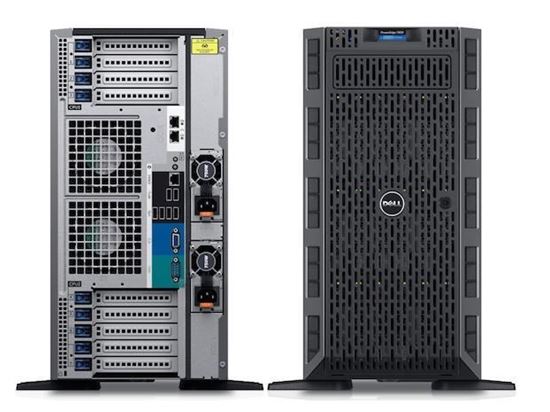

MÁY CHỦ DELL POWEREDGE T630 E5-2630 V3 2.4GHZ


Số lượng:
Giá bán: 0 VND

MÁY CHỦ DELL POWEREDGE  T630 E5-2630 V3 2.4GHZ CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE  T630 E5-2630 v3 2.4GHz,20M Cache,8.00GT/s QPI,Turbo,HT,8C/16T (85W) Max Mem 1866MHz

Processor: Intel® Xeon® E5-2630 v3 2.4GHz,20M Cache,8.00GT/s QPI,Turbo,HT,8C/16T (85W) Max Mem 1866MHz
Memory: 8GB RDIMM, 2133MT/s, Dual Rank, x8 Data Width
Storage: 1TB 7.2K RPM SATA 6Gbps 3.5in Hot-plug Hard Drive
RAID Controllers: S130, Software RAID (for Microsoft OS Only)
Chassis: 5U Tower
Power Supply: Single, Hot-plug Power Supply (1+0), 750W
Optical Drive: No Internal Optical Drive

MÁY CHỦ SERVER DELL POWEREDGE  T630 E5-2630 v3 2.4GHz

Processor Intel® Xeon® processor E5-2600 v3 product family
Operating System Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®
Chipset Intel C610 series
Memory 24 DIMM slots, DDR4 memory
Architecture: Up to 2133MHz MHz DDR4 DIMMs
Memory Type: RDIMM&LRDIMM
Memory Module Sockets: Twenty Four
Minimum RAM: 2 GB (one module)
Maximum RAM: Up to 1536GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB
Hypervisor Support Microsoft® Windows Server® 2008, with Hyper-V®
VMware® ESXi
Citrix XenServer
Storage SAS, SATA, Near-line SAS, SSD, PCIe SSD:
18 x 3.5" HDD – up to 72TB via 4TB hot-plug SAS hard drives
32 x 2.5” HDD – up to 32TB via 1TB hot-plug SAS hard drives
Up to 4 optional Express Flash PCIe SSD’s
Drive Bays Internal hard drive bay and hot-plug backplane:
Up to 8 x 3.5” SAS, SATA, Near-Line SAS, SSD, PCIe SSD drives with optional flex bay
Up to 18 x 3.5” SAS, SATA, Near-Line SAS, SSD drives without optional flex bay
Up to 16 x 2.5” SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bay
Up to 32 x 2.5” SAS, SATA, Near-Line SAS, SSD drives with optional flex bay
Slots Slot 1: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector)
Slot 2: Full Length, Full Height, PCH - PCIe Gen2 x4 (x8 connector)
Slot 3: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector)
Slot 4: Half Length, Full Height, CPU2 - PCIe Gen3 x8 (x8 connector)
Slot 5: Full Length, Full Height, CPU2 - PCIe Gen2 (DMI) x4 (x8 connector)
Slot 6: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector)
Slot 7: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector)
Slot 8: Half Length, Full Height, CPU1 - PCIe Gen3 x8 (x8 connector)
RAID Controllers Internal: PERC S130 / PERC H330 / PERC H730 /PERC H730P
External: PERC H830
Network Controller 2 x 1Gb
Broadcom® 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
Availability ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Tool-less chassis
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller
Graphics Card Video Type :Integrated Integrated Matrox G200 with iDRAC8
Video Memory: 16 MB shared with iDRAC8 application memory

GPUs – Support for up to four optional 300W internal GPU processing accelerators
Chassis 5U Tower
Management Dell OpenManage portfolio of systems management solutions, including:
OpenManage Essentials console
iDRAC8 with Lifecycle Controller
Power Supply Titanium efficiency 750W AC power supply
Gold efficiency 1100W DC power supply
Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply
Optical Drive No Internal Optical Drive
