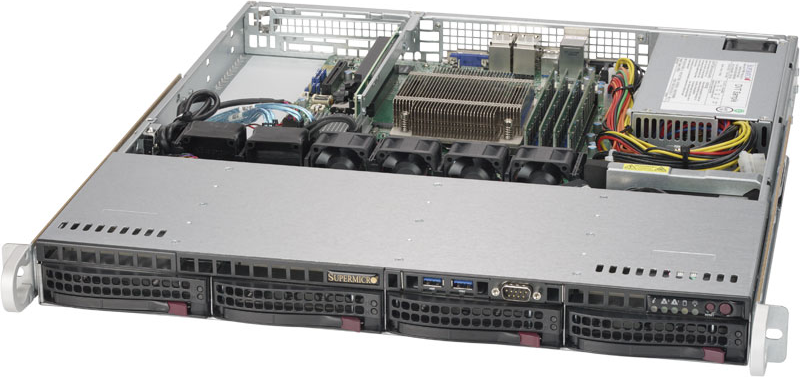

MÁY CHỦ SuperServer 5019S-WR
• Mainstream, WIO
1U Rackmount Server, Single socket H4 (LGA 1151), 64GB ECC UDIMM, 4 Hot-swap 3.5" SATA3, 2 GbE ports with Intel® i210-AT, 500W RPS
| Form Factor | 1U Rackmount |
| Processor | Single socket H4 (LGA 1151) Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors CPU TDP up to 80W |
| Chipset | Intel® C236 chipset |
| Memory | 4 DIMM slots Up to 64 ECC UDIMM up to 2400/2133/1866/1600MHz ECC DDR4 SDRAM |
| Hard Drive | 4 Hot-swap 3.5" SATA3 drive bays |
| Raid Controller | SATA3 (6Gbps) via C236 controller RAID 0, 1, 5, 10 support |
| Ethernet | Dual Intel® I210-AT Gigabit Ethernet LAN ports |
| Remote Management | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Expansion Slots | 1 PCI-E 3.0 x16 Left Riser Slot, 1 PCI-E 3.0 x4 (in x16 slot) M.2 Interface: PCI-E 3.0 x4 and SATA |
| Power Supply | 500W Redundant Platinum Power Supplies |
