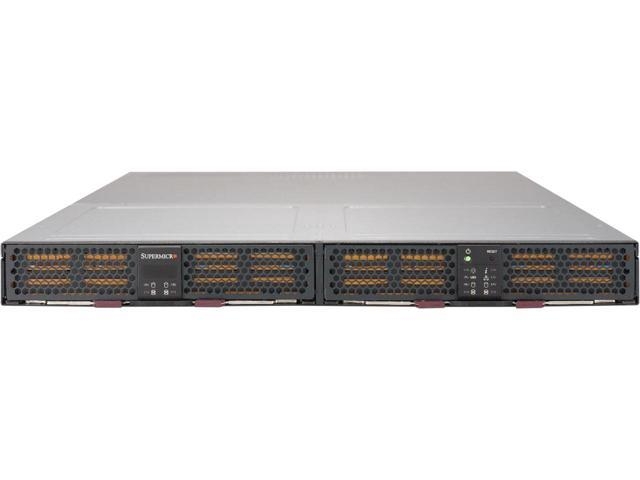

MÁY CHỦ SuperServer 1029P-N32R
- High Throughput Ingest
- High Density Hot Storage
- HPC / Data Analytics
- Media/Video Streaming
- Content Delivery Network (CDN)
- Big Data Top of Rack Storage
1U Rackmount Server, Dual socket P (LGA 3647), 6TB ECC 3DS RDIMM, Intel® X550 Dual Port 10GBase-T, 32 NVMe 2.5" SSDs, 1600W RPS
| Form Factor | 1U Rackmount |
| Processor | Dual Socket P (LGA 3647) 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)‡ 3 UPI up to 10.4GT/s Support CPU TDP 140W |
| Chipset | Intel® C627 chipset |
| Memory | 24 DIMM slots Up to 6TB ECC 3DS RDIMM Supports Intel® Optane™ DCPMM†† DDR4 up to 2933†/2666/2400/2133MHz ECC DDR4 RDIMM |
| Hard Drive | Dual Drawer/Tray with a total of 32 NVMe 2.5" SSDs |
| Raid Controller | - |
| Ethernet | Intel® X550 Dual Port 10GBase-T |
| Remote Management | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Expansion Slots | 2 PCI-E 3.0 x16 Low-profile slots M.2 Interface: 2 PCI-E 3.0 x2, RAID 0, 1 M.2 Form Factor: 2260/2280/22110 M.2 Key: M-Key |
| Power Supply | 1600W Redundant Power Supply Platinum Level Certified |
