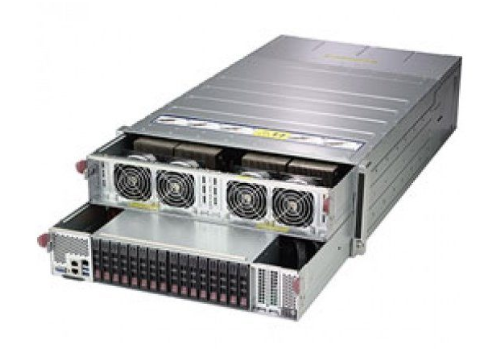

MÁY CHỦ SuperServer 4029GP-TVRT
Key Features SuperServer 4029GP-TVRT
1. Dual socket P (LGA 3647) supports
Intel® Xeon® Scalable Processors,
3 UPI up to 10.4GT/s
2. Up to 3TB ECC 3DS LRDIMM, up to
DDR4-2666MHz; 24 DIMM slots
3. 4 PCI-E 3.0 x16 (LP)
(GPU tray for GPUDirect RDMA),
2 PCI-E 3.0 x16 (LP, CPU tray) or
up to 8x 2.5" NVMe Storage Devices
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
4. Support 8 Tesla V100 with
300GB/s NVLINK
5. Dual 10GBase-T LAN with Intel® X540
6. 16 Hot-swap 2.5" SAS/SATA drives;
Supports 8 NVMe drives
7. 8x 92mm cooling fans
8. 2200W Redundant (2+2) Power
Supplies; Titanium Level (96%+)
Product SKUs
SYS-4029GP-TVRT: SuperServer 4029GP-TVRT (Black)
Motherboard
Super X11DGO-T
Processor/Cache
CPU
• Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors,
3 UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores
• Up to 28 Cores with Intel® HT Technology
GPU Support
• NVIDIA Tesla V100 SXM2 GPU
System Memory
Memory Capacity
• 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type: 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset: Intel® C621 chipset
SATA: SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
• Dual Port 10GBase-T from Intel X550 Ethernet Controller
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
• ASPEED AST2500 BMC
Input / Output
SATA
• 8 SATA3 (6Gbps) ports
LAN
• 2 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB
• 2 USB 3.0 ports (front)
Video
• 1 VGA Connector
COM Port
• 1 COM port (header)
System BIOS
BIOS Type
• AMI 32Mb SPI Flash ROM
BIOS Features
• Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM, SPM, SUM
• SuperDoctor® 5
• Watchdog
Chassis
Form Factor
• 4U Rackmountable
• Rackmount Kit (MCP-290-00057-0N)
Model
• CSE-R422BG-1
Dimensions
Height: 7.0" (178mm)
Width: 17.6" (447mm)
Depth: 31.7" (805mm)
Weight: Net Weight: 80 lbs (36.2 kg)
• Gross Weight: 135 lbs (61.2 kg)
Available Colors
• Black
Drive Bays
Hot-swap
• 16 Hot-swap 2.5" SAS/SATA drive bays
Expansion Slots
PCI-Express
• 4 PCI-E 3.0 x16 (LP, GPU tray for GPUDirect RDMA) slots
• 2 PCI-E 3.0 x16 (LP, CPU tray) slots
Backplane
16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5" SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
System Cooling
Fans
• 8x 92mm Cooling Fans
• 4x 80mm Cooling Fans
Power Supply
2200W Redundant Titanium Level Power Supplies with PMBus
Total Output Power
• 1200W/1800W/1980W/2090W/2200W
(UL/cUL only)
Dimension (W x H x L)
• 106.5 x 82.4 x 203.5 mm
Input
• 1200W: 100-127 Vac / 14-11 A / 50-60 Hz
• 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
• 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz
• 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz
• 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only)
• 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only)
• 2090W: 230-240 Vdc / 10-9.8 A (CCC only)
+12V
• Max: 100A / Min: 0A (1200W)
• Max: 150A / Min: 0A (1800W)
• Max: 165A / Min: 0A (1980W)
• Max: 174.17A / Min: 0A (2090W)
• Max: 183.3A / Min: 0A (2200W)
• Max: 174.17A / Min: 0A (2090W)
12Vsb
• Max: 2A / Min: 0A
Output Type
• Gold Finger (connector on M/P)
PARTS LIST - (ITEMS INCLUDED)
Part Number |
Qty |
Description |
|
| Motherboard / Chassis | MBD-X11DGO-T |
1 |
Super X11DGO-T Motherboard |
| Backplane | BPN-MB-R422 | 1 | Pascal 4U midplane, 2U Pascal node on top, and 2U CPU node on bottom. Support 8x fan/power module at rear side.,RoHS |
| Backplane | BPN-SAS3-213A-N8 | 1 | 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices |
| Cable 1 | CBL-0174L | 4 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH |
| Cable 2 | CBL-PWEX-0979 | 3 | 2X4F/GPU-White/P4.2 to TWO 1X4F/P5.08, (5,12V),48/51CM,18AWG |
| Cable 3 | CBL-SAST-0550 | 2 | MINI SAS HD,12G,INT,25CM,30AWG |
| Cable 4 | CBL-SAST-0934-12 | 4 | Oculink-Oculink X8 Cable 50cm 34AWG,RoHS |
| Cable 5 | CBL-SAST-0935-12 | 4 | Oculink-Oculink X8 Cable 60cm 34AWG,RoHS |
| Parts | MCP-220-42204-0N-PACK | 1 | Single pack R422BG 2U GPU tray (2U, 8 Pascal / Volta GPU),Ro |
| Power Supply | PWS-2K21A-2R | 4 | 2U 2200W 90-264VAC/47-63Hz, or wide DC input 180Vdc~300Vdc, |
| Power Supply | PWS-DF004-1F | 4 | 12Vdc input redundant FAN module power supports I2C function |
| Heatsink / Retention | SNK-P0068APS4 | 2 | 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform |
| Heatsink / Retention | SNK-P4003P | 8 | 2U Passive GPU Heat Sink for NVIDIA Pascal and Volta GPUs in SYS-4028GR-TXR/TXRT Series Servers |
