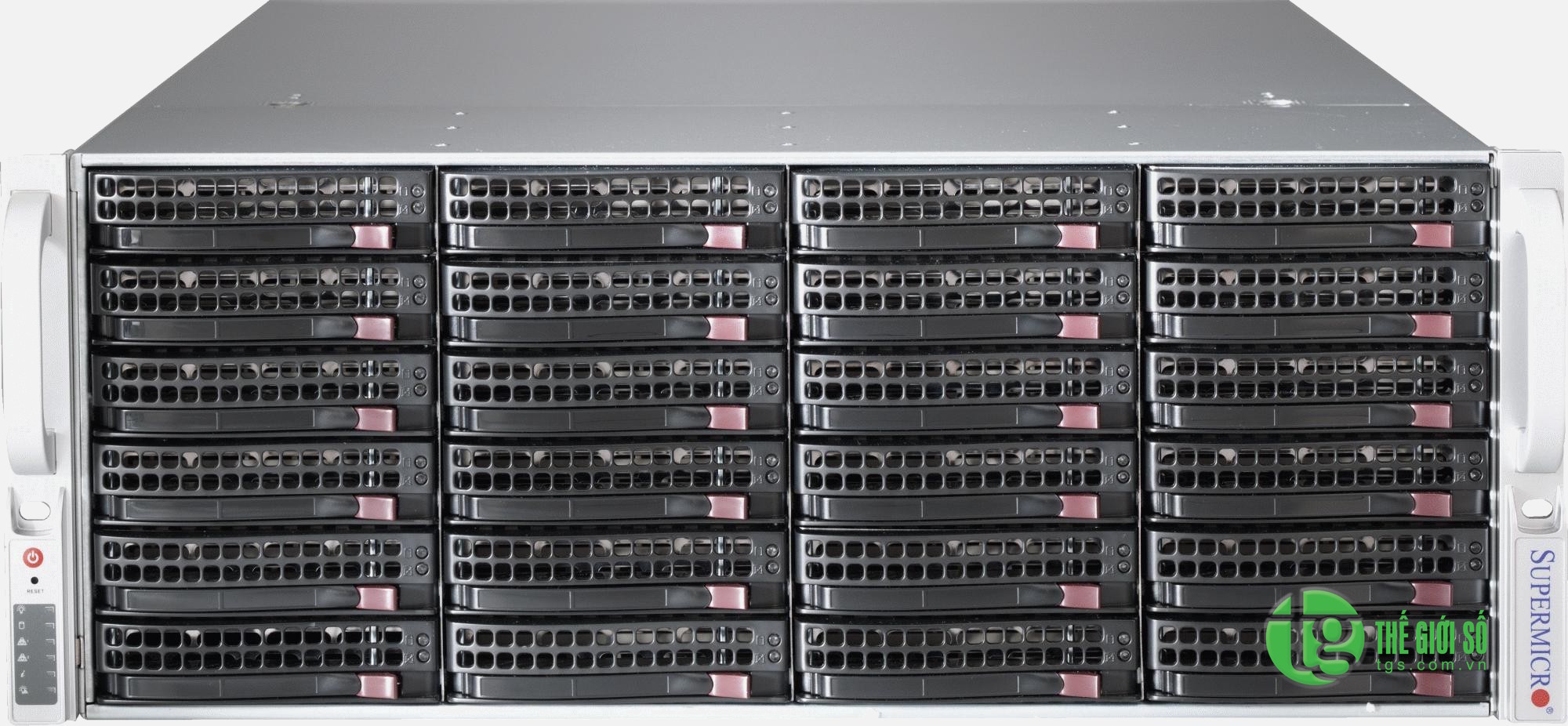

Supermicro SuperStorage Server SSG-6048R-E1CR24N


Số lượng:
Giá bán: 0 VND

Supermicro SuperStorage Server SSG-6048R-E1CR24N CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES Supermicro SuperStorage Server SSG-6048R-E1CR24N

1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3
family; QPI up to 9.6GT/s
2. Up to 1.5TB ECC DDR4 2133MHz; 24x DIMM slots
3. 2x PCI-E 3.0 x16, 3x PCI-E 3.0 x8 Slot 3 &4 occupied by controller
and JBOD expansion port
4. Quad 10GBase-T LAN w/ Intel® X540
5. 24x 3.5" Hot-swap SAS3 (with LSI expander) / SATA3 drive bays; 2x 2.5"
optional Hot-swap drive bays (rear)
6. SAS3 via LSI 3108 AOC (HW RAID)
7. Server remote management: IPMI 2.0/ KVM over LAN / Media over LAN
8. 2x 80mm hot-swap rear exhaust PWM fans
9. 920W Redundant Power Supplies Platinum Level (94%)

Product SKUs

SSG-6048R-E1CR24N SuperServer 6048R-E1CR24N (Black)

Chassis

Form Factor 3U Rackmount
Model CSE-836BE1C-R920B

Integrated Board

Super X10DRi-T4+

Processor/Cache

CPU Intel® Xeon® processor E5-2600 v3 family (up to 160W TDP) *
Dual Socket R3 (LGA 2011)
Cache Up to 18 Cores / Up to 45MB Cache
System Bus QPI up to 9.6 GT/s

System Memory

Memory Capacity 24x 288-pin DDR4 DIMM slots
Up to 1.5TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes 64GB, 32GB, 16GB, 8GB, 4GB
Error Detection Corrects single-bit errors

On-Board Devices

Chipset Intel® C612 chipset
SAS LSI 3108 SAS3 AOC
Hardware RAID 0, 1, 5, 6, 10, 50, 60
SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Connectivity Quad 10GBase-T LAN with Intel® X540 Ethernet Controller
Graphics ASPEED AST2400 BMC

Input / Output

LAN 4x RJ45 10GBase-T LAN ports
1x RJ45 Dedicated IPMI LAN port
USB 3x USB 3.0 ports (2 rear + 1 Type A)
2x USB 2.0 ports (2 rear)
Video 1x VGA Connector
Serial Port 1x Fast UART 16550 port / 1 Header
Expansion Slots
PCI-Express 2x PCI-E 3.0 x16 slots
3x PCI-E 3.0 x8 slots
Slot 3 & 4 occupied by controller and JBOD Expansion Port
Drive Bays
Hot-swap 24x 3.5" Hot-swap SAS3/SATA3 drive bays
Option OS Drive : 2x 2.5" optional rear Hot-swap 2.5" Drive Bays
Power Supply 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
Management

Standard Parts List

  Part Number Qty Description
Motherboard / Chassis MBD-X10DRi-T4+ 1 Super X10DRi-T4+ Motherboard
CSE-846BE1C-R920B 1 3U Chassis
Backplane BPN-SAS3-846EL1 1 SAS 12G single expander backplane, with LSI SAS3 expander, support 24x 3.5
Power Supply PWS-920P-SQ 2 920W 1U Redundant PWS W/ Quiet Mode
Cable 1 CBL-SAST-0531-01 4 Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s [FCI],RoHS/REACH
Cable 2 CBL-PWEX-0645 2 big 4 pin male to big 4 pin female, power extension 15cm, 20AWG,RoHS/REACH
Cable 3 CBL-0296L 3 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Heatsink / Retention SNK-P0048P 1 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Square ILM MB
Heatsink / Retention SNK-P0048AP4 1 2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32
Add On Card AOC-S3108L-H8IR-O-P 1 SAS-3, GEN-3 RAID card. Supports 12Gb and RAID 0, 1, 5, 6, 10, 50, and 60. Includes 2GB memory
Add On Module AOM-SAS3-8I8E-LP 1 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket
