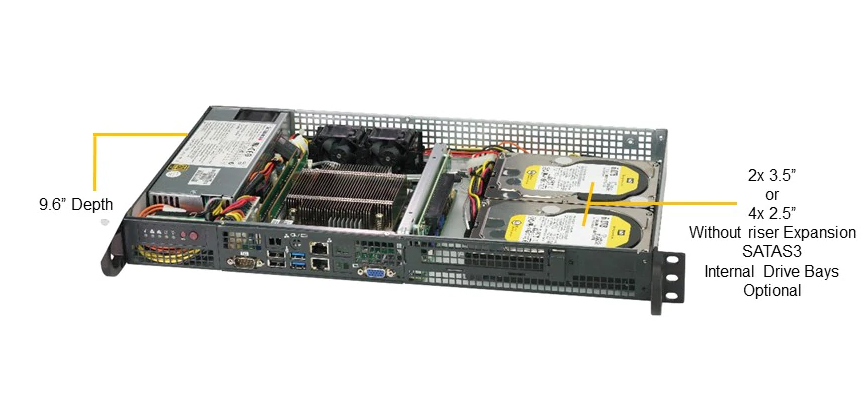

SERVER SuperServer 5019C-FL
• Appliance Server
• Front-end, Web Hosting
• Edge Computing
1U Rackmount Server, Single socket H4 (LGA 1151), 64GB ECC UDIMM, 2 Fixed 3.5" drive bay or 4 Fixed 2.5" drive bays, 2 GbE ports with Intel® i210-AT, 200W
| Form Factor | 1U Rackmount |
| Processor | Single socket H4 (LGA 1151) CPU TDP support up to 95W Support Intel® Xeon® Processor E-2100 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors |
| Chipset | Intel® C242 chipset |
| Memory | 2 DIMM slots Up to 64 ECC UDIMM up to 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM |
| Hard Drive | 2x 3.5" or 4x 2.5" internal drive bays (fixed) |
| Raid Controller | SATA3 (6Gbps) via C242 controller RAID 0, 1, 5, 10 support |
| Ethernet | Dual Intel® I210-AT Gigabit Ethernet LAN ports |
| Remote Management | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Expansion Slots | 1 PCI-E 3.0 x16 M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 2280 M.2 Key: M-Key |
| Power Supply | 200W Multi-output power supply |
