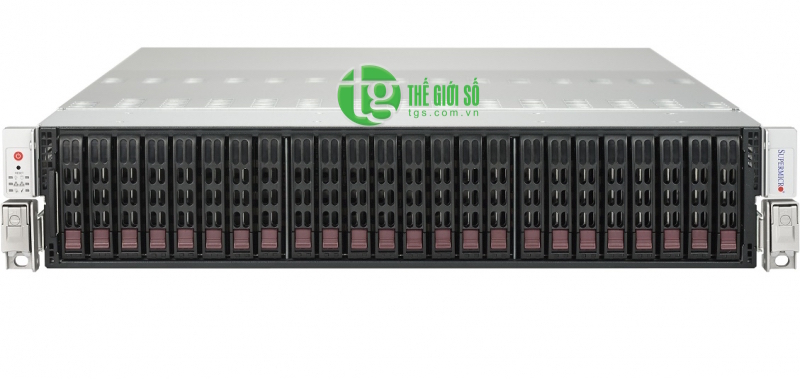

Supermicro SuperStorage Server SSG-2028R-E1CR24N

Số lượng:

Giá bán: 0 VND

Supermicro SuperStorage Server SSG-2028R-E1CR24N CHÍNH HÃNG, GIÁ RẺ TẠI Việt Máy Chủ

KEY FEATURES Supermicro SuperStorage Server SSG-2028R-E1CR24N

1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3
family; QPI up to 9.6GT/s
2. Up to 1.5TB ECC DDR4 2133MHz; 24x DIMM slots
3. 2 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (Slot 3 & 4 occupied by controller
and JBOD expansion port)
4. Quad LAN w/ Intel® X540 10GBase-T
5. 24x 2.5" Hot-swap SAS3/SATA3 drive bays
6. Hardware RAID controller and JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 3x 8cm hot-swap redundant PWM fans
9. 920W Redundant Power Supplies Platinum Level (94%)

Product SKUs
SSG-2028R-E1CR24N	SuperServer 2028R-E1CR24N (Black)
Chassis
Form Factor	2U Rackmount
Model	CSE-216BE1C-R920LPB
Integrated Board
Super X10DRi-T4+
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v3 family (up to 160W TDP) * Dual Socket R3 (LGA 2011)
Cache	Up to 18 Cores / Up to 45MB Cache
System Bus	QPI up to 9.6 GT/s
System Memory
Memory Capacity	24x 288-pin DDR4 DIMM slots Up to 1.5TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	64GB, 32GB, 16GB, 8GB, 4GB
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C612 chipset
SAS	LSI 3108 SAS3 AOC Hardware RAID 0, 1, 5, 6, 10, 50, 60
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Connectivity	Quad 10GBase-T LAN with Intel® X540 Ethernet Controller
Graphics	ASPEED AST2400 BMC
Input / Output
LAN	4x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB 3.0 ports (rear) 2x USB 2.0 ports (rear) 1x Type A
Video	1x VGA Connector
Serial Port	1x Fast UART 16550 port / 1 Header
Expansion Slots
PCI-Express	2x PCI-E 3.0 x16 slots 3x PCI-E 3.0 x8 slots Slot 3 & 4 occupied by controller and JBOD Expansion Port
Drive Bays
Hot-swap	24x 2.5" Hot-swap SAS3/SATA3 HDD bays
Power Supply	920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
Management
Software	SuperDoctor® 5 Intel® Node Manager 3.0 Watch Dog NMI SMCBU and SMM Optional IPMI 1.5 / 2.0
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
Standard Parts List
	Part Number	Qty	Description
Motherboard / Chassis	MBD-X10DRi-T4+	1	Super X10DRi-T4+ Motherboard
	CSE-216BE1C-R920LPB	1	2U Rackmount
Backplane	BPN-SAS3-216EL1	1	SAS3 12Gb/s single expander backplane, with 24x SAS3 2.5" drive slots and 4x HD mini-SAS3 cable connectors for SAS3 uplink/downlink,RoHS/REACH,PBF
Power Supply	PWS-920P-SQ	2	920W 1U Redundant PWS W/ Quiet Mode
Cable	CBL-SAST-0532	4	Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
Heatsink / Retention	SNK-P0048P	1	2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Square ILM MB
Heatsink / Retention	SNK-P0048AP4	1	2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32
Add On Card	AOC-S3108L-H8IR-O-P	1	SAS-3, GEN-3 RAID card. Supports 12Gb and RAID 0, 1, 5, 6, 10, 50, and 60. Includes 2GB memory
Drive Tray(s)	MCP-220-00047-0B	24	Black 3rd Gen hot-swap 2.5" HDD tray
Add On Module	AOM-SAS3-8I8E-LP	1	8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket
